AD-4212A/B (Copy)

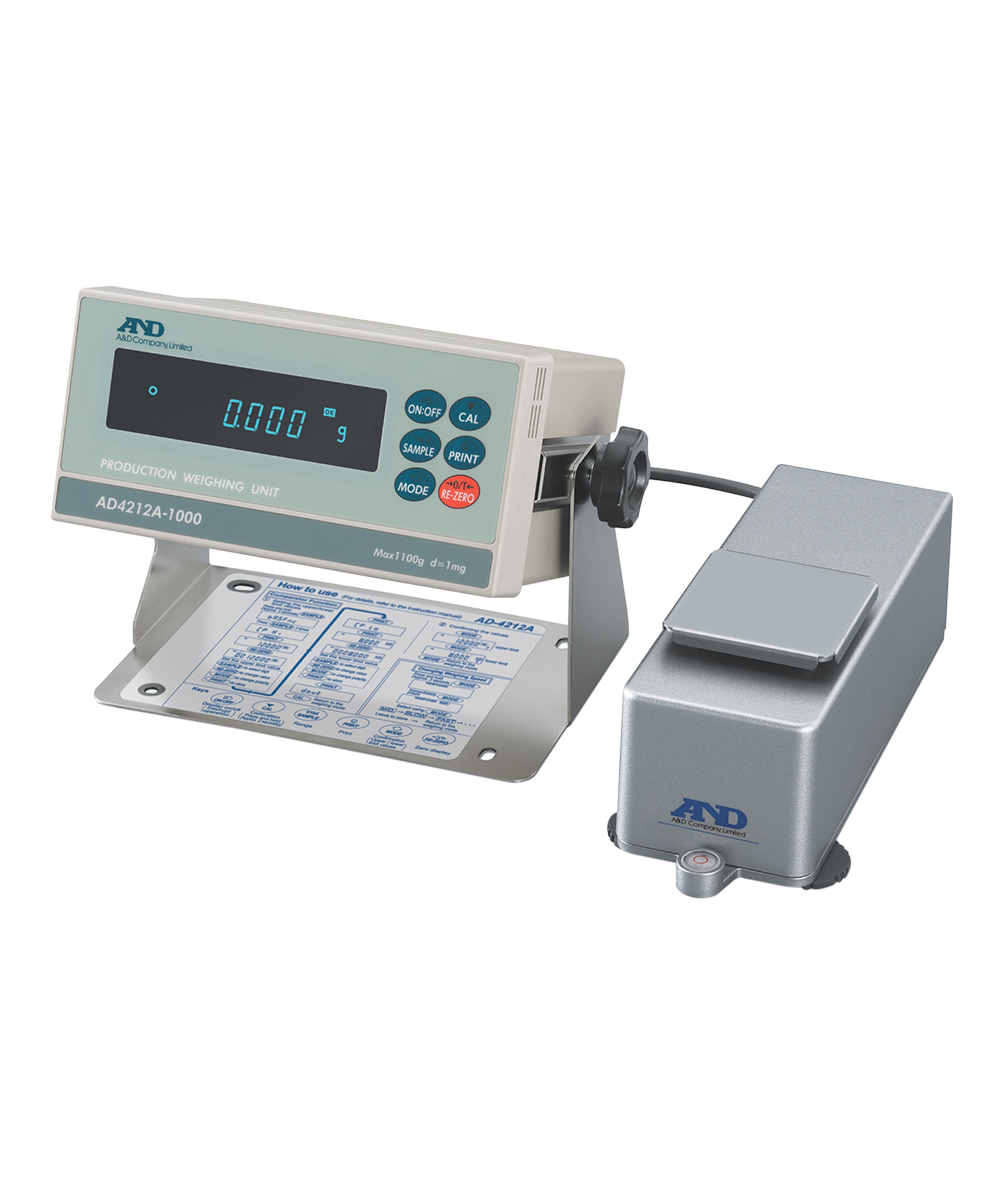

The AD-4212A/B series of A&D’s production-line balances is not only suitable for building extremely sensitive weighing systems, but it is also fast and surprising affordable.
Highlights
Features
Downloads
For applications such as:

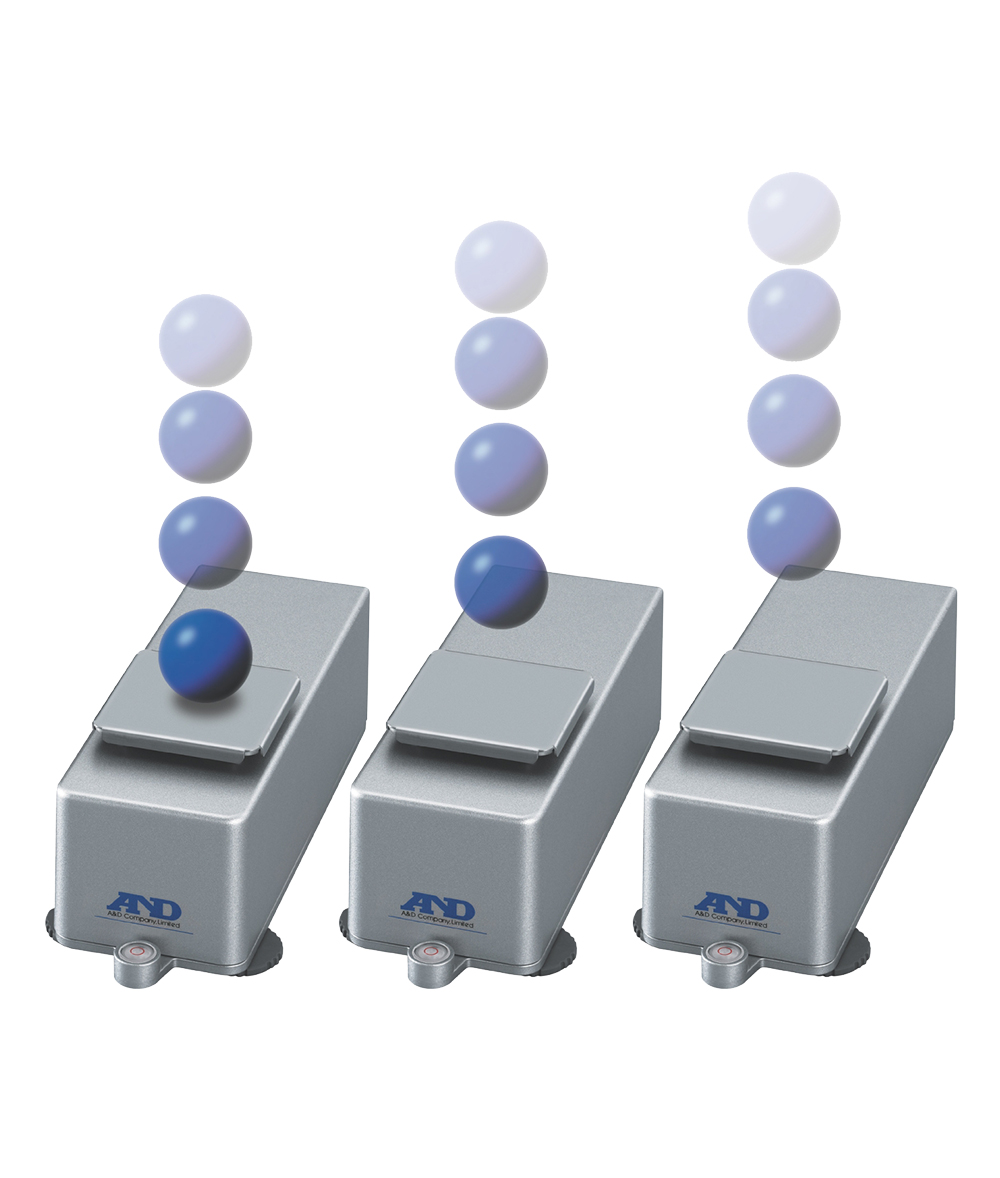

- High-speed weighing
- High-speed check weighing

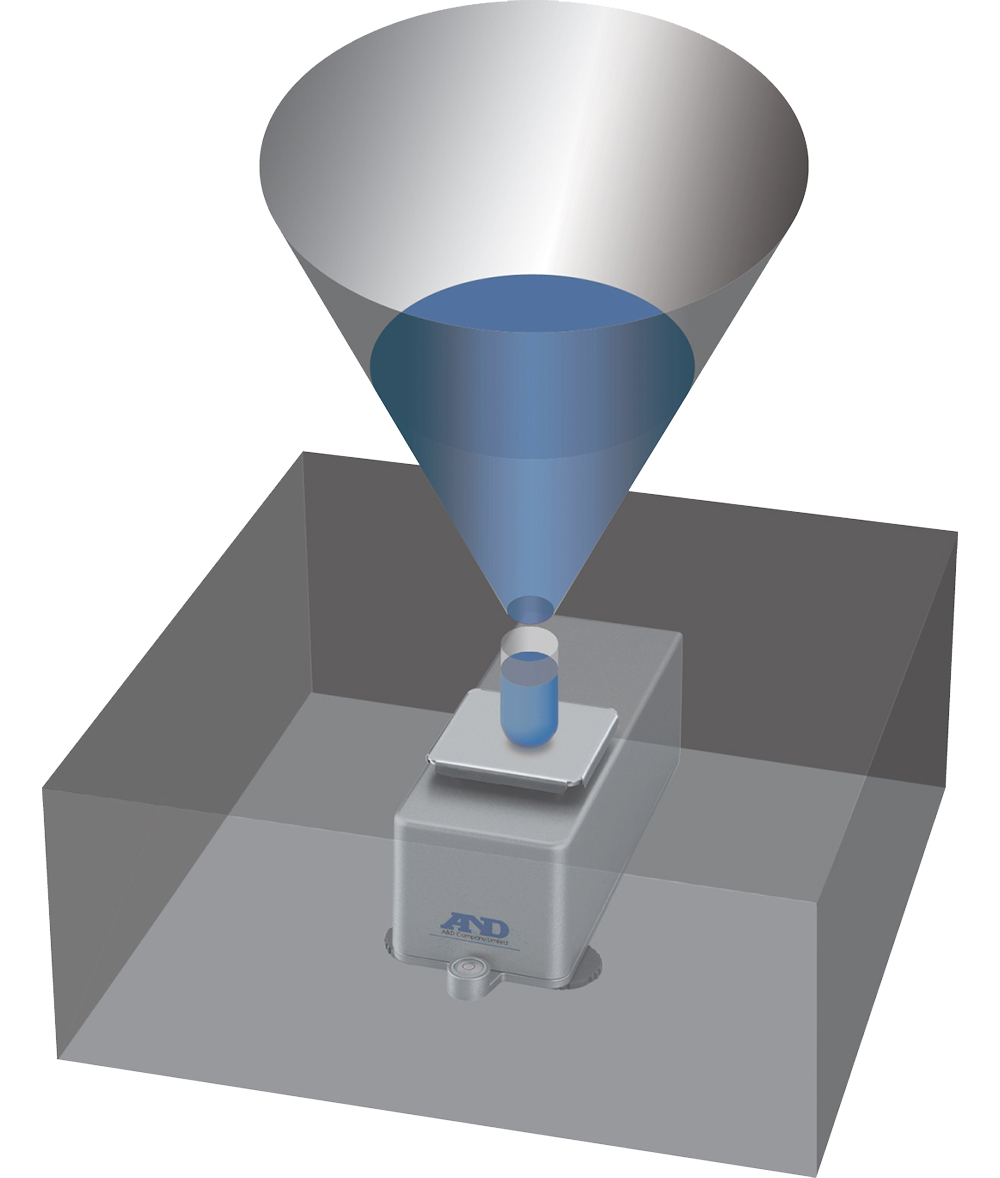

- Filling
- Isolated weighing
Fast, Precise, Compact, Durable
- High resolution and quick stabilization times down to:
- 0.8 second for 1mg AD-4212A models
- 1.1 second for 0.1mg AD-4212A models
- 2.5 seconds for 0.1mg AD-4212B models
- 4 seconds for 0.01mg AD-4212B models
- Possibility to use a weighing pan of your own design for holding special objects
- Standard RS-232C interface
- The AD-4212A offers 3-level comparator with contact output and buzzer
- The AD-4212B offers 5-level comparator with contact output and buzzer
- External digital inputs to trigger actions such as RE-ZERO or PRINT
- Data memory, GLP and GMP compliant
- WinCT: software tool for data acquisition from PC
- Multiple weighing units: g, mg, OZ, Lb, LOZ, Ozt, ct, mom, dwt, GN, TL, t, MS, PCS (counting) and Pct (%)
- 2m connection cable in between sensor and indicator
- Protection against vertical or transverse shocks – patented (AD-4212B)
Highlights
For applications such as:
- High-speed weighing
- High-speed check weighing
- Filling
- Isolated weighing
Fast, Precise, Compact, Durable
- High resolution and quick stabilization times down to:
- 0.8 second for 1mg AD-4212A models
- 1.1 second for 0.1mg AD-4212A models
- 2.5 seconds for 0.1mg AD-4212B models
- 4 seconds for 0.01mg AD-4212B models
- Possibility to use a weighing pan of your own design for holding special objects
- Standard RS-232C interface
- The AD-4212A offers 3-level comparator with contact output and buzzer
- The AD-4212B offers 5-level comparator with contact output and buzzer
- External digital inputs to trigger actions such as RE-ZERO or PRINT
- Data memory, GLP and GMP compliant
- WinCT: software tool for data acquisition from PC
- Multiple weighing units: g, mg, OZ, Lb, LOZ, Ozt, ct, mom, dwt, GN, TL, t, MS, PCS (counting) and Pct (%)
- 2m connection cable in between sensor and indicator
- Protection against vertical or transverse shocks – patented (AD-4212B)
Features
| Model | Capacity | Resolution | Pan Size |
|---|---|---|---|
| AD-4212A-100 | 110g | 0.1mg | 50 × 50mm |
| AD-4212A-200 | 210g | 1mg | 50 × 50mm |
| AD-4212A-600 | 610g | 1mg | 50 × 50mm |
| AD-4212A-1000 | 1100g | 1mg | 70 × 70mm |
| AD-4212B-23 | 21g | 0.001mg | Ø 34mm |
| AD-4212B-101* | 110g/31g | 0.1mg/0.01mg | Ø 34mm |
| AD-4212B-102 | 110g | 0.01mg | Ø 34mm |
| AD-4212B-201 | 210g | 0.1mg | 50 × 50mm |
| AD-4212B-301 | 310g | 0.1mg | 50 × 50mm |
* Smart Range (see icon definition)
| Options & Accessories | Model |
|---|---|
| BCD output/external contact input | AD4212A-OP-01 |
| Comparator output (only AD-4212A) | AD4212A-OP-04 |
| Extension cable 3m | AD4212A-OP-07 |
| Ethernet interface (with application software WinCT-plus in CD-ROM) | AD4212A-OP-08 |
| Stainless steel breeze break (standard for AD-4212A-100 and all B models) | AD4212A-OP-19 |
| Metal levelling foot | AD4212A-OP-20 |
| Static eliminator | AD-1683 |
