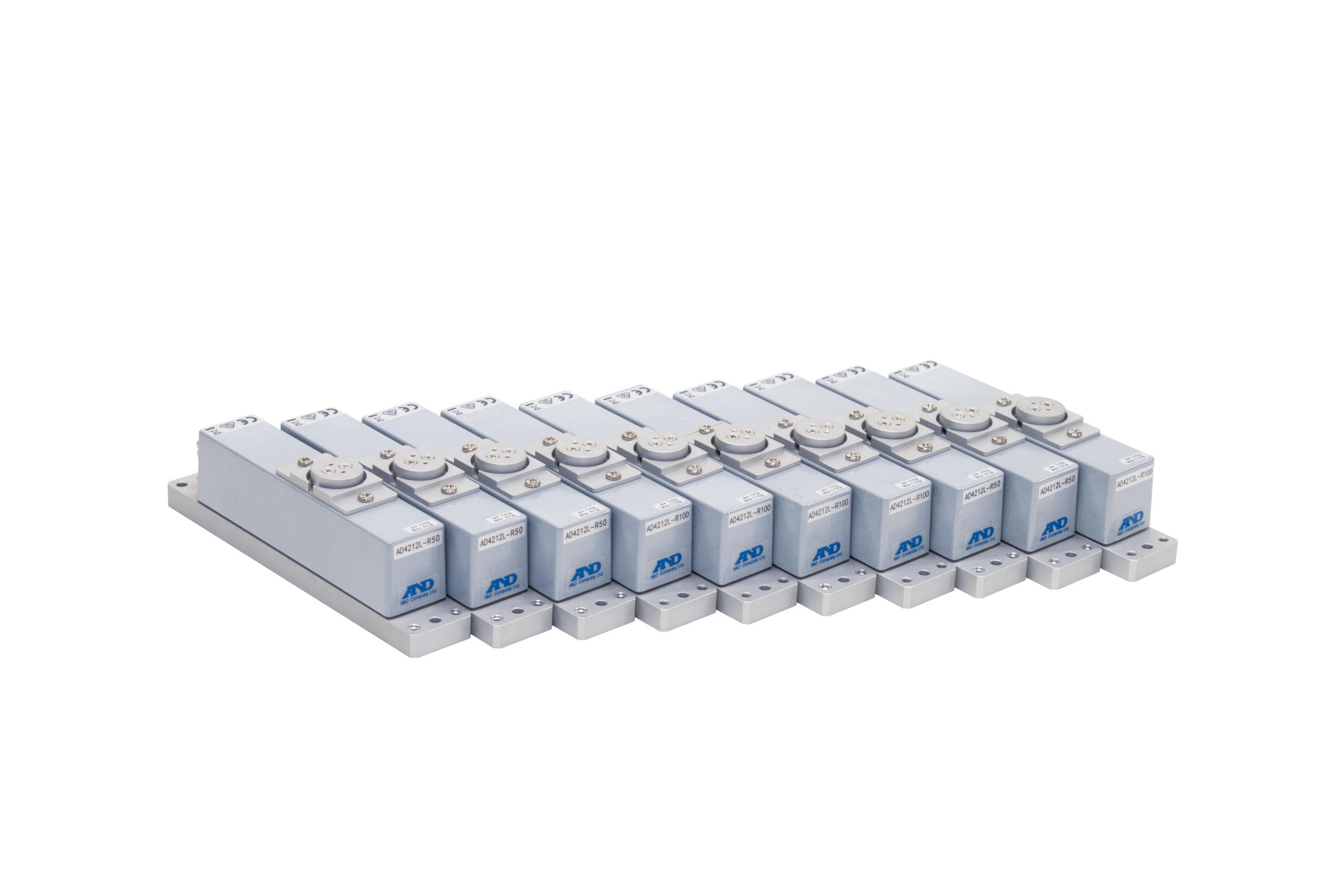

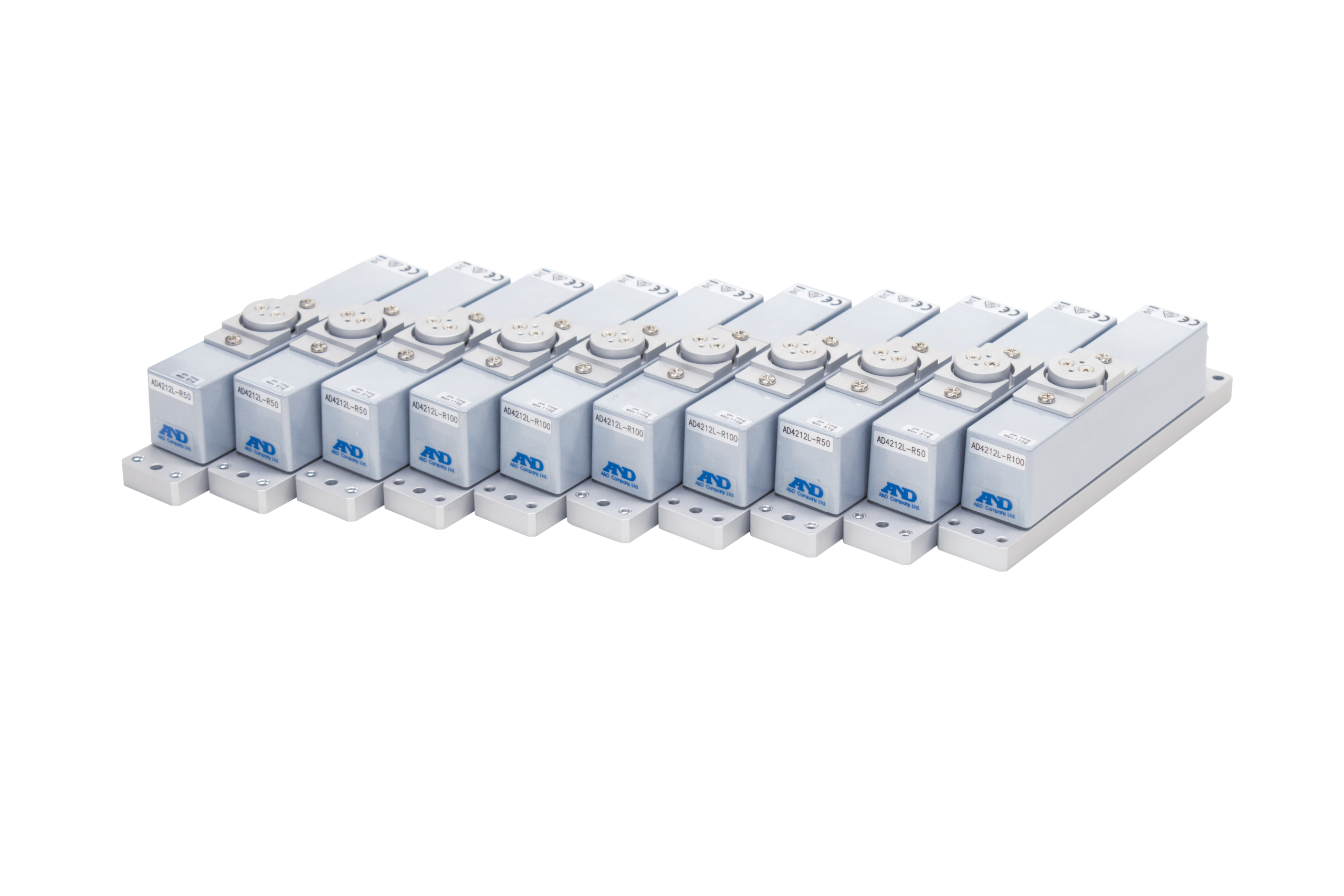

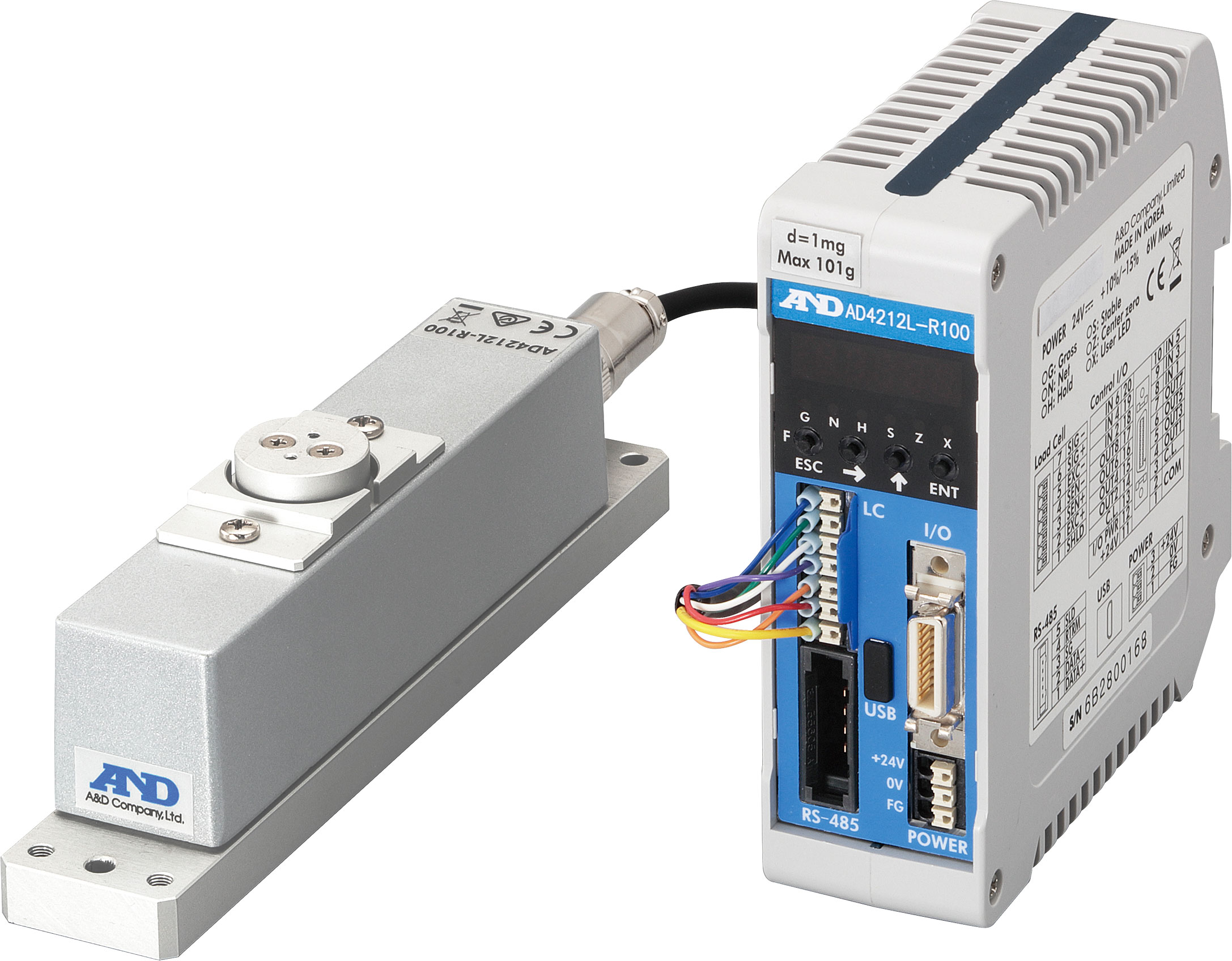

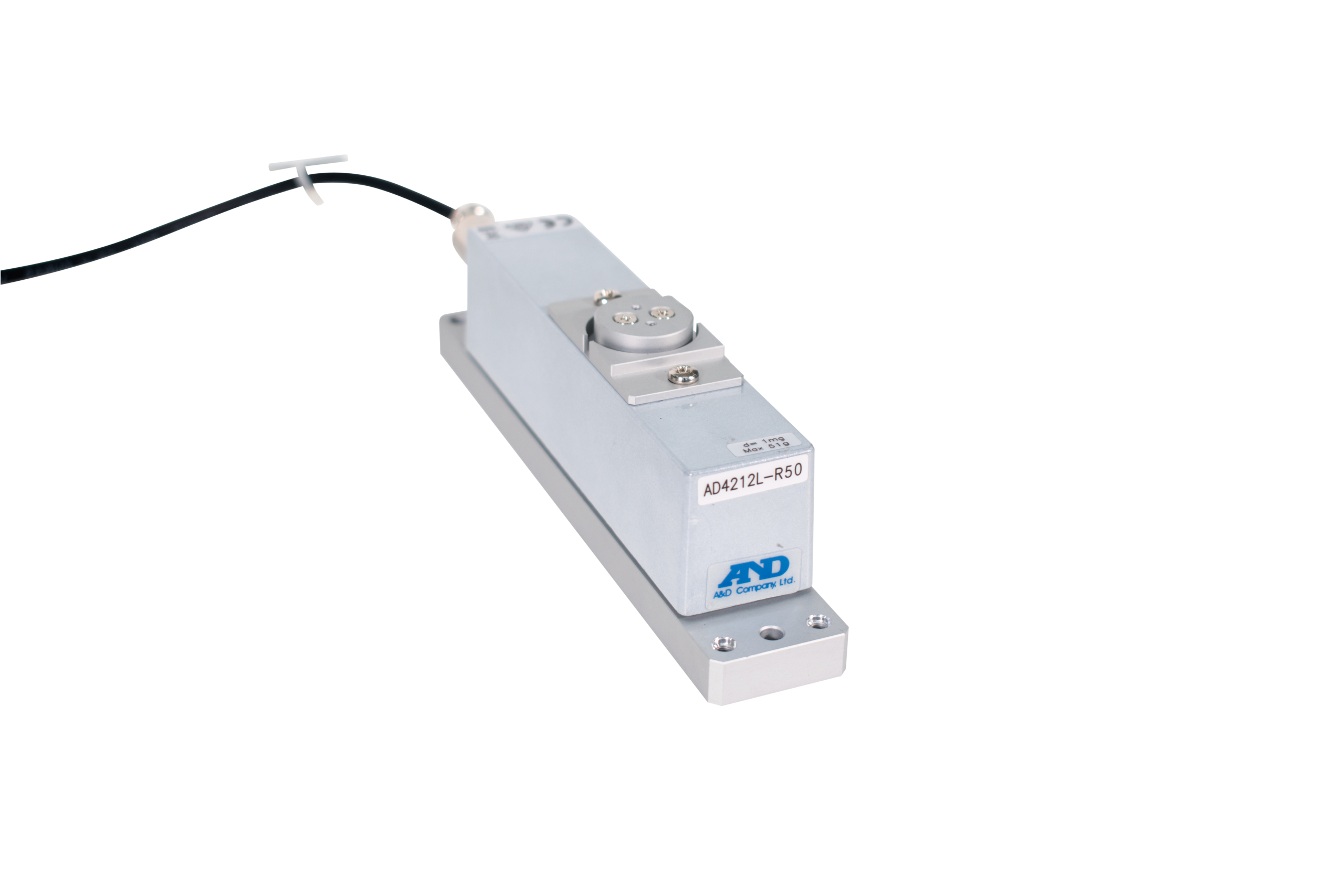

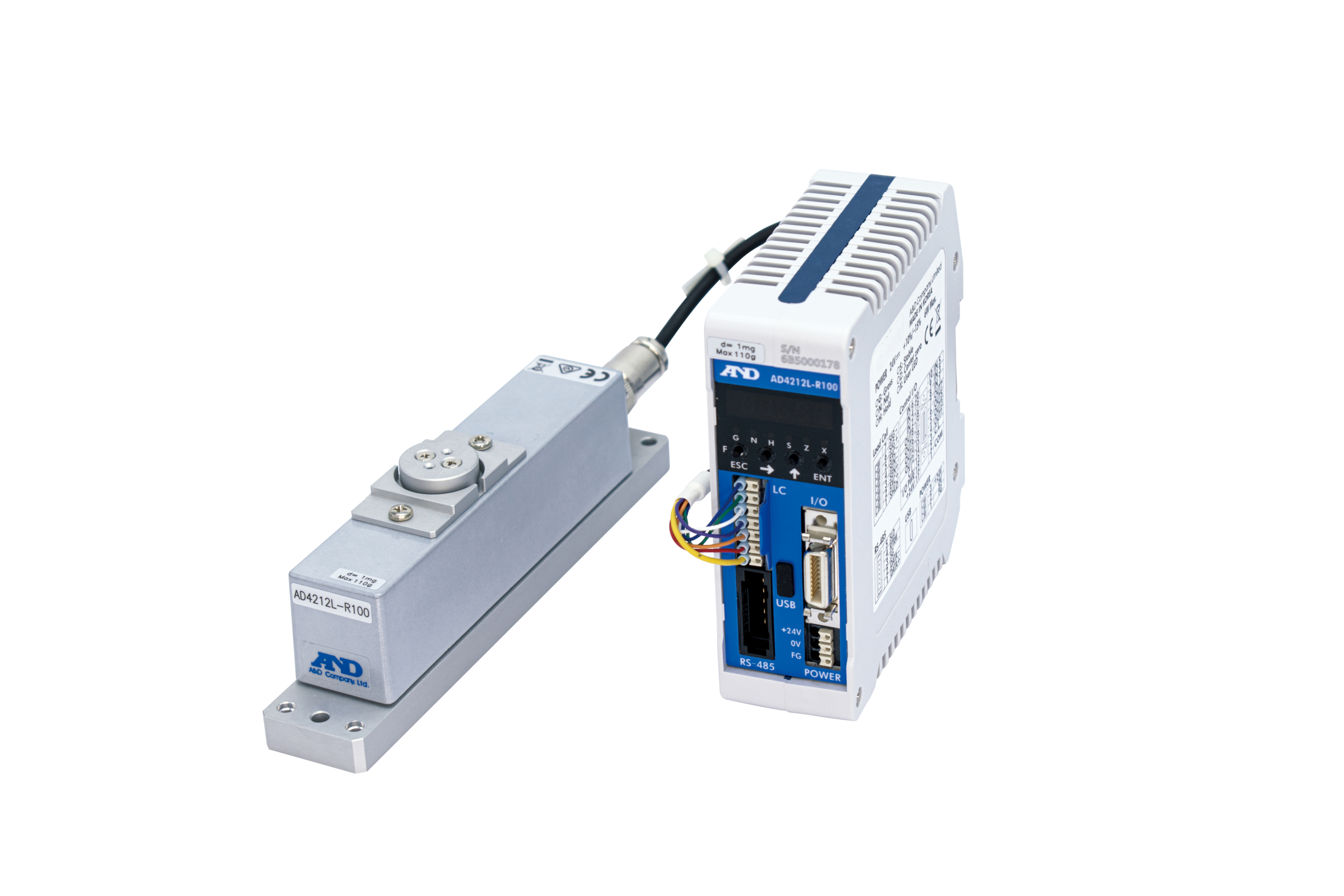

AD-4212L Series Weigh Modules
High Precision Weighing Module for Production Lines
Highlights
Features
Downloads
- Powerful vibration cancelling filter
- Strong overload protection
- High-speed sampling 1000 times per second
- Compact size weighing unit
- Fast response time
- Din rail mounting type display unit
- Weighing sensor equipped with an overload protection mechanism for up, down, left, right, front and rear making it extremely durable.
Highlights
- Powerful vibration cancelling filter
- Strong overload protection
- High-speed sampling 1000 times per second
- Compact size weighing unit
- Fast response time
- Din rail mounting type display unit
- Weighing sensor equipped with an overload protection mechanism for up, down, left, right, front and rear making it extremely durable.
Features
| Model | AD4212L-R50 | AD4212L-R100 |
| Capacity | 51 g | 110 g |
| Minimum weighing value | 0.001 g | |
| Repeatability (Standard deviation) | 0.001 g | 0.002 g |
| Stabilization time (when set to optimum filter under a good environment) | 0 – 5 g 0.3 second 5 – 51 g 1.0 second |
0 – 5 g 0.3 second 5 – 110 g 1.3 second |
| Weighing pan | Ø20.5 mm | |
| Weighing unit external dimensions / weight | 30 (W) x 165 (D) x 56 (H) mm / 400 g | |
| Cable diameter / Length | Ø4.5 mm / 10 m | |
| Ability of the stopper to withstand overload | 1 kg | |
| Allowable moment | 0.015 N m or less | 0.03 N m or less |
| Display unit external dimensions / weight | 35 (W) x 101 (D) x110 (H) mm / 200 g | |
| Power supply | DC 24 V +10 % -15 % | |
| Sampling rate | 1000 times / second | |
| Interface | RS-485 (Modbus-RTU) / USB 2.0 | |
| Control I/O | 6 input / 8 output points | |
| Operating environment | -10 °C to 40 °C 85 %RH or less (No condensation) | |
| Standard accessories | RS-485 connector (2 pcs), Branch connector (1 pcs) Leveling feet (3 pcs) |
|
