AD-4532B Digital Indicator for Strain Gauge Sensors
Super high-speed sampling at 2000 times/sec.
Ideal for measuring the dynamic phenomena of loads, pressure, torque, tension, etc.
Highlights
Features
Downloads

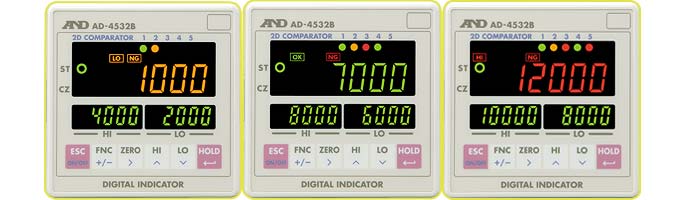

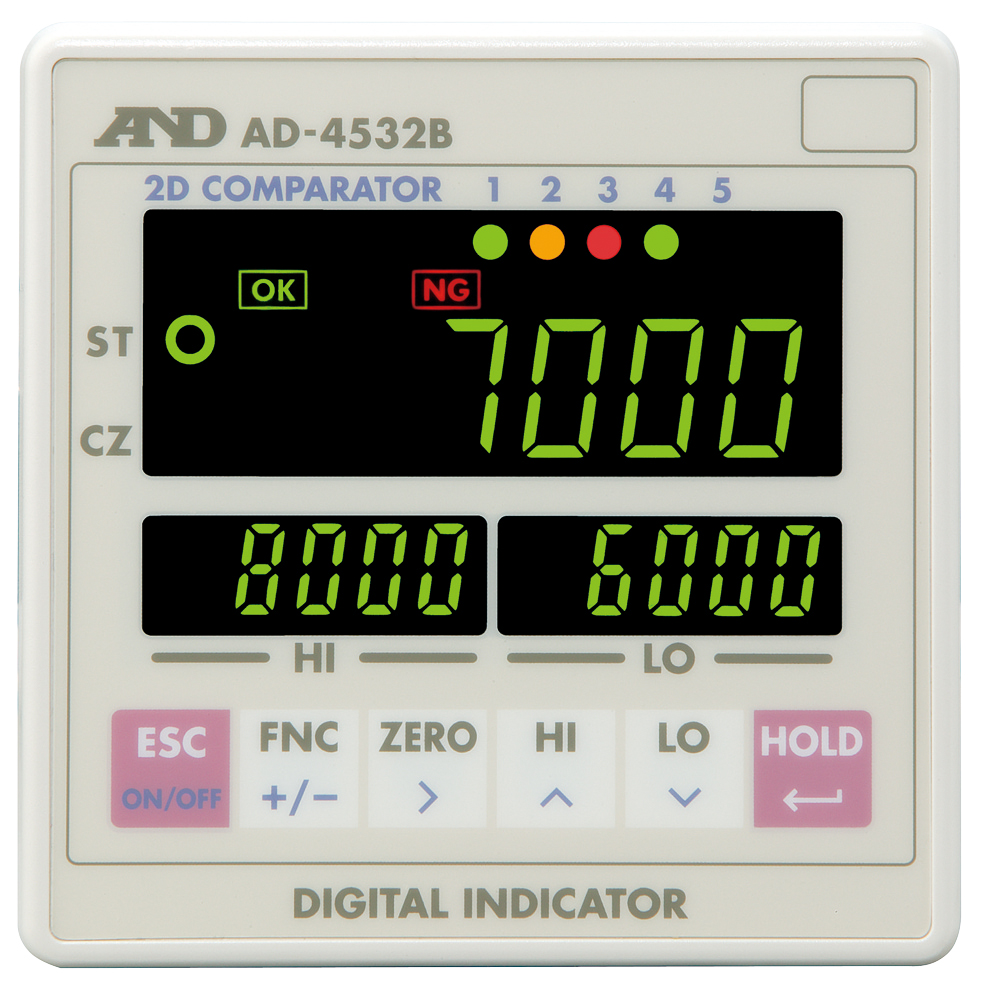

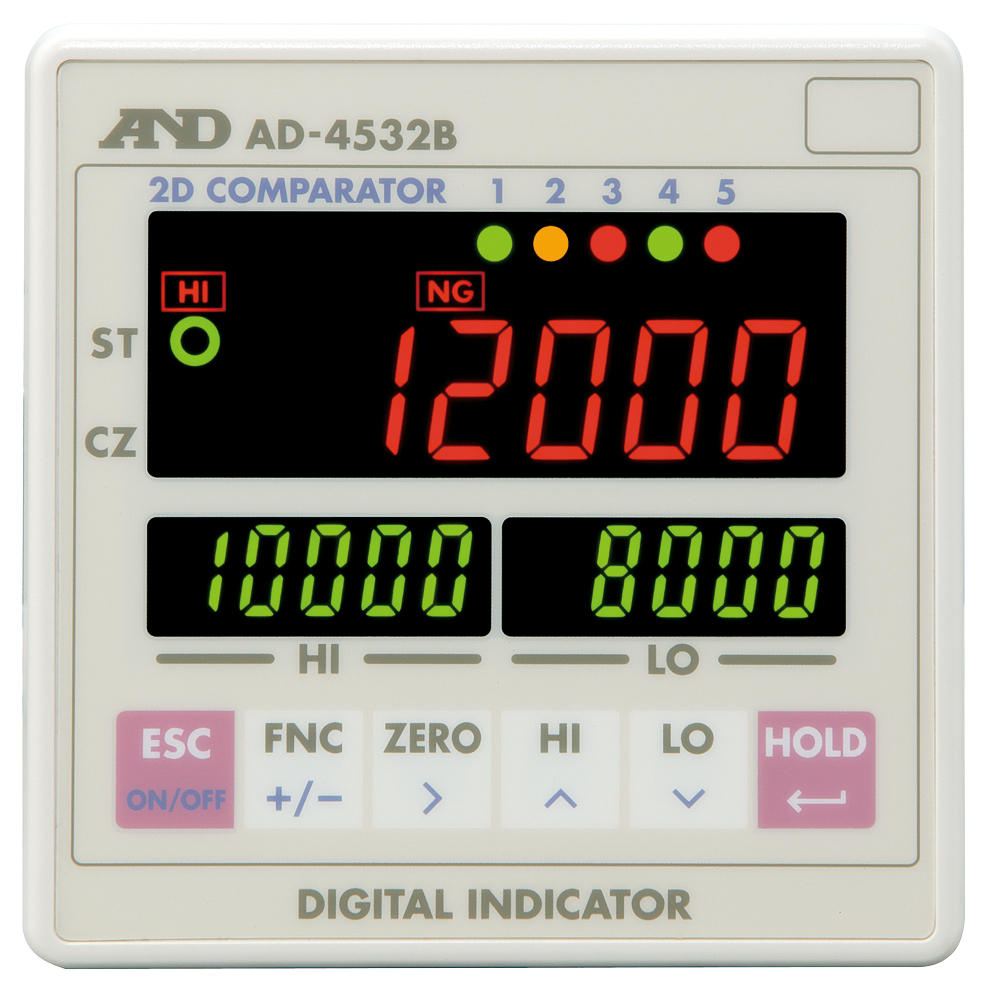

- New Tricolor (Orange, Green & Red) LED Display
Highly visible easy-to-read display
- Enhanced comparator functions

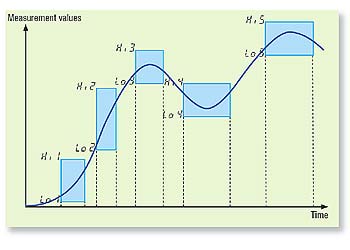

In addition to a simple comparison of the upper/lower limit, the AD-4532B is equipped with a 2D comparator function that shifts between the upper/lower limit in five levels using a time control or an external signal. - 2D (5-level) comparator function
This function makes it possible to determine the acceptability of the total result by performing a sequential comparison while shifting between the upper/lower limit in five levels using a time axis or an external input (trigger).
It is ideal for use in measurements, such as a press-in operation, which require changes in the comparison
value as time elapses.
The five comparators can also be used individually.
- High-speed A/D*1 and D/A*2 conversion function at 2000 times/sec. *1 Analog-to-digital conversion *2 Digital-to-analog conversion
- Calibration without an actual load
The digital span calibration function makes it possible to perform a calibration by entering the rated output (mV/V) of the sensor using the numeric keys. This function is useful when an actual load cannot be applied. - Latching function
The display, the comparator output and the D/A voltage output can be latched (data output hold). - Relay output with a long-life MOSFET relay

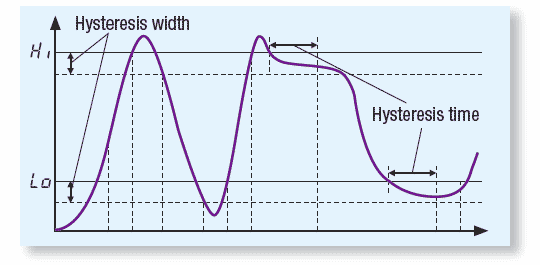

- Chatter-prevention function
If bouncing of the comparator value occurs repeatedly near the upper/lower limit, a heavy burden will be placed on the relay circuit and other parts. To prevent this, the AD-4532B has a function to set the hysteresis width and time.
- Hold Function
The hold mode can be activated using the front panel key, a Modbus-RTU, or the external input terminal on the rear panel.

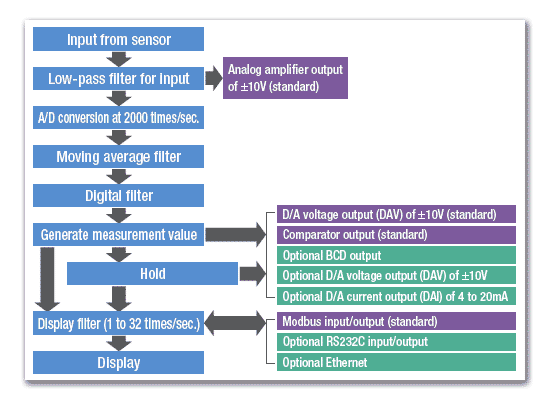

- Wide variety of data input/output

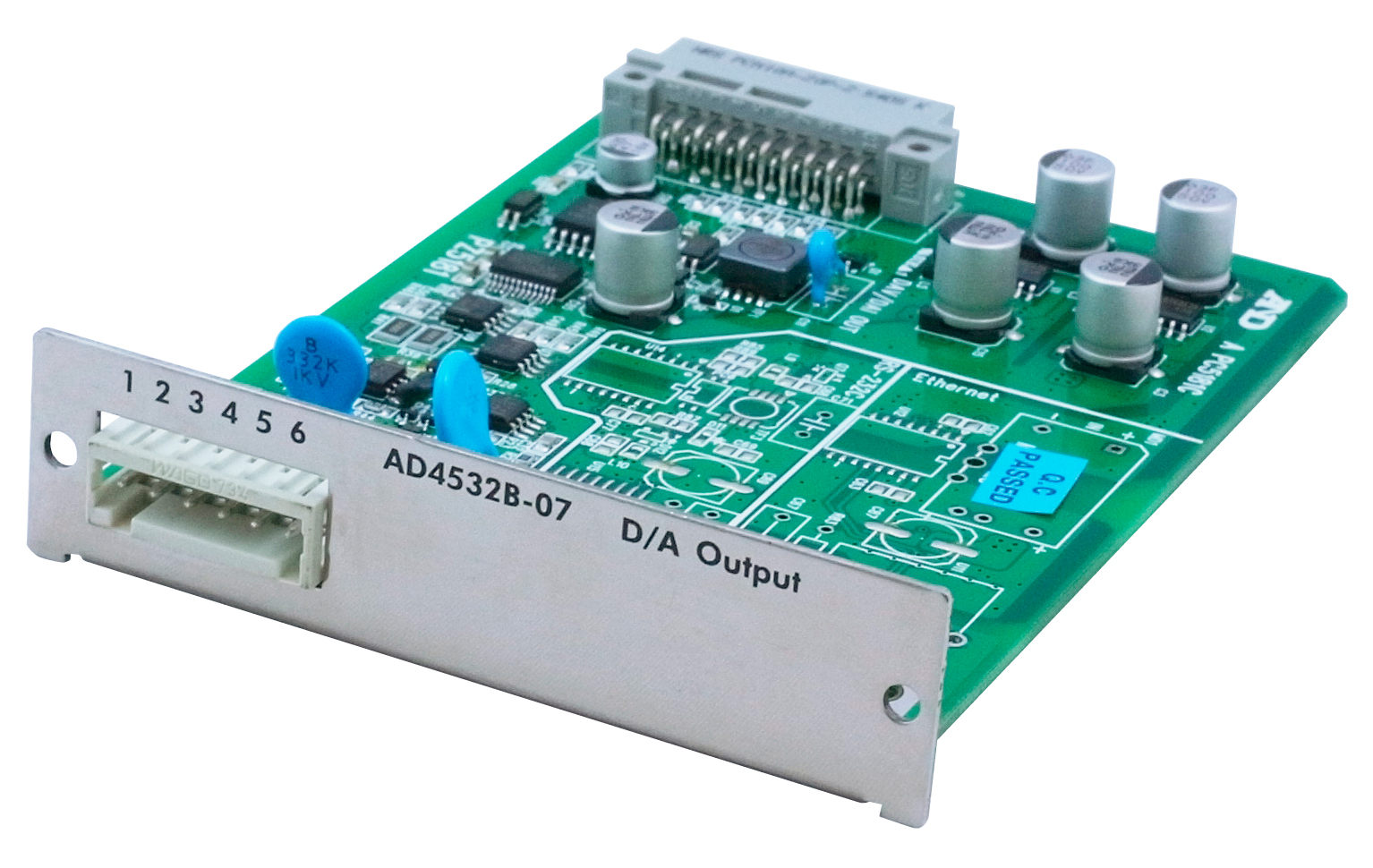

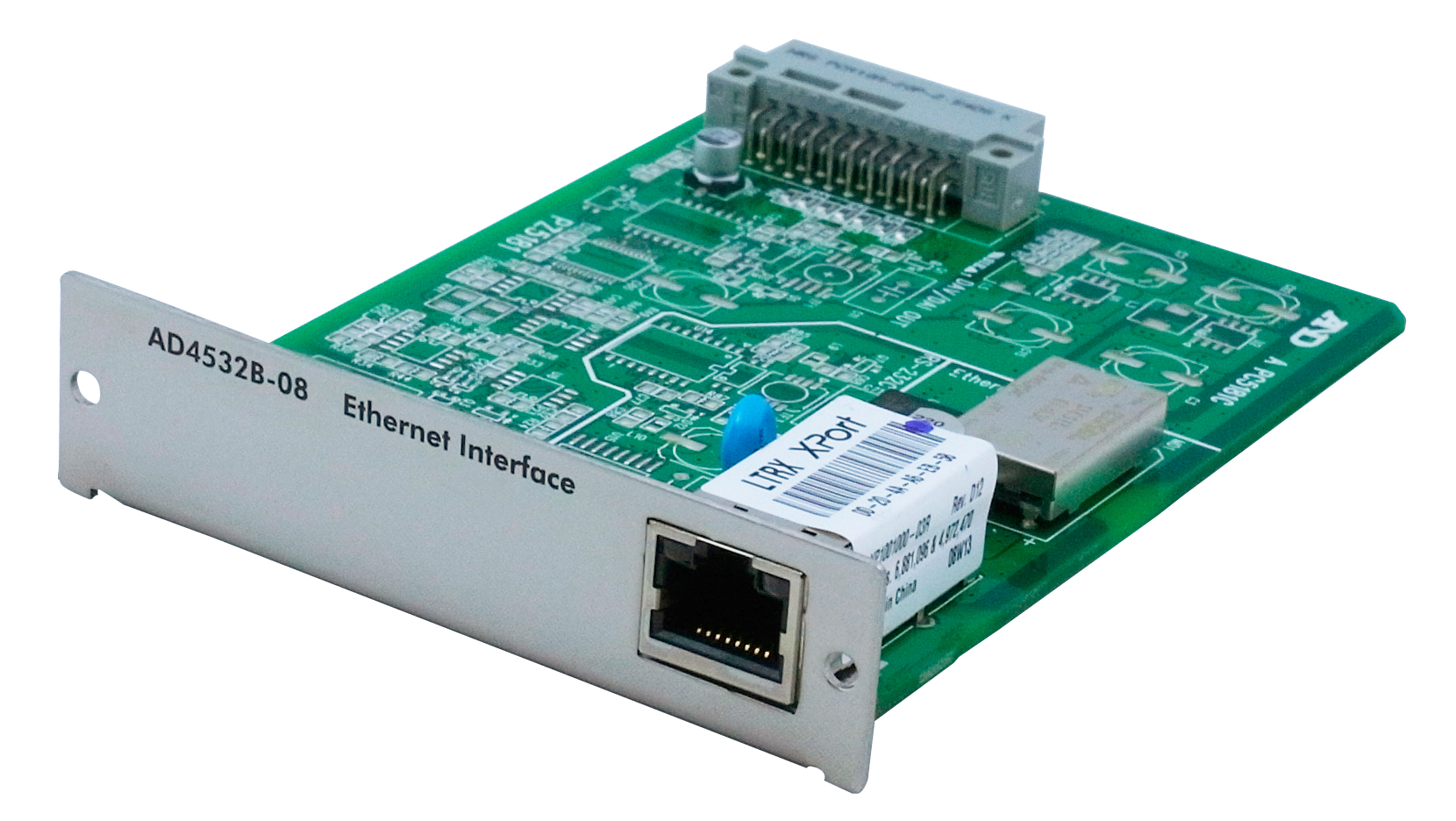

The AD-4532B comes equipped with an analog amplifier voltage output (±10V), a D/A analog voltage output (±10V), a comparator output and a Modbus-RTU input/output. In addition, we offer an optional BCD output, RS-232C input/output, D/A analog voltage/current output (±10V / 4 to 20mA) and Ethernet. The upper/lower limit setting, the zero compensation function and the hold function can be executed via Modbus-RTU.
Highlights
- New Tricolor (Orange, Green & Red) LED Display
Highly visible easy-to-read display
- Enhanced comparator functions
In addition to a simple comparison of the upper/lower limit, the AD-4532B is equipped with a 2D comparator function that shifts between the upper/lower limit in five levels using a time control or an external signal. - 2D (5-level) comparator function
This function makes it possible to determine the acceptability of the total result by performing a sequential comparison while shifting between the upper/lower limit in five levels using a time axis or an external input (trigger).
It is ideal for use in measurements, such as a press-in operation, which require changes in the comparison
value as time elapses.
The five comparators can also be used individually.
- High-speed A/D*1 and D/A*2 conversion function at 2000 times/sec. *1 Analog-to-digital conversion *2 Digital-to-analog conversion
- Calibration without an actual load
The digital span calibration function makes it possible to perform a calibration by entering the rated output (mV/V) of the sensor using the numeric keys. This function is useful when an actual load cannot be applied. - Latching function
The display, the comparator output and the D/A voltage output can be latched (data output hold). - Relay output with a long-life MOSFET relay
- Chatter-prevention function
If bouncing of the comparator value occurs repeatedly near the upper/lower limit, a heavy burden will be placed on the relay circuit and other parts. To prevent this, the AD-4532B has a function to set the hysteresis width and time.
- Hold Function
The hold mode can be activated using the front panel key, a Modbus-RTU, or the external input terminal on the rear panel.
- Wide variety of data input/output
The AD-4532B comes equipped with an analog amplifier voltage output (±10V), a D/A analog voltage output (±10V), a comparator output and a Modbus-RTU input/output. In addition, we offer an optional BCD output, RS-232C input/output, D/A analog voltage/current output (±10V / 4 to 20mA) and Ethernet. The upper/lower limit setting, the zero compensation function and the hold function can be executed via Modbus-RTU.
Features
| Measurement points | 1 |
| Sensor type | Strain gauge sensors (Output resistance: 10kΩ or lower) |
| Sensor power supply | The voltage applied to the bridge can be switched in the function settings. 5V : Up to 4 sensors of 350Ω can be connected. 2.5V : Up to 2 sensors of 120Ω or up to 8 of 350Ω can be connected. |
| Calibration method | Digital span (without actual loading) Calibration with actual load |
| Measurement range | Zero adjustment range : Approx. ±50% of span adjusted value Span adjustment range : ±0.25mV/V to ±3mV/V Minimum guaranteed input sensitivity : 0.6µ V/d Minimum guaranteed display sensitivity : 0.12µ V/d |
| Maximum display | ±999999 |
| Linearity | 0.02% F.S. within ±1 digit |
| Analog-to-digital conversion | 2000 times/sec. |
| Temperature coefficient | Zero : ±0.5µ V/°C (Typ.) Span : ±30ppm/°C (Typ.) |
| Display panel | Measurement data display : 7-segment 6-digit tricolor LED Character size : 14mm 15 Status marks Upper/lower limit indicators : Both with 7-segment 5-digit green LED Character size : 9 mm Number of key switches : 6 |
Functions (Standard)
| Comparator function | Upper/lower limit setting and HI/OK/LO contact output are available. 5-level comparator Contact capacity of 0.1A 250V AC or 0.5A 30V DC Long-life MOSFET relay |

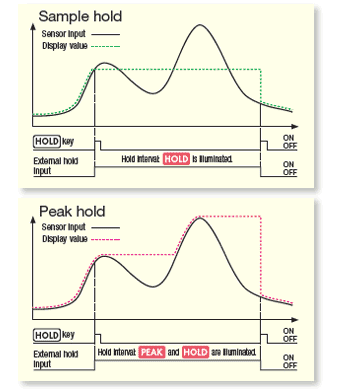

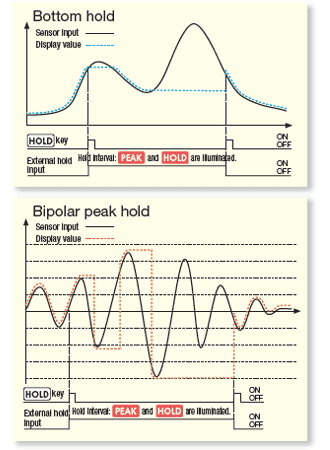

| Hold function | Selectable from Sample hold, Peak hold, Bottom hold and Bipolar hold |
| Analog amplifier output | Output of approx. ±10V at 3.2mV/V (fixed sensitivity) Linearity within 0.05% F. S. Temperature coefficient of 100 ppm/°C (typ.) |
| D/A analog voltage output | Scaling is possible at maximum of ±10V setting. Output resolution of 1/10000 Temperature coefficient of 100 ppm/°C (typ.) |
| Modbus | Modbus-RTU compliant |
| Others | Zero compensation, Key lock and Latching functions |
General specifications
| Power supply | 85 ~ 250V AC, 50/60Hz, Approx. 20VA |
| Weight | Approx. 900g |
| Operating temperature and humidity | -5 ~ 40°C, 85% RH or less (no condensation) |
| External dimensions | 96(W) × 96(H) × 155 (D) mm |
| Panel cut-out dimensions | 92 × 92 mm |
Note: Power cable is necessary.
