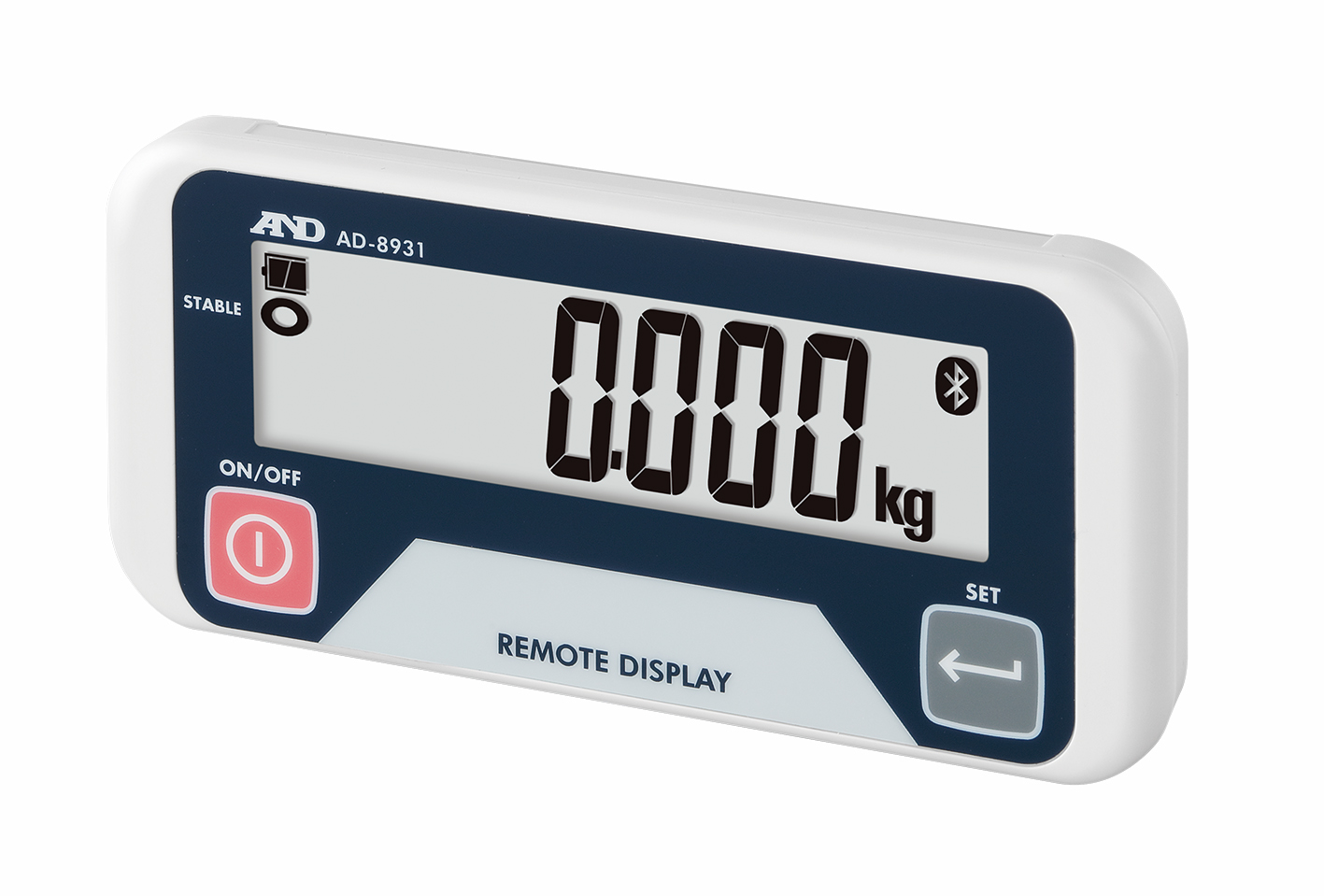

- Wirelessly receives and displays weighing results from a Bluetooth® compatible scale such as the SJ-WP-BT series
- Props to stand on its own and holes so that it can be mounted on a wall to suit your needs
- Runs on either four AAA batteries (for approx. 200 hours with alkaline batteries, backlight off) or a USB power supply.*1
*1 The batteries or USB cable (Micro B) are not included.
Highlights
- Wirelessly receives and displays weighing results from a Bluetooth® compatible scale such as the SJ-WP-BT series
- Props to stand on its own and holes so that it can be mounted on a wall to suit your needs
- Runs on either four AAA batteries (for approx. 200 hours with alkaline batteries, backlight off) or a USB power supply.*1
*1 The batteries or USB cable (Micro B) are not included.
Features
| Display | 7 segment LCD with backlight (character height: 26 mm) |
| Display refresh rate | Approx. 10 times / second*i |
| Displayable units of measure*ii | g (gram), kg (kilogram), lb (pound), oz (ounce), ozt (troy ounce), tl (tael), t (tola), pcs (counting mode), N (Newton) |
| Operating environment | –10 to 40 ˚C / 14 to 104 ˚F, 85% R.H. or less (no condensation) |
| Power supply | Four AAA batteries (R03 / LR03) or USB (5 V / 50 mA) |
| Battery life*iii | Approx. 200 hours (with backlight OFF) Approx. 100 hours (with backlight always ON) |
| Communication range | Max. 10 m (line of sight) |
| Wireless communication module | EYSHCNZXZ (TAIYO YUDEN CO., LTD.) Bluetooth® 4.2 (Bluetooth® Low Energy) |
| External dimensions | 160 (W) × 74 (D) × 25 (H) mm |
| Net weight | Approx. 160 g (excluding batteries) |
*i When the scale transmits weighing data at 10 times / second
*ii For other units of measure, ▶ is displayed.
*iii Four AAA alkaline batteries at 25 ˚C
