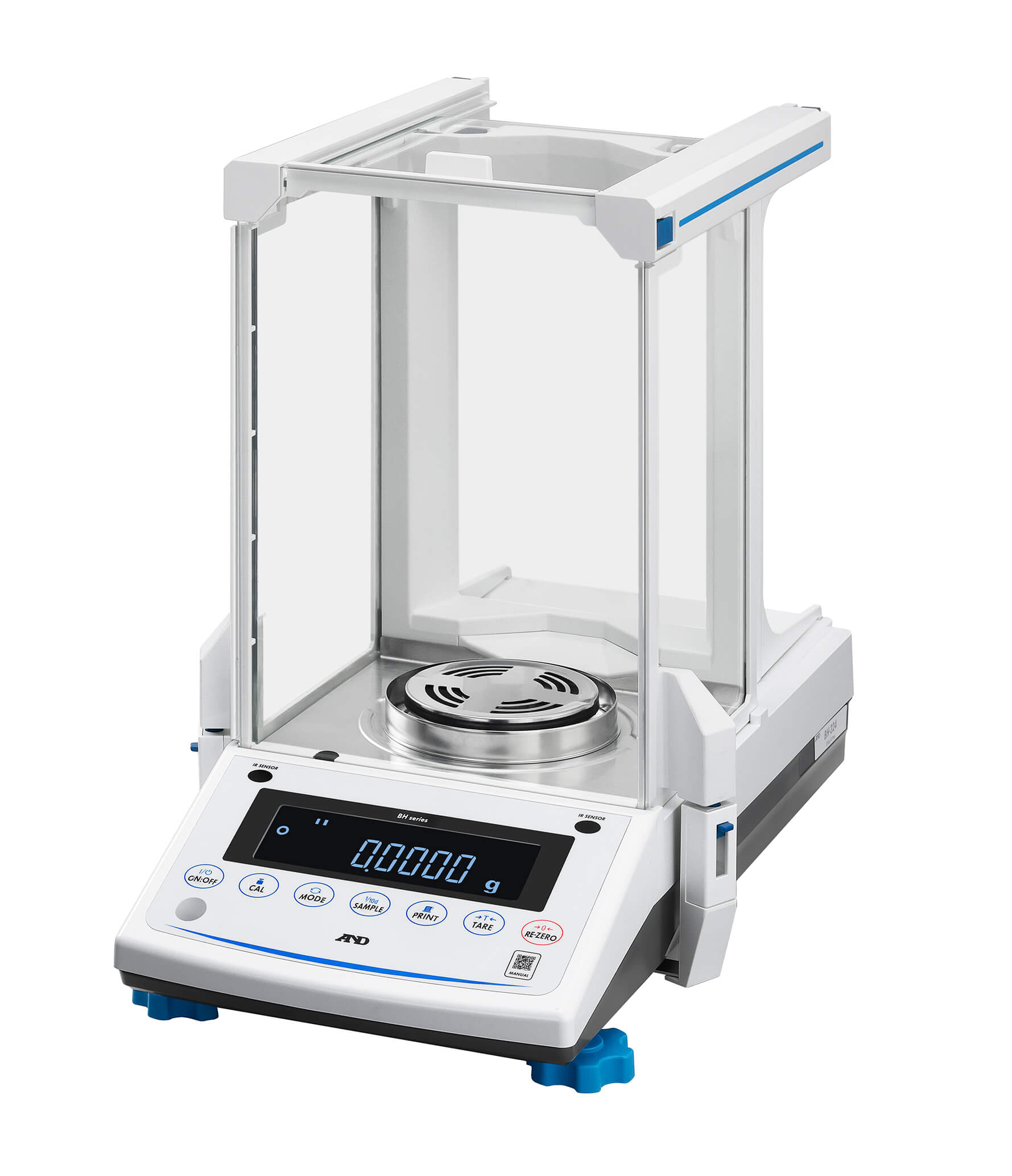

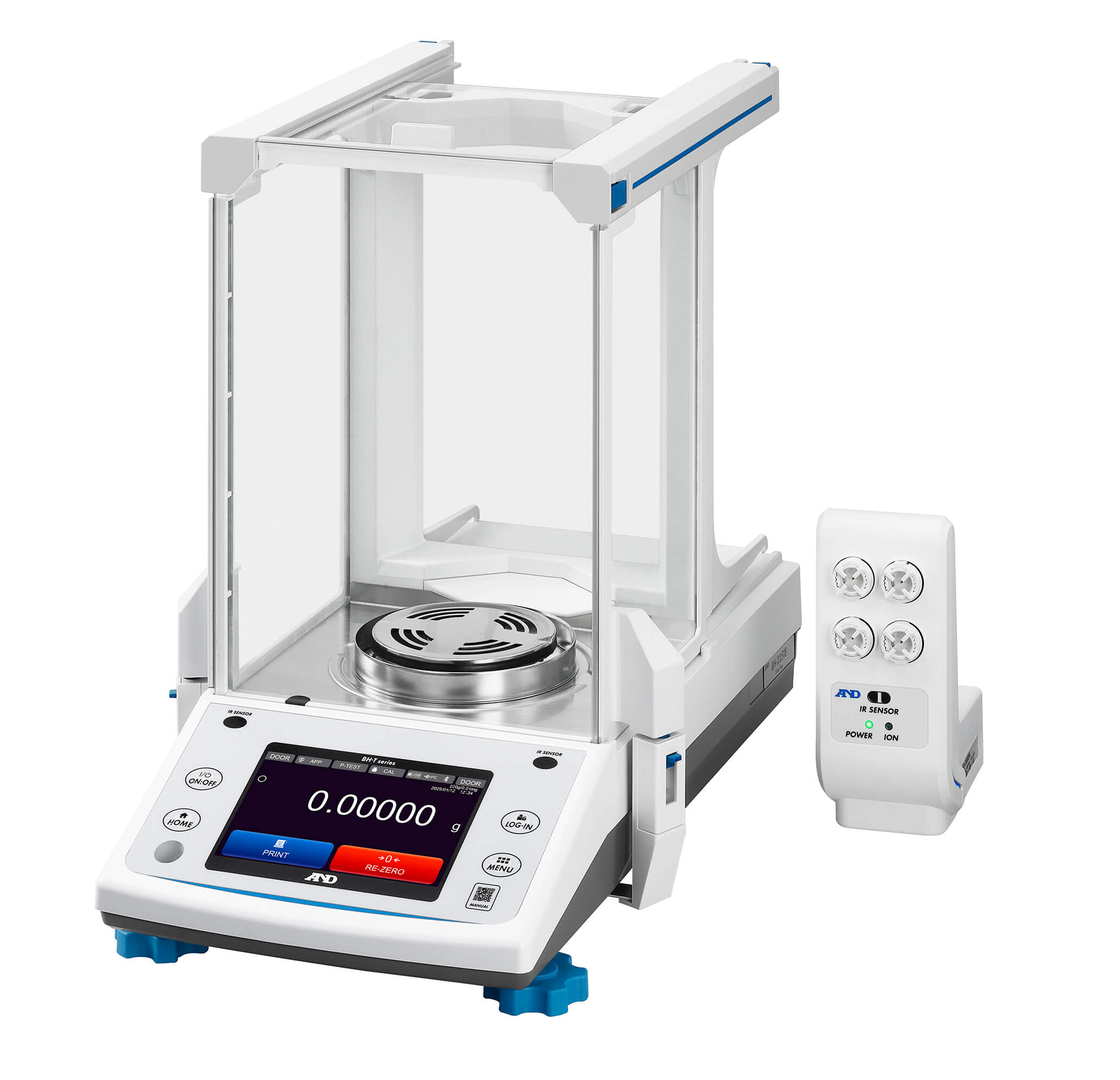

BH-T/BH Series

BH-T/BH Series - Image 2

BH-T/BH Series

Premium-Level Semi-Micro/Analytical Balances

Superior Weighing, Without Compromise

Highlights

Features

Downloads

Automatic opening/closing of the breeze break doors using non-contact IR sensors
5-inch wide color touch screen that enables intuitive operation (for the BH-T series)
External ionizer for instant static elimination*

* Optional for the BH series

Easily separable glass panes and floor plate for better cleanability
No grooves for the sliding doors to prevent contaminants from accumulating
Pan with shock absorber that mitigates the effects of convection flows and impact (patent pending)
Impact shock detection providing feedback to prevent damage to the weight sensor (patented)
Automatic self-sensitivity adjustment using the internal weight
Internal repeatability test to quickly assess the performance under actual operating conditions
Daily/periodic balance check support*
Smart routine check function*(patented)
Minimum weight setting and alert functions
User access control with user rights management and password lock functions
History information for log-in/log-out, operation, sensitivity adjustment, and impact shock detection*
Data memory function*
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
GLP custom output mode that provides flexible GxP-compliant data output with customizable templates*
Label output mode that enables ZPL^®/ZPL II^® printing with customizable text/barcode templates*
Gross/Net/Tare output
Formulation mode for quick, accurate weighing of multiple samples to mix*
HPLC mode for preparing buffer solutions for high-performance liquid chromatography*
Percent mode function for target weighing or checking sample variation
Statistical calculation function (SCF) to facilitate the analysis of measurements*
Density measurement mode
Multiple languages: English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, or Japanese*

*Available only for the BA-T series

Highlights

Automatic opening/closing of the breeze break doors using non-contact IR sensors
5-inch wide color touch screen that enables intuitive operation (for the BH-T series)
External ionizer for instant static elimination*

* Optional for the BH series

Features

Easily separable glass panes and floor plate for better cleanability
No grooves for the sliding doors to prevent contaminants from accumulating
Pan with shock absorber that mitigates the effects of convection flows and impact (patent pending)
Impact shock detection providing feedback to prevent damage to the weight sensor (patented)
Automatic self-sensitivity adjustment using the internal weight
Internal repeatability test to quickly assess the performance under actual operating conditions
Daily/periodic balance check support*
Smart routine check function*(patented)
Minimum weight setting and alert functions
User access control with user rights management and password lock functions
History information for log-in/log-out, operation, sensitivity adjustment, and impact shock detection*
Data memory function*
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
GLP custom output mode that provides flexible GxP-compliant data output with customizable templates*
Label output mode that enables ZPL^®/ZPL II^® printing with customizable text/barcode templates*
Gross/Net/Tare output
Formulation mode for quick, accurate weighing of multiple samples to mix*
HPLC mode for preparing buffer solutions for high-performance liquid chromatography*
Percent mode function for target weighing or checking sample variation
Statistical calculation function (SCF) to facilitate the analysis of measurements*
Density measurement mode
Multiple languages: English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, or Japanese*

*Available only for the BA-T series

Downloads

Brochure

Manual (BH-T series)

Manual (BH series)

Description

Description

Specifications

Model	BH-225TE BH-225	BH-225DTE BH-225D	BH-124	BH-224TE BH-224	BH-324TE BH-324
Capacity	220 g	51 g / 220 g*i	120 g	220 g	320 g
Readability	0.01 mg	0.001 mg / 0.01 mg	0.1 mg
Repeatability (standard deviation)*ii	0.015 mg (for 50 g) 0.03 mg (for 200 g)	0.025 mg (for 50 g) 0.1 mg (for 200 g)	0.09mg		0.1mg
Minimum weight*iii (typical)	17 mg		104mg
Linearity	±0.10 mg	±0.2mg
Stabilization time (typical when set to FAST)	Approx. 7 secs	Approx. 7 secs / 3 secs	Approx. 3 secs
Weighing pan size	Ø90 mm		Ø85 mm

*i Smart range function: Automatically switches between the precision and standard ranges. Changes back to full precision range when the RE-ZERO (tare) operation is implemented.
*ii Repeatability can worsen depending on the environmental conditions and operator skills.
*iii Pursuant to the United States Pharmacopeia (USP), Chapter 41

External Input/Output

RS-232C interface
Quick/bi-directional USB interface*
External key input (jack socket) × 2
USB host interface (for the BH-T series)
Ethernet (TCP/IP) interface (for the BH-T series)
Bluetooth^® interface (for the BH-T series)

*Users can toggle between the Quick USB mode (plug-and-play with weighing data output to a PC only) and the Virtual COM mode (for bi-directional communication) using internal settings. For the latter, a driver (available for download here) needs to be installed on the PC (except for those with Windows 10/11).
