Introducing our innovative micro balance! Accurate measurement for precision weighing with micrograms readability.
Highlights
Features
Downloads
- Easy, fanless elimination of static electricity using a built-in ionizer
- Anti-static breeze break
- Large weighing chamber for improved usability
- Built-in temperature, humidity, and atmospheric pressure sensors
- Interlockable slide doors allowing efficient operation with both hands
- Motorized calibration with an internal mass:
- Automatically triggered based on temperature variation
- Triggered by operator
- Clearly visible, white-backlit LCD
- Memory: up to 200 data sets
- AD-1688 as standard accessory: dedicated USB key to record weighing data as well as environmental parameters into MS Excel readable files
- 12 weighing units: g, mg, oz, ozt, ct, mom, dwt, GN, tael, tola, pcs (counting), %.
- Special pans/holders for BM-20/22:
- Small pans for sampling minute amounts
- Holders for PM filters
- Holders for microfuge tubes
- Optional pipette accuracy testing kit
- Interfaces:
- RS-232C (standard)
- Quick USB (standard)
- Ethernet (optional)
Highlights
- Easy, fanless elimination of static electricity using a built-in ionizer
- Anti-static breeze break
- Large weighing chamber for improved usability
- Built-in temperature, humidity, and atmospheric pressure sensors
- Interlockable slide doors allowing efficient operation with both hands
- Motorized calibration with an internal mass:
- Automatically triggered based on temperature variation
- Triggered by operator
- Clearly visible, white-backlit LCD
- Memory: up to 200 data sets
- AD-1688 as standard accessory: dedicated USB key to record weighing data as well as environmental parameters into MS Excel readable files
- 12 weighing units: g, mg, oz, ozt, ct, mom, dwt, GN, tael, tola, pcs (counting), %.
- Special pans/holders for BM-20/22:
- Small pans for sampling minute amounts
- Holders for PM filters
- Holders for microfuge tubes
- Optional pipette accuracy testing kit
- Interfaces:
- RS-232C (standard)
- Quick USB (standard)
- Ethernet (optional)
Features
| Model | Capacity | Resolution | Pan Size |
|---|---|---|---|
| BM-20 | 22g | 1μg | Ø 25mm |
| BM-22* | 22g/5.1g | 0.01mg/1μg | (50 and 95mm for filter pans) |
| BM-252 | 250g | 0.01mg | Ø 90mm |
| BM-200 | 220g | 0.1mg | Ø 90mm |
| BM-300 | 320g | 0.1mg | Ø 90mm |
| BM-500 | 520g | 0.1mg | Ø 90mm |
*Smart range
| Options & Accessories | Model |
|---|---|
| Ethernet interface with WinCT-Plus software* | BM-08 |
| Pipette testing kit (all models) | BM-14 |
| Density measurement kit (BM-252, 200, 300, 500) | AD-1653 |

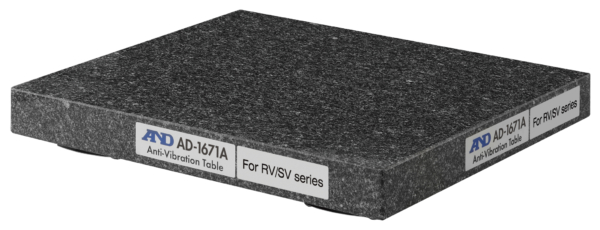

| Tabletop anti-vibration table | AD-1671 |
| Freestanding anti-vibration table | ADI-MWT |
| Table top breeze break | AD-1672 |
| Electrostatic field meter | AD-1684 |
| Tweezers for calibration weight | AD-1689 |
| Display working covers (5pcs) | AX-BM-031 |
| Centrifuge tube holder | AX-BM-032 |
| Ioniser electrode needles (4pcs) | AX-BM-NEEDLESET |
| Aluminium analytical pan (0.05ml, 8mm dia.) 100pcs | AX-PAN-0.05ML |
| Aluminium analytical pan (0.3ml, 12mm dia.) 100pcs | AX-PAN-0.3ML |
| Aluminium analytical pan (0.8ml, 15mm dia.) 100pcs | AX-PAN-0.8ML |
| Foot switch | AX-SW128 |
* BM-08 and the standard Quick USB interface cannot be used at the same time
