HV/HW-C & HV/W-CP Series (Copy)
Multi-Functional Platform Scales
For The Maximum Possible Throughput
- High-speed measurement—stabilization within 1 second (for the HV-C/CP series)*1*2
- Bright and multi-colored 5-step LED comparator lights
- Auto-tare and negative comparison functions realizing “take-away” check weighing
- Highly-visible, LCD display (26 mm character height) with white backlight
- Quick and easy settings using the alphanumeric keypad
- Key lock function to prevent operators from making changes to the scale settings
- Optional roller conveyors for weighing in production lines

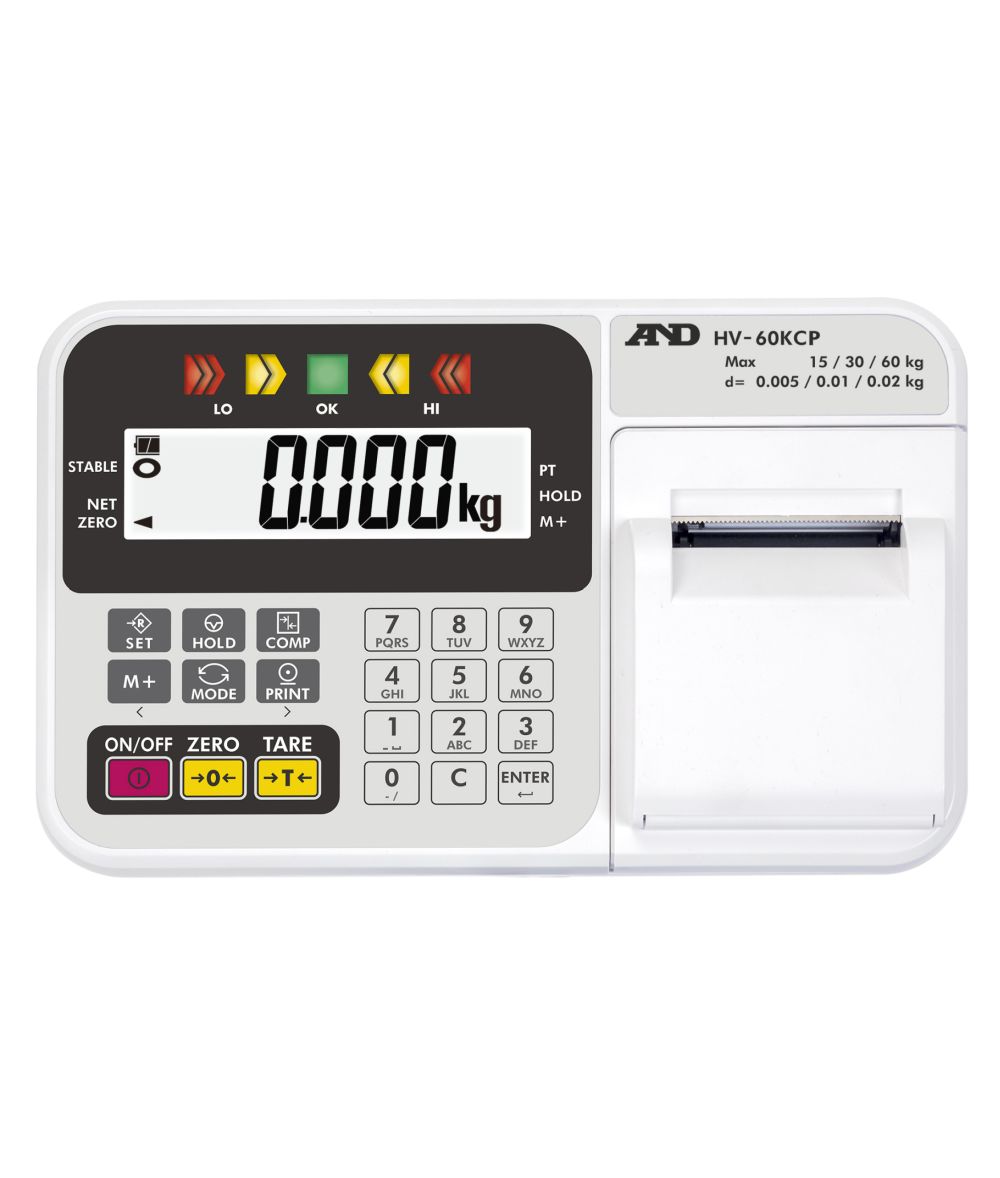

- Built-in printer for creating paper-based records on the spot (for the HV/W-CP series)
- Universal Flexi Coms (UFC) function to edit serial data output/printout format (Relevant Software: WinCT-UFC)

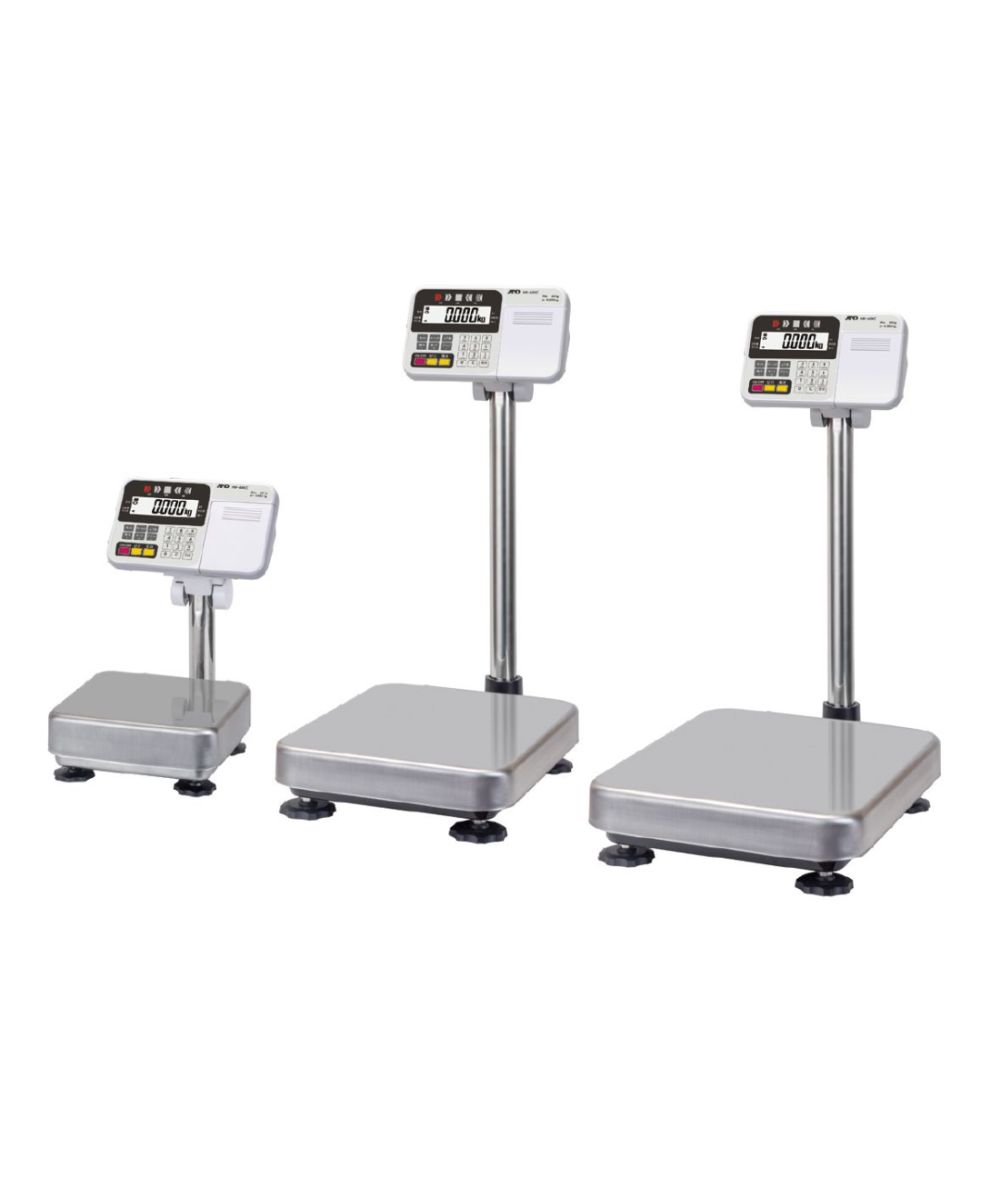

- Wide selection of capacities and readabilities
- IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
- Three slots for optional data communication interfaces
- Display hold function
- Counting mode function
- Accumulation (M+) function
- Operation with either AC adapter or four D batteries (for the HV/W-C series)*3
- Display angle adjustable to four levels
- Optional 5 m extension cable and wall-mount bracket for the display unit
- Display cover provided as standard
*1 Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
*2 With the HW-C/CP series, stabilization takes not more than 1.5 seconds.
*3 The battery life is approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF. The HV/W-CP series operates on AC adapter only.
Highlights
- High-speed measurement—stabilization within 1 second (for the HV-C/CP series)*1*2
- Bright and multi-colored 5-step LED comparator lights
- Auto-tare and negative comparison functions realizing “take-away” check weighing

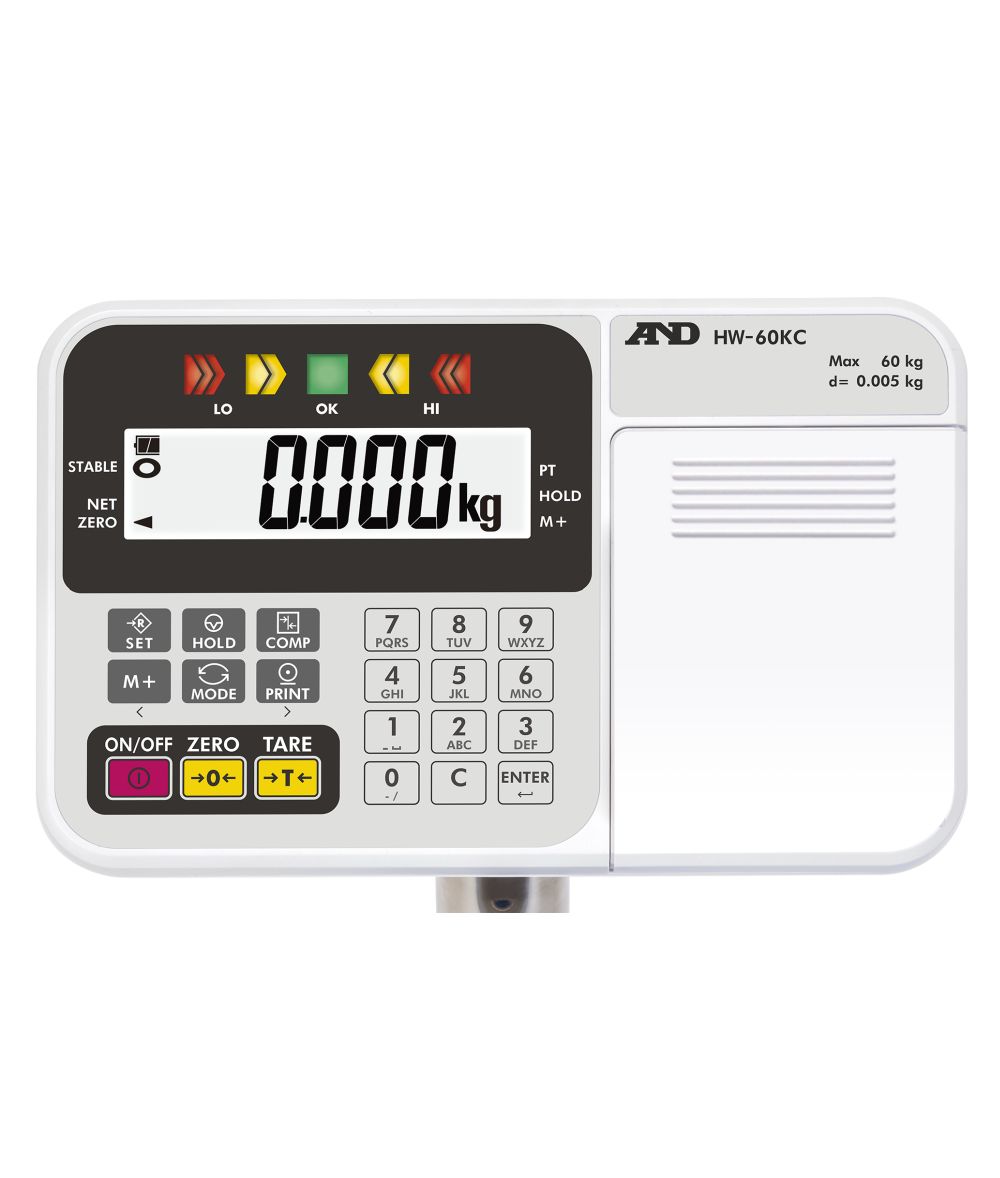

- Highly-visible, LCD display (26 mm character height) with white backlight
- Quick and easy settings using the alphanumeric keypad
- Key lock function to prevent operators from making changes to the scale settings
- Optional roller conveyors for weighing in production lines
- Built-in printer for creating paper-based records on the spot (for the HV/W-CP series)
- Universal Flexi Coms (UFC) function to edit serial data output/printout format (Relevant Software: WinCT-UFC)
- Wide selection of capacities and readabilities
- IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
- Three slots for optional data communication interfaces
- Display hold function
- Counting mode function
- Accumulation (M+) function
- Operation with either AC adapter or four D batteries (for the HV/W-C series)*3
- Display angle adjustable to four levels
- Optional 5 m extension cable and wall-mount bracket for the display unit
- Display cover provided as standard
*1 Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
*2 With the HW-C/CP series, stabilization takes not more than 1.5 seconds.
*3 The battery life is approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF. The HV/W-CP series operates on AC adapter only.
Features
Videos
Specifications
| Model | HV-15KC / HV-15KCP | HV-60KC / HV-60KCP | HV-200KC / HV-200KCP | ||||||
| Capacity | 3 kg | 6 kg | 15 kg | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 220 kg |
| Readability | 0.001 kg | 0.002 kg | 0.005 kg | 0.005 kg | 0.01 kg | 0.02 kg | 0.02 kg | 0.05 kg | 0.1 kg |
| Weighing pan | 250 mm × 250 mm | 330 mm × 424 mm | 390 mm × 530 mm | ||||||
| Model | HW-10KC / HW-10KCP | HW-60KC / HW-60KCP | HW-100KC / HW-100KCP | HW-200KC / HW-200KCP |
| Capacity | 10 kg | 60 kg | 100 kg | 220 kg |
| Readability | 0.001 kg | 0.005 kg | 0.01 kg | 0.02 kg |
| Weighing pan | 250 mm × 250 mm | 330 mm × 424 mm | 390 mm × 530 mm | |
External Input/Output
USB interface (optional)
RS-232C interface (optional)
Comparator relay output/buzzer/contact input interface (optional)
Options
HVW-02CB : USB interface (bi-directional, type-B)*4
HVW-03C : RS-232C interface (D-Sub 9P)
HVW-04C : Comparator relay output/buzzer/contact input interface
Manual (PDF 167KB)
HVW-08C : Extension cable (5 m)*5
HVW-11C : Wall-mount bracket
HVW-12C : Printer support for the AD-8127 Manual (PDF 224KB)
HVW-13 : Large roller conveyer (for the 100 to 200 kg capacity models)
HVW-14 : Medium-size roller conveyer (for the 60 kg capacity models)
*4 Driver software needs to be installed on the PC. Please download it from here.
*5 Recalibration is required after connecting the extension cable.
Accessories
AD-8127 : Compact printer
AD-8526 : Serial/Ethernet converter
AD-8527 : Quick USB adapter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-USB-9P : Serial/USB converter
AX-PP147-S : Paper for the built-in printer (5 rolls)
AX-SW128 : Foot switch
