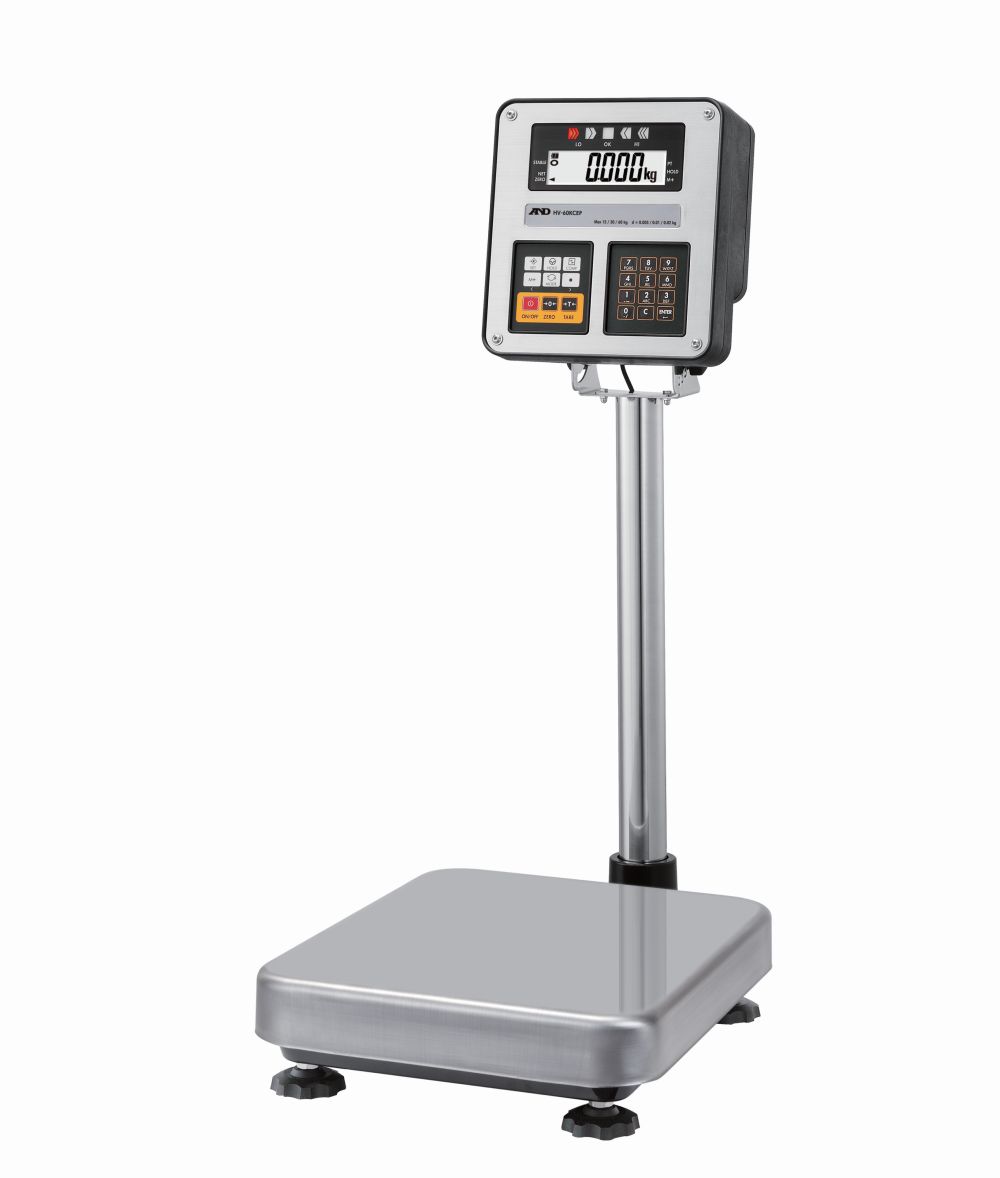

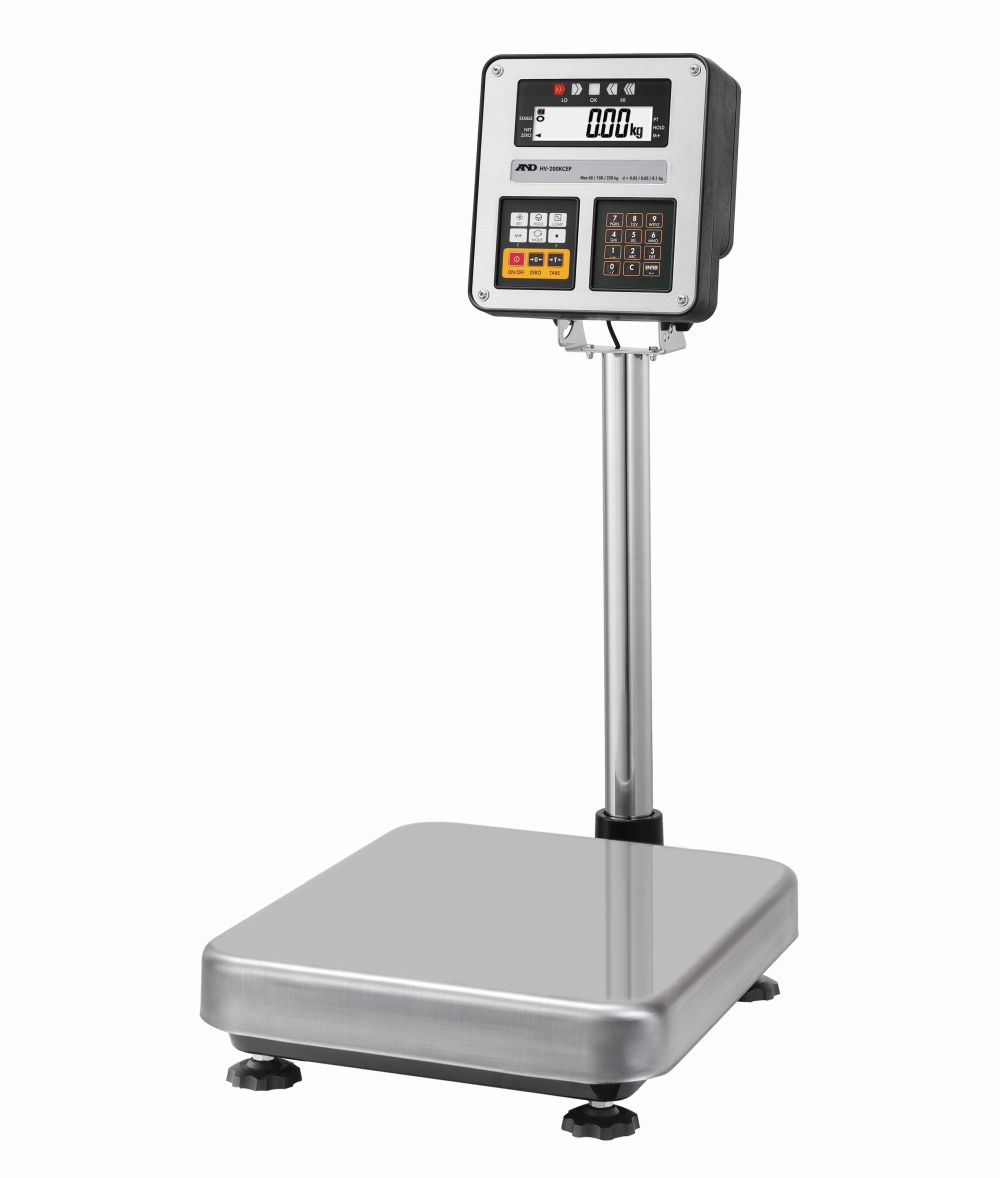

HV-CEP/HW-CEP Series Intrinsically Safe Platform Scales
Minimum Investment, Maximum Safety!
- Affordable selection of capacities and resolutions for excellent explosion protection
- High-speed measurement—response within 1 second (for the HV-CEP series) *1
- Multi-coloured 5-step LED comparator lights
- Auto-tare and negative comparison functions realizing “take-away” check weighing

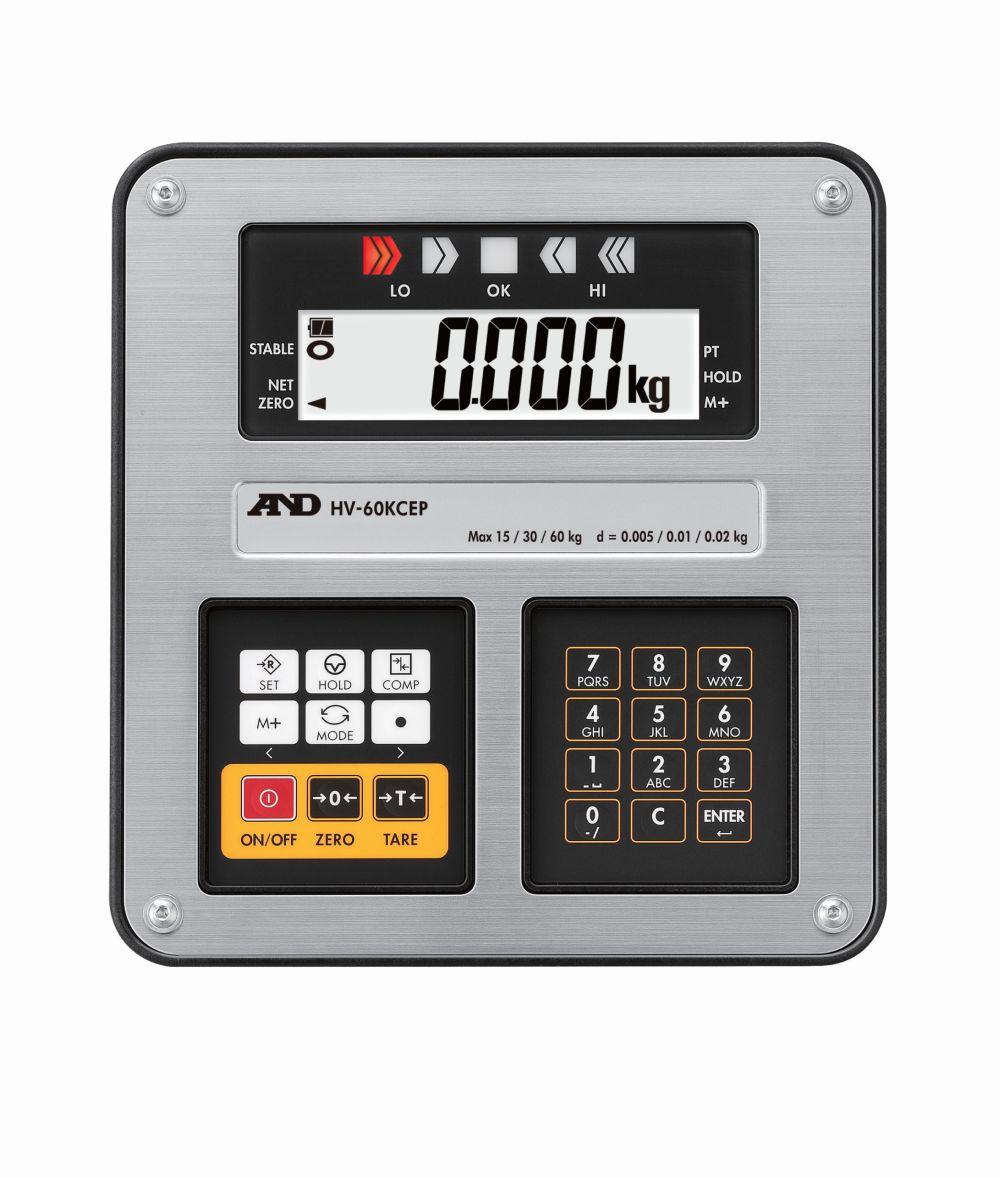

- Highly-visible, LCD display (25 mm character height) with white backlight
- Quick and easy settings using the alphanumeric keypad
- Key lock function to prevent operators from making changes to the scale settings

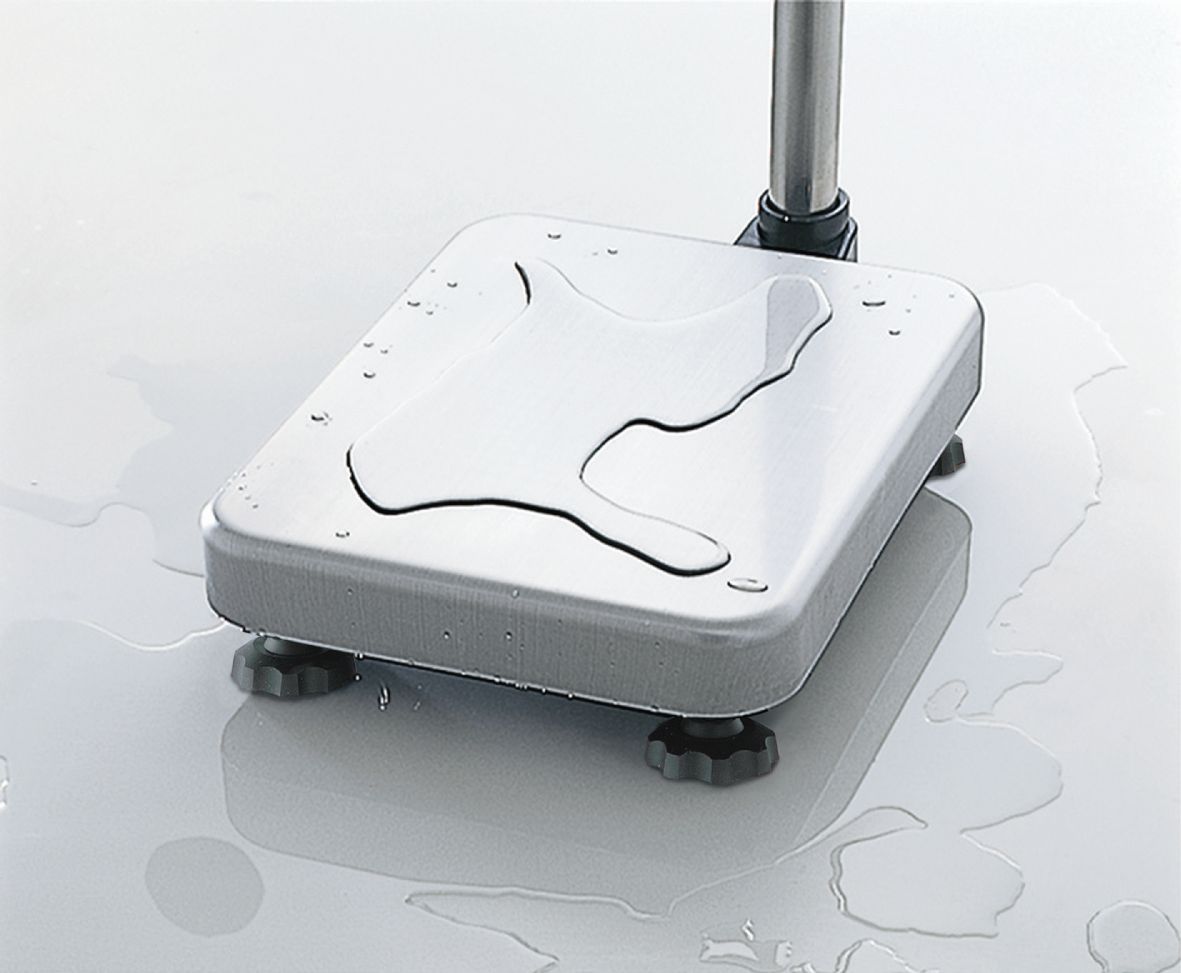

- IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
- Adjustable response characteristics depending on the degree of drafts and vibrations at the location
- Display hold function
- Counting mode function
- Accumulation (M+) function
- Approx. 1,500 hours of operation with four D batteries*2
- Auto power OFF function to save battery power
- Display angle adjustable to five levels
*1 Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
*2 The battery life is approx. 1500 hours, with LED backlight OFF (or approx. 1000 hours with LED and backlight ON).
The batteries to be used are specified: DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XJ). Batteries are not included.
Highlights
- Affordable selection of capacities and resolutions for excellent explosion protection
- High-speed measurement—response within 1 second (for the HV-CEP series) *1
- Multi-coloured 5-step LED comparator lights
- Auto-tare and negative comparison functions realizing “take-away” check weighing
- Highly-visible, LCD display (25 mm character height) with white backlight
- Quick and easy settings using the alphanumeric keypad
- Key lock function to prevent operators from making changes to the scale settings
- IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
- Adjustable response characteristics depending on the degree of drafts and vibrations at the location
- Display hold function
- Counting mode function
- Accumulation (M+) function
- Approx. 1,500 hours of operation with four D batteries*2
- Auto power OFF function to save battery power
- Display angle adjustable to five levels
*1 Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
*2 The battery life is approx. 1500 hours, with LED backlight OFF (or approx. 1000 hours with LED and backlight ON).
The batteries to be used are specified: DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XJ). Batteries are not included.
Features
| Model | HV-15KCEP | HV-60KCEP | HV-200KCEP | ||||||
| Capacity | 3 kg | 6 kg | 15 kg | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 220 kg |
| Readability | 0.001 kg | 0.002 kg | 0.005 kg | 0.005 kg | 0.01 kg | 0.02 kg | 0.02 kg | 0.05 kg | 0.1 kg |
| Weighing pan | 250 mm × 250 mm | 330 mm × 424 mm | 390 mm × 530 mm | ||||||
| Model | HW-10KCEP | HW-60KCEP | HW-100KCEP | HW-200KCEP |
| Capacity | 10 kg | 60 kg | 100 kg | 220 kg |
| Readability | 0.001 kg | 0.005 kg | 0.01 kg | 0.02 kg |
| Weighing pan | 250 mm × 250 mm | 330 mm × 424 mm | 390 mm × 530 mm | |
