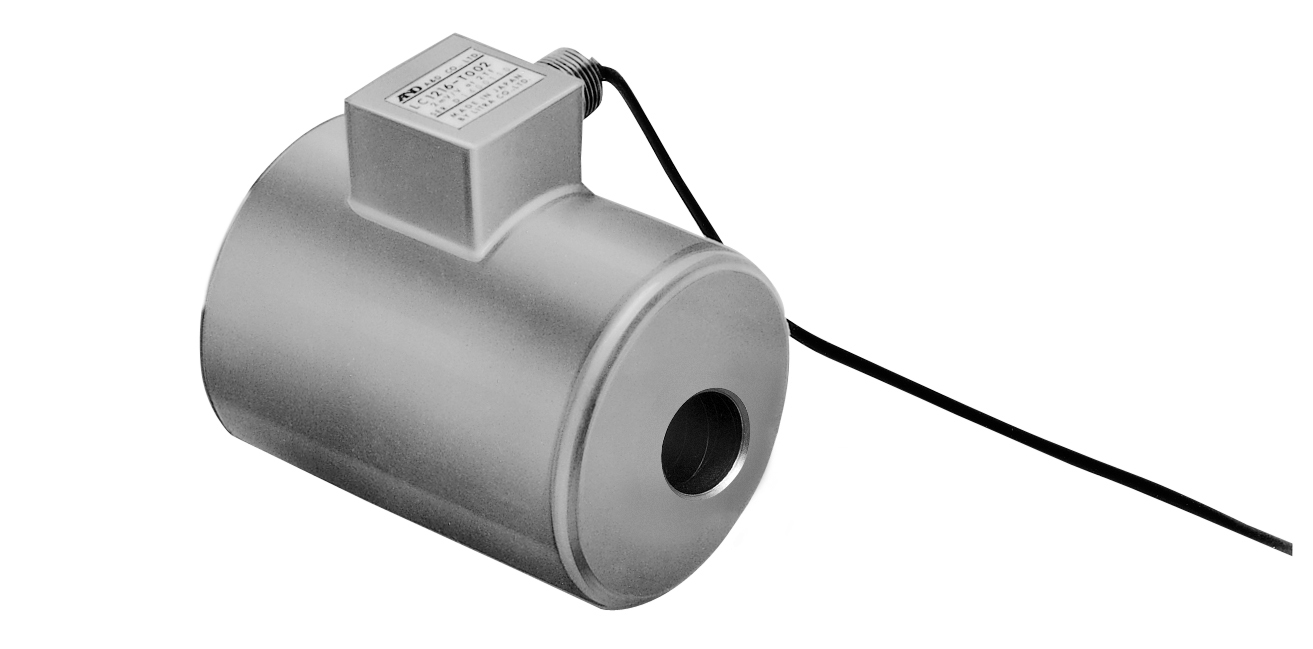

LC-1216 (Tool Steel) For general purpose tension, compression measuring , use in hostile environments

• Dual guided cantilever and shear beam design for high accuracy
• Hermetically sealed for complete protection from water and moisture and for use in harsh environments
• Temperature compensation maintains both zero and span from -10 °C to +60 °C (+14 °F to +140 °F)
• Can be used for multi-point weighing

Rated capacities ………………….100 kgf, 200 kgf, 500 kgf, 1 tf, 2 tf, 5 tf
Rated output …………………………2 mV/V±0.5%
Maximum safe overload ……….200% of rated capacity
Combined error …………………..±0.05% of rated output
Creep …………………………………..±0.1% of rated output/hour
Zero balance ……………………….±2% of rated output
Compensated
temperature range…………….. -10 °C to +60 °C/+14 °F to 140 °F
Recommended
excitation voltage ………………..12 V
Maximum
excitation voltage ………………..15 V
Input terminal resistance ……Approximately 400 Ω
Output terminal resistance …350 Ω ± 3.5 Ω
Insulation resistance ………….Greater than 5000 MΩ at DC50 V
Temperature effect
Zero …………………………………….0.007% of rated output/°C
Span …………………………………..0.002% of rated output/°C Typ.
Cable length ……………………….3 m/118 inches
