- Rugged, reliable construction
- Moisture resistant, single-point construction
- Overload stopper protection
- Up to 4 by 6 foot pan up to 1.22 ×1.83 meter (4×6 foot) par

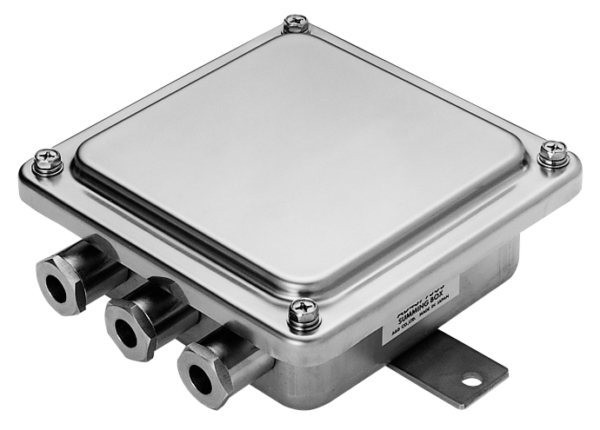

- Includes summing box

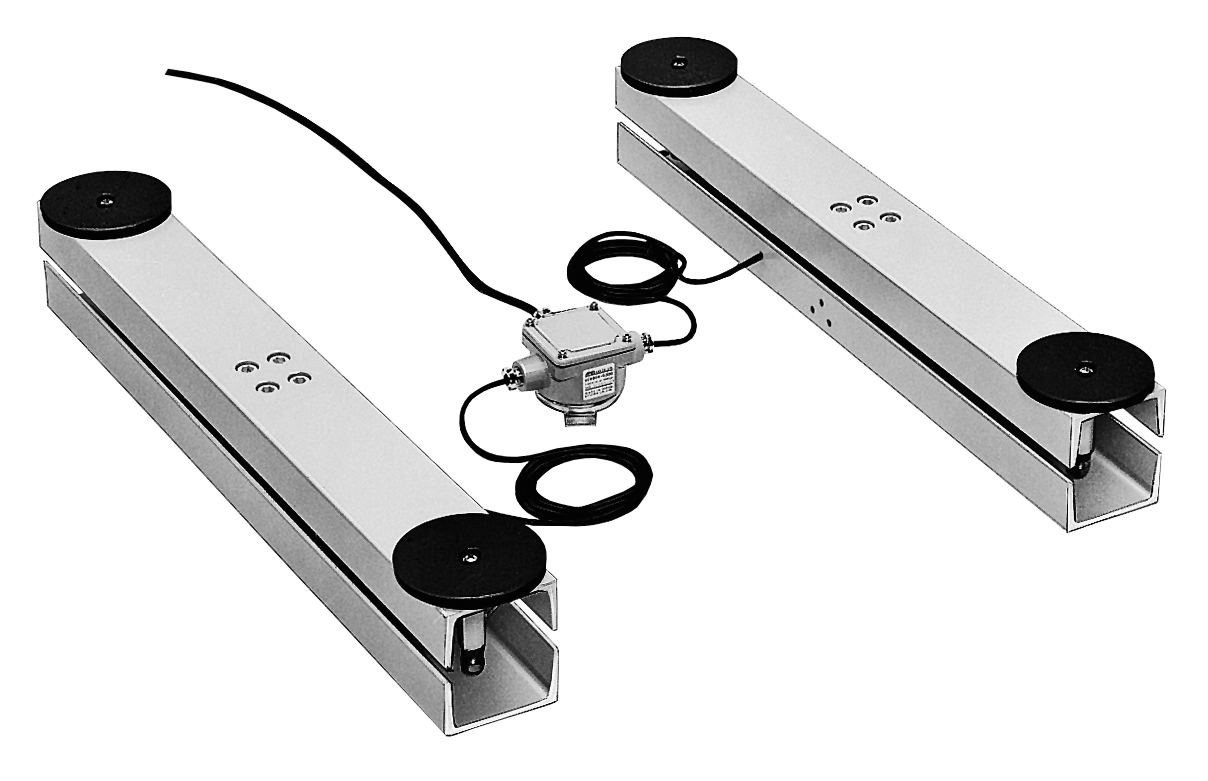

- Low-cost two load cell system
- 300 kg, 600 kg and 1.2 t capacities
Highlights
- Rugged, reliable construction
- Moisture resistant, single-point construction
- Overload stopper protection
- Up to 4 by 6 foot pan up to 1.22 ×1.83 meter (4×6 foot) par
- Includes summing box
- Low-cost two load cell system
- 300 kg, 600 kg and 1.2 t capacities
Features
Rated capacities …………………….. 300 kgf, 600 kgf, 1.2 tf
Rated output ……………………………. 1.5 mV/V+15%/-0%(1 mV/V+15%/-0%)*
Maximum deadweight …………….. 20% (50%) of rated capacity
Maximum safe overload ………….. 200% of rated capacity
Combined error ………………………. ±0.015% of rated output
Creep ………………………………………. ±0.05% of rated output/hour
Zero balance …………………………… 25±10% of rated output
Compensated
temperature range …………………… -10 °C to +40 °C/+14 °F to +104 °F
Recommended
excitation voltage ……………………… 12 V
Maximum
excitation voltage ……………………… 15 V
Input terminal resistance ………….. Approximately 200 Ω
Output terminal resistance ……… 175 Ω ± 1 Ω
Insulation resistance ………………. Greater then 500 MΩ at DC50 V
Temperature effect
Zero …………………………………………. 0.004% of rated output/°C
Span ………………………………………… 0.0014% of rated output/°C Typ.
Platform size ……………………………. 0.9 × MAX. 2.0 m (35 × MAX. 79 inches)
1.2 × MAX. 2.0 m(47 × MAX. 79 inches)
Weight …………………………………….. 50 kg (30 kg) 110 Ibs (66 lbs)
Cable length …………………………… 2 m/79 inches
*( ) = Specifications for LC4212-K300
