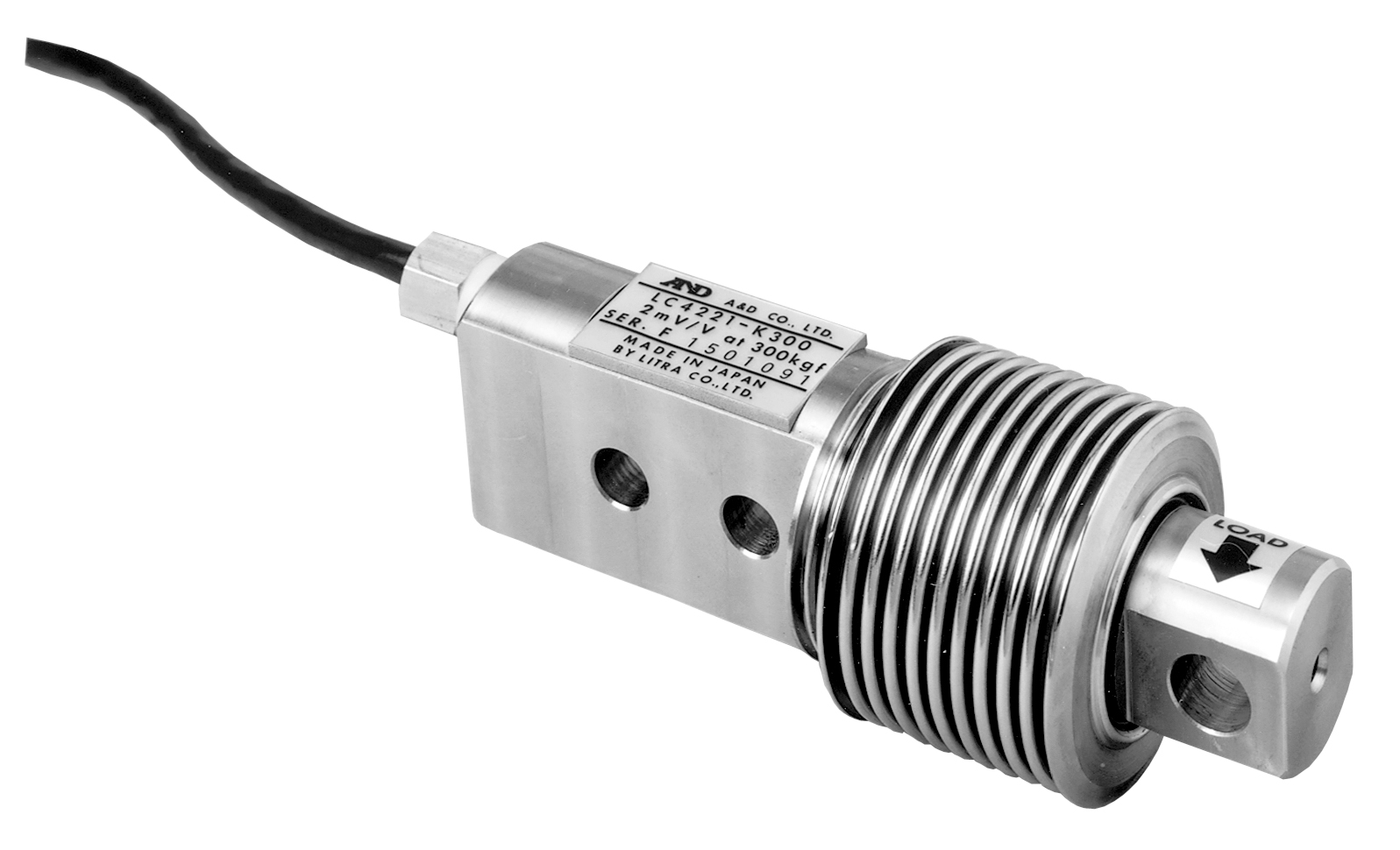

LC-4221 (Stainless Steel) Stainless steel body construction protection from water, moisture and corrosion

• Hermetically sealed with stainless steel bellows protects from water and moisture
• Stainless steel body is ideal protection from corrosion
• Compact size and lightweight
• For both tension and compression usage
• Dual guided cantilever design for high accuracy
• Can be used for multi-point weighing
• Temperature compensation maintains both zero and span from -10 °C to +60 °C (+14 °F to +140 °F)

Rated capacities………………..10 kgf, 20 kgf, 50 kgf, 100 kgf, 200 kgf, 300 kgf
Rated output……………………..2 mV/V ± 0.2%
Maximum safe overload………..200% of rated capacity
Combined error………………….± 0.05% of rated output
Creep……………………………..± 0.1 % of rated capacity/hour
Zero balance…………………….1% of rated capacity
Compensated
temperature range……………..-10 °C to +60 °C/+14 °F to +140 °F
Recommended
excitation voltage………………12 V
Maximum
excitation voltage……………….15 V
Input terminal resistance …….Approximately 400 Ω
Output terminal resistance….350 Ω ± 3.5 Ω
Insulation resistance…………Greater than 5,000 MO at DC50 V
Temperature effect
Zero………………………………..0.007% rated output/°C
Span…………………………………..0.002% rated output/°C Typ.
Cable length………………………5 rn/195 inches
