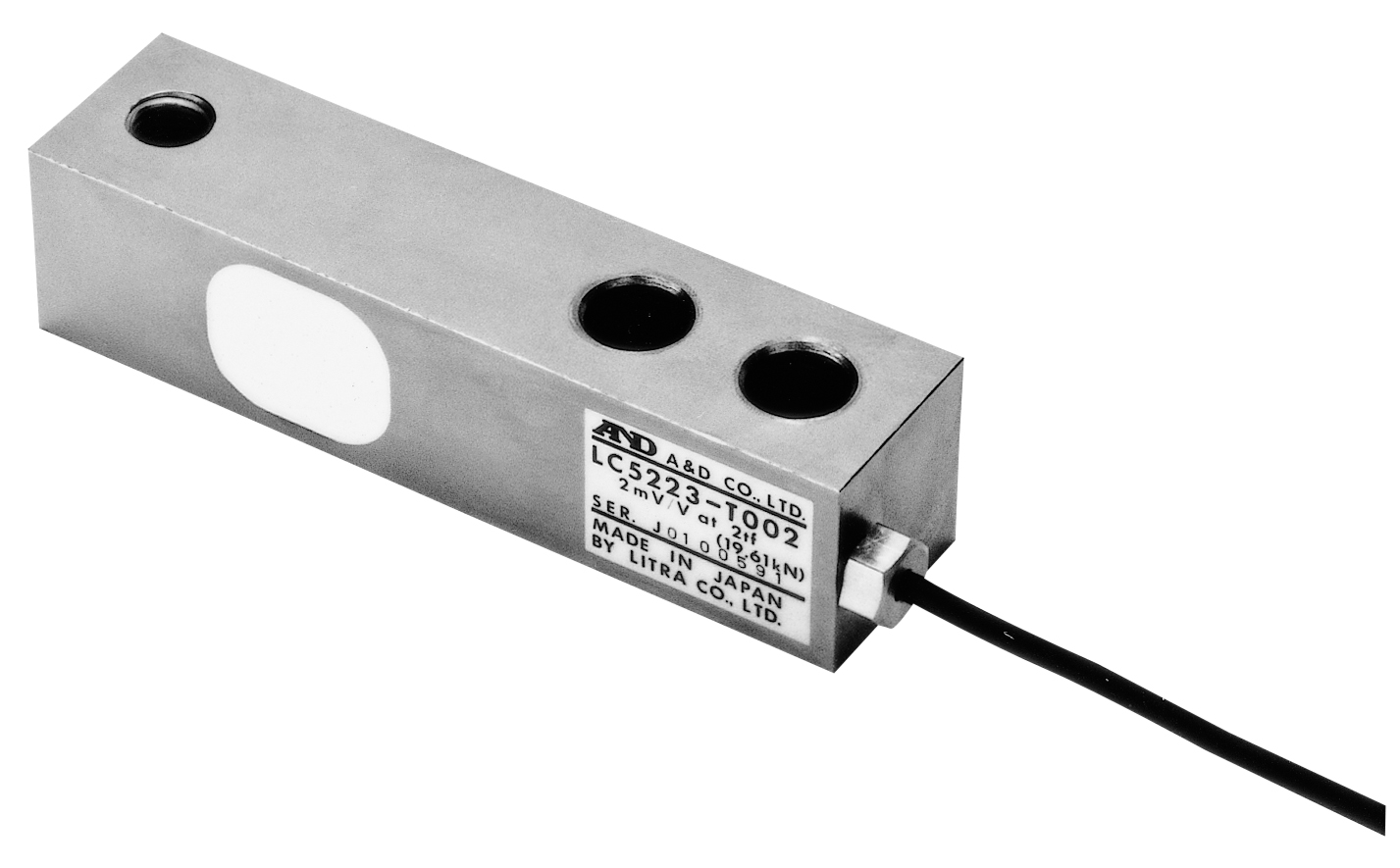

LC-5223 (Tool Steel) For low profile platform scales, hopper scales and more

• Low profile and lightweight for easy mounting
• For both tension and compression usage
• Moisture proof
• Can be used for multi-point weighing

Rated capacities ……………………….500 kgf, 1 tf, 1.5 tf, 2 tf, 3 tf, 5 tf
Rated output …………………………….2 mV/V±0.2%
Maximum safe overload ………………150% of rated capacity
Combined error …………………………± 0.03% of rated output
Zero balance ……………………………±1% of rated output
Compensated
temperature range …………………….-10 °C to +60 °C/+14 °F to +140 °F
Recommended
excitation voltage……………………….5 to 12 V
Maximum
excitation voltage ………………………15 V
input terminal resistance ……………..Approximately 400 Ω
Output terminal resistance …………..350 Ω ±3.5 Ω
insulation resistance …………………..Greater than 5000 MΩ at DC50 V
Temperature effect
Zero ………………………………….0.007% of rated output/°C
Span ………………………………..0.002% of rated output/°C Typ.
Cable length …………………………….3 m/118 inches
