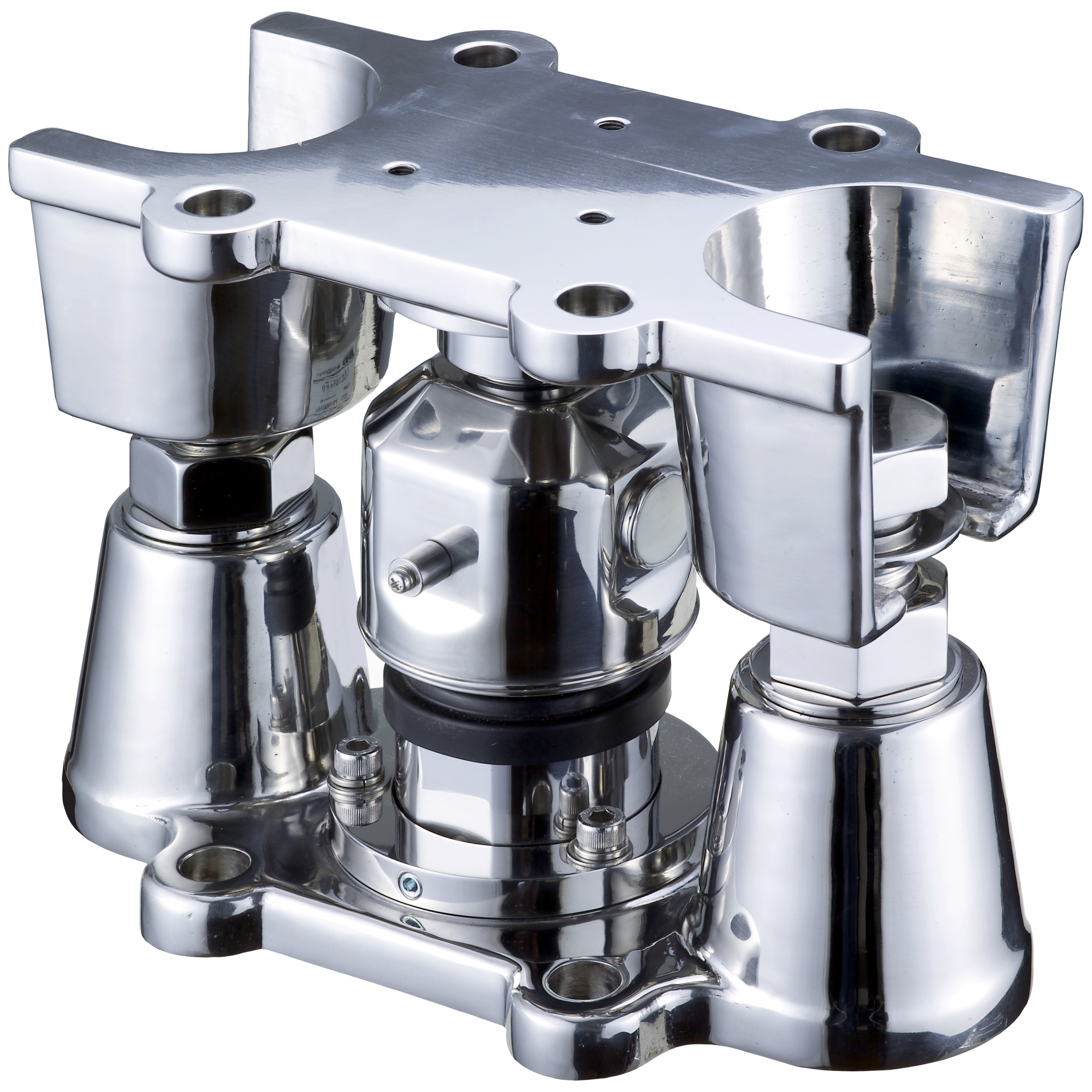

LCC12 (Stainless Steel) For tank scale and hopper scale
LCC12 Series Weigh Module
load cell with mount assembly (all stainless steel)
Highlights
Features
Downloads
- Hermetically sealed stainless steel construction protection from water, moisture and corrosion (IP68)*.
- Advanced load design for tanks, hoppers.
- Compression type
- Mount assembly (anti-vibration, floating prevention mechanism)
Highlights
- Hermetically sealed stainless steel construction protection from water, moisture and corrosion (IP68)*.
- Advanced load design for tanks, hoppers.
- Compression type
- Mount assembly (anti-vibration, floating prevention mechanism)
Features
| Rated capacities | 100 kN (10 tf), 200 kN (20 tf), 300 kN (30 tf) | |
| Rated output | 2 mV/V±0.1% | |
| Maximum Safe overload | 150% of R.C. | |
| Combined error | 0.03% of R.O. | |
| Recommended excitation voltage | DC5 V to 12 V | |
| Maximum excitation voltage | DC15 V | |
| Zero balance | ±1% of R.O. | |
| Input terminal resistance | 800 Ω ± 80 Ω | |
| Output terminal resistance | 2200 ± 10 Ω | |
| Insulation resistance | Greater than 5000 MΩ/DC 50 V | |
| Operating temperature | -20 °C to 60 °C | |
| Compensated temperature range | -20 °C to 60 °C | |
| Temperature effect | Zero | 0.019% of R.O./10 Typ. |
| Span | 0.010% of Load/10 Typ. | |
| Cable diameter/ Length | φ8, 12 m | |
| Dustproof/Waterproof | IP68 | |
| Allowance for horizontal force | 75 kN | |
| Allowance for floating force | 80 kN | |
*The LCC12 provides for IP68 enclosure rating with greater than 100 hours protection at 1.5 m immersion.
