MC Series (Copy)
For management of masses in the OIML Class F1 or below
The Mass Comparator can be used for mass verification. It displays the weighing results with an extra decimal place not normally found in balances of the same capacity.
Highlights
Features
Downloads
- For management of masses in the OIML Class F1 or below
- Extra decimal place for monitoring fine weight changes with heavy tare weights
- Stabilizing filter to lessen errors due to drafts or vibrations
- Auto-centering pan to avoid corner-load errors and ensure higher accuracy (optional)
- Internal calibration mass for simplified calibration of the balance
- Fast stabilization of approx. 1.5 seconds
- GLP/GMP/GCP/ISO compliant output
- Large bright Vacuum Fluorescent Display
- Multiple weighing units of measurement
Highlights
- For management of masses in the OIML Class F1 or below
- Extra decimal place for monitoring fine weight changes with heavy tare weights
- Stabilizing filter to lessen errors due to drafts or vibrations
- Auto-centering pan to avoid corner-load errors and ensure higher accuracy (optional)
- Internal calibration mass for simplified calibration of the balance
- Fast stabilization of approx. 1.5 seconds
- GLP/GMP/GCP/ISO compliant output
- Large bright Vacuum Fluorescent Display
- Multiple weighing units of measurement
Features
| Model | Capacity | Resolution | Pan Size |
|---|---|---|---|
| MC-1000 | 1100g | 0.0001g | 128 × 128 mm |

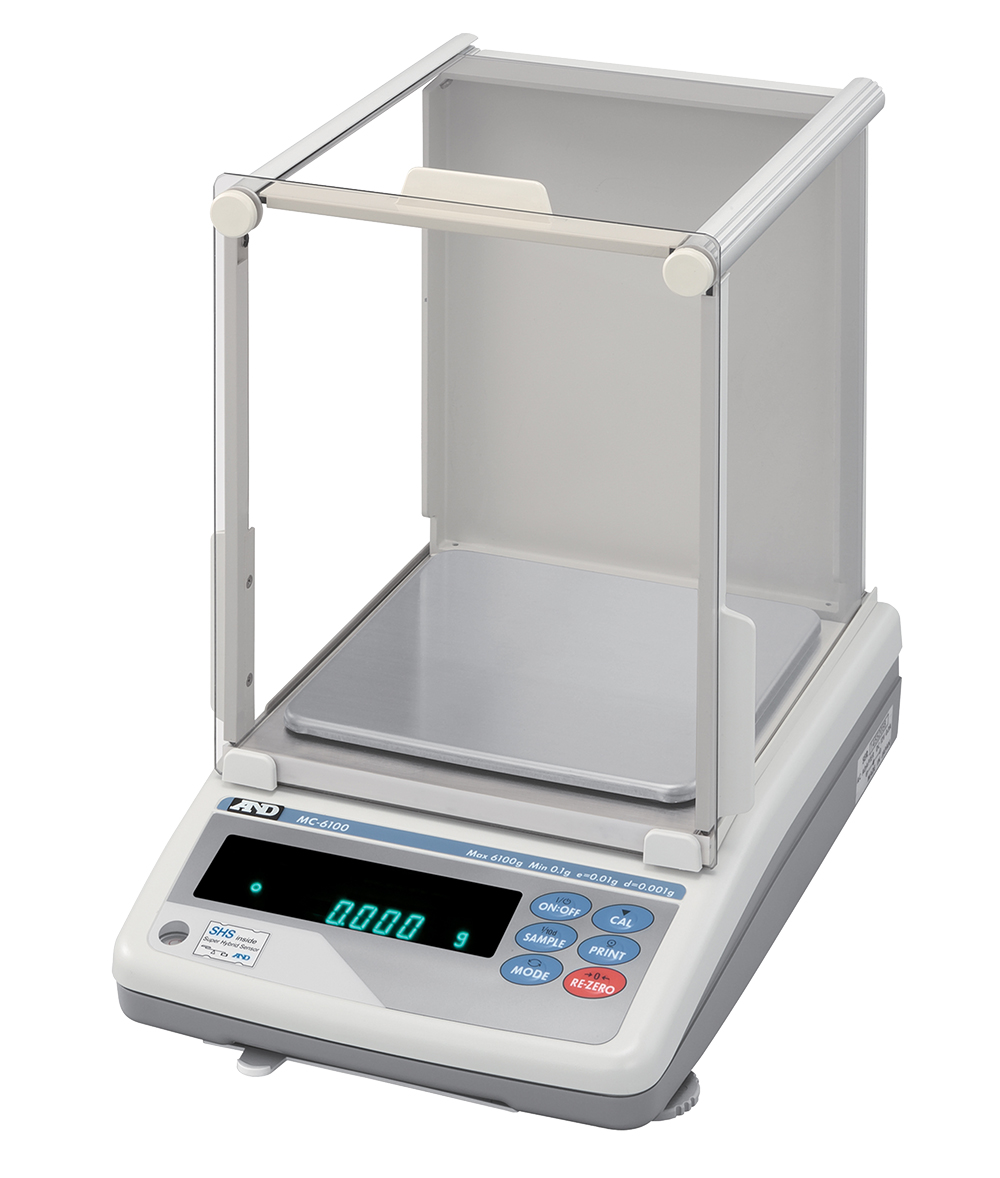

| MC-6100 | 6100g | 0.001g | 165 × 165 mm |

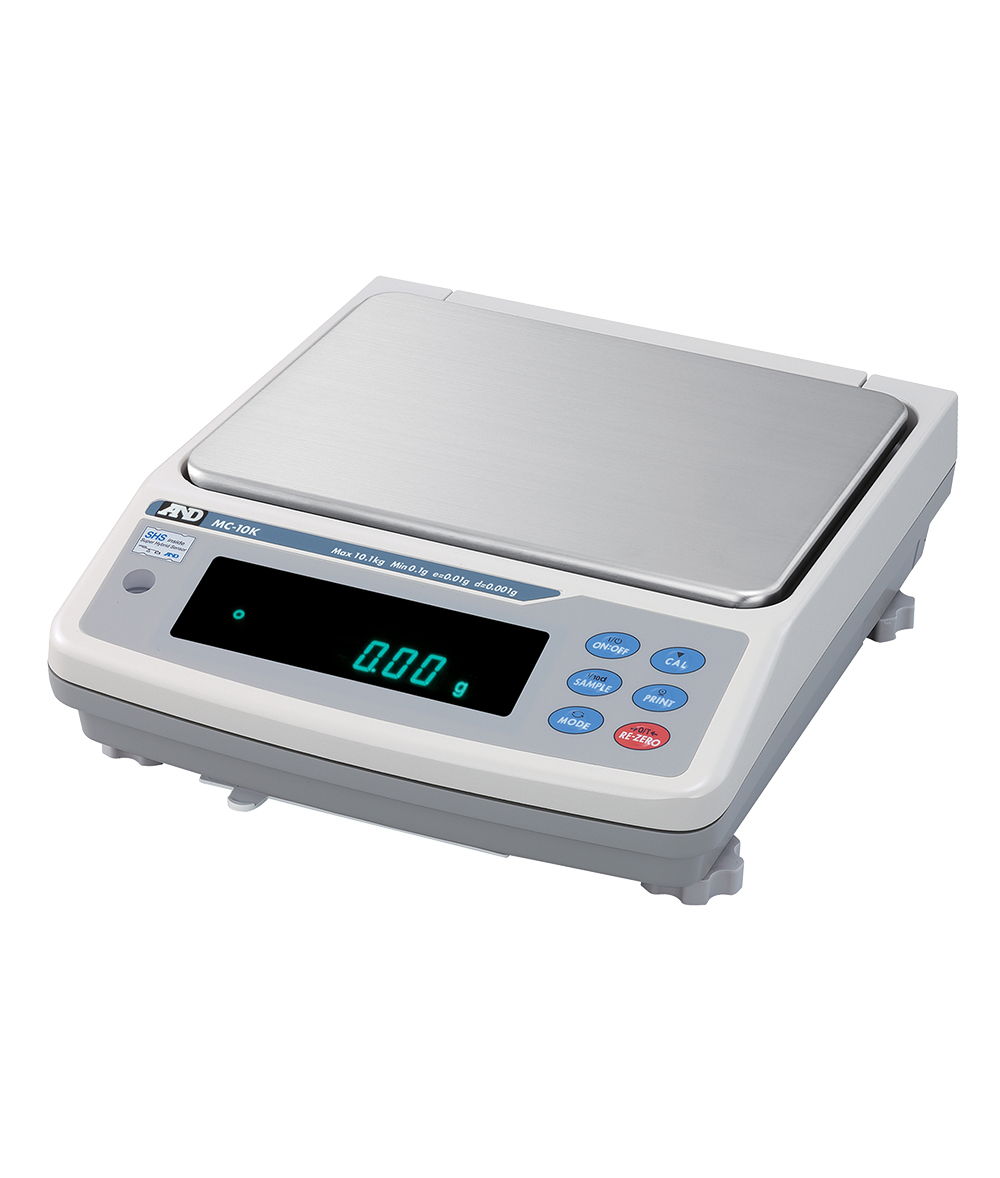

| MC-10K | 10.1kg | 0.001g | 270 × 270 mm |
| MC-30K | 31kg | 0.01g | 270 × 270 mm |

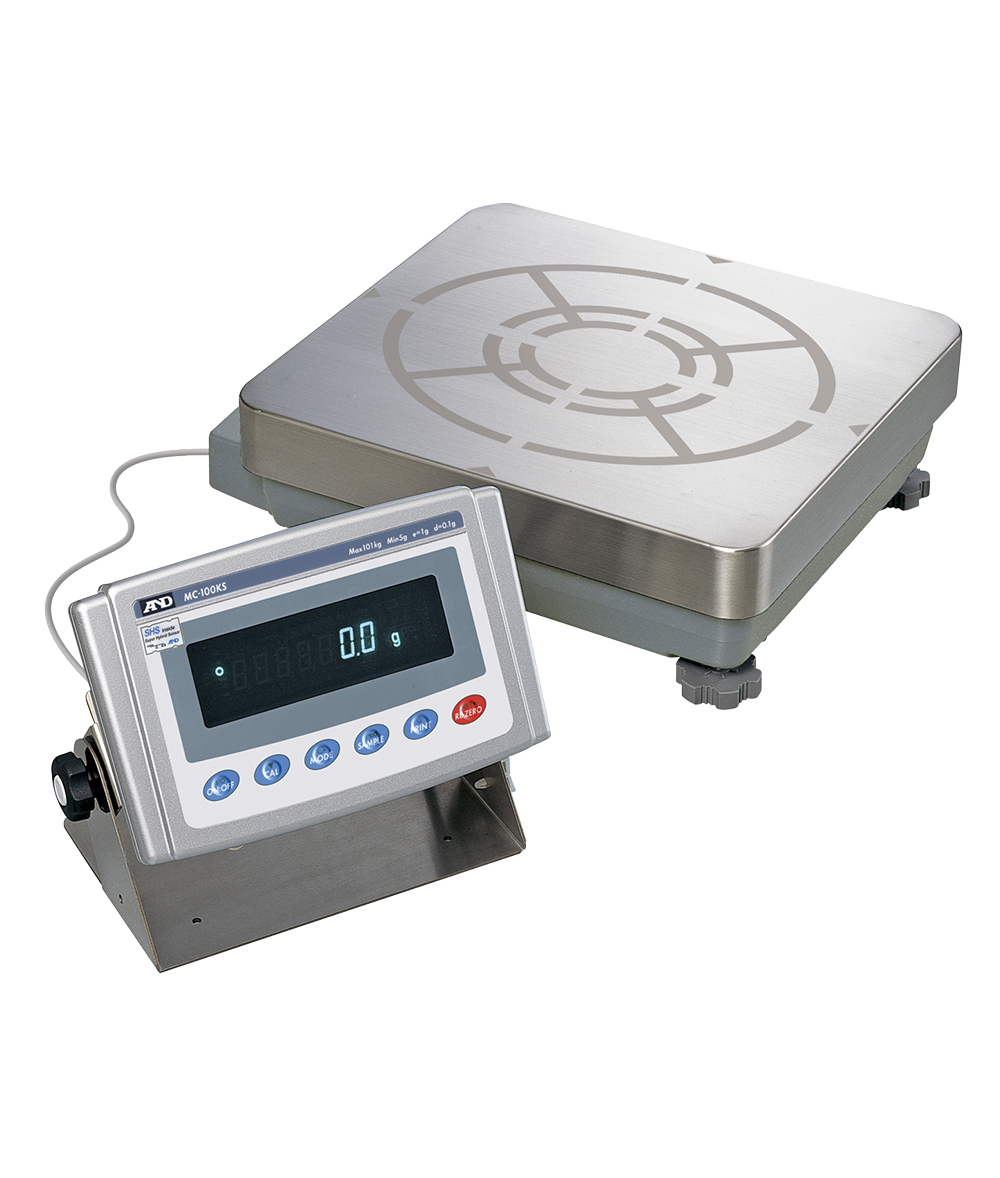

| MC-100KS | 101kg | 0.1g | 386 × 346 mm |
| Options & Accessories | Model |
|---|---|
| Auto-centering pan | AX-MC1000PAN |
| Auto-centering pan | AX-MC6100PAN |
| Quick USB interface with cable | GX-02 |
| Comparator output with a buzzer/RS-232C/current loop* | GX-04 |
| Analog voltage auto-centering pan* | GX-06 |
| Output/current loop | GX-12 |
| Animal weighing pan | GX-13 |
| Auto-centering pan | AX-MC10KPAN |
| Comparator output with a buzzer/RS-232C/current loop** | GX-04K |
| Analog voltage output/current loop** | GX-06K |
| Waterproof RS-232C cable (5m) | GX-07K |
| Animal weighing pan | GXK-012 |
| Carrying case | GXK-015 |
| Comparator output with buzzer/RS-232C/current loop | GP-OP-04 |
| Analogue voltage output/current loop | GP-OP-06 |
| 5m display cable (factory fit) | GP-OP-07 |
| Animal weighing pan | GP-OP-12 |
| Underhook | GP-OP-21 |
| AD-8121B printer support bracket | GP-OP-22 |
| Weighing environment logger (temperature, humidity, pressure, vibration) | AD-1687 |
* GX-04 and GX-06 are factory installed options.
** GX-04K, GX-06K, and the standard RS-232C interface cannot be used at the same time. The MC-30K is not IP65 compliant with these options
