A&D’s world-class Class 0.5 testing machineDescription

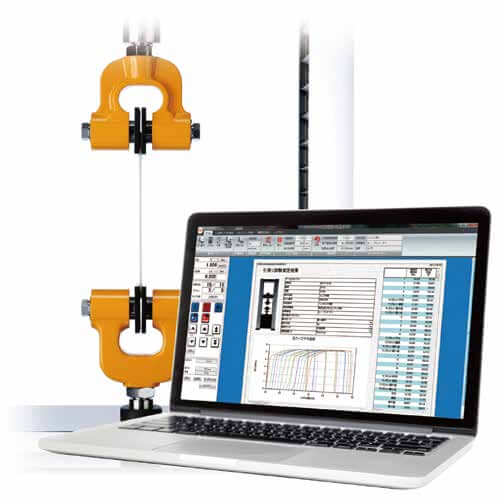

TACT (TENSILON Advanced Controller for Testing)
“TACT” data processing system, optimized for TENSILON.
Capable of industry’s fastest sampling speed of 0.2 msec.
The TACT series has excellent data analysis, calculation, and data storage functions in addition to the enhanced operability of the testing machine itself.
Options
Touch screen
Commander
Display
Load frame table
Fixed cross head
Extensometer
Specifications

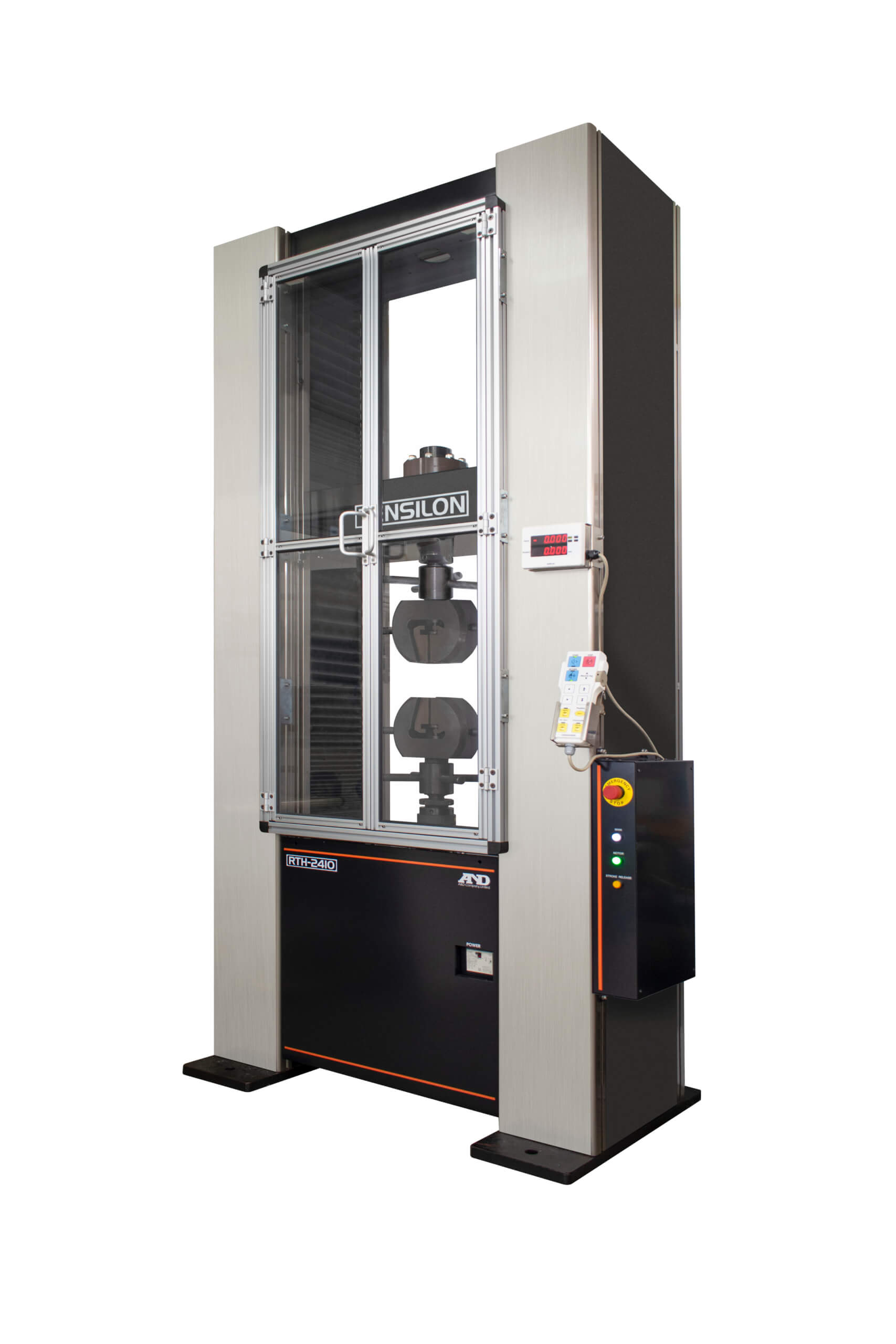

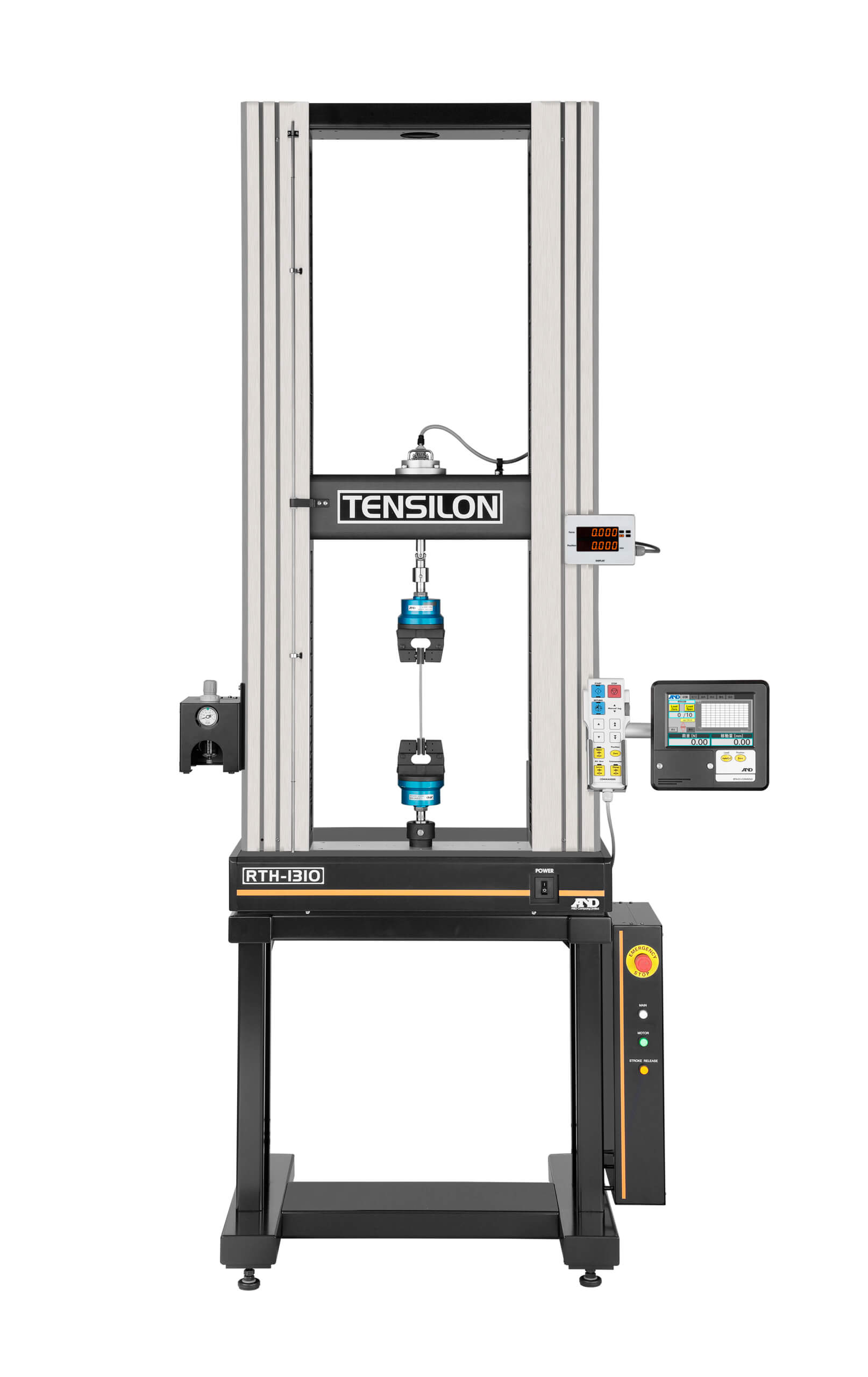

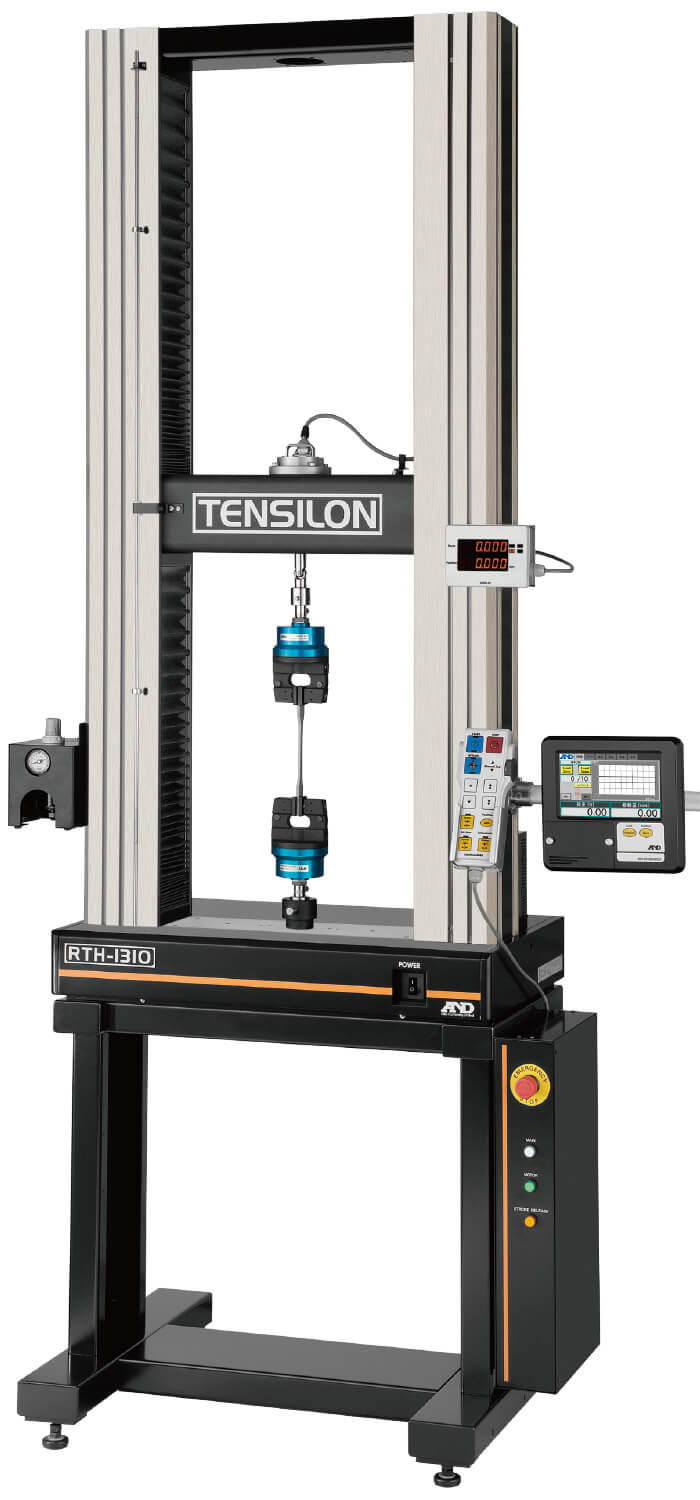

RTH-2430 | RTH-2410 | RTH-1350 | RTH-1310 | RTH-1225 |
|
|---|---|---|---|---|---|
| Motor | Digital servo mechanizm |
||||
| Maximum Capacity | 300kN | 100kN | 50kN | 10kN | 2.5kN |
| Effective test width | 590mm | 420mm |
|||
| Crosshead speed range | 0.0001～500mm/min | 0.0001～1000mm/min | 0.0001～ 1200mm/min | 0.0001～ 1500mm/min |
|
| Crosshead speed accuracy | ±0.1% |
||||
| Crosshead arbitrary speed | 0.0001mm/min step within the range of crosshead speed |
||||
| Crosshead position accuracy | ±0.1% of rating (±0.01mm when rating is less than 10mm) |
||||
| Crosshead return speed | 300, 600 mm/min | 600, 1200 mm/min | 825, 1600 mm/min |
||
| Load measurement accuracy | ±1% of rating (within range of 1/1 - 1/1000 of load cell rating) | ±0.5% of rating (within range of 1/1 - 1/1000 of load cell rating) |
|||
| Sampling speed | 0.2msec |
||||
| Noise | 70dBA or less | 65dBA or less | 60dBA or less |
||
| Load calibration | One touch operation load calibration with the calibration circuit embedded in the load cell. Equipped with a load cell rating discrimination function. |
||||
| Dimensions (WxDxH) | 1144x1040x2560mm | 1144×700×2275mm | 987×610×1655mm | 785×451×1555mm |
|
| Weight | 1450kg | 800kg | 350kg | 130kg |
|
| Power consumption Power supply Breaker capacity | 5.1kW 7.6kVA 40A | 3.1kW 6.0kVA 30A | 1.6kW 3.3kVA 20A | 475W 1.7kVA 15A | 275W 700VA 15A |
| Ambient temperature & Humidity | Temperature: 5~40℃、Humidity：20~80%RH (No condensation allowed) |
||||
