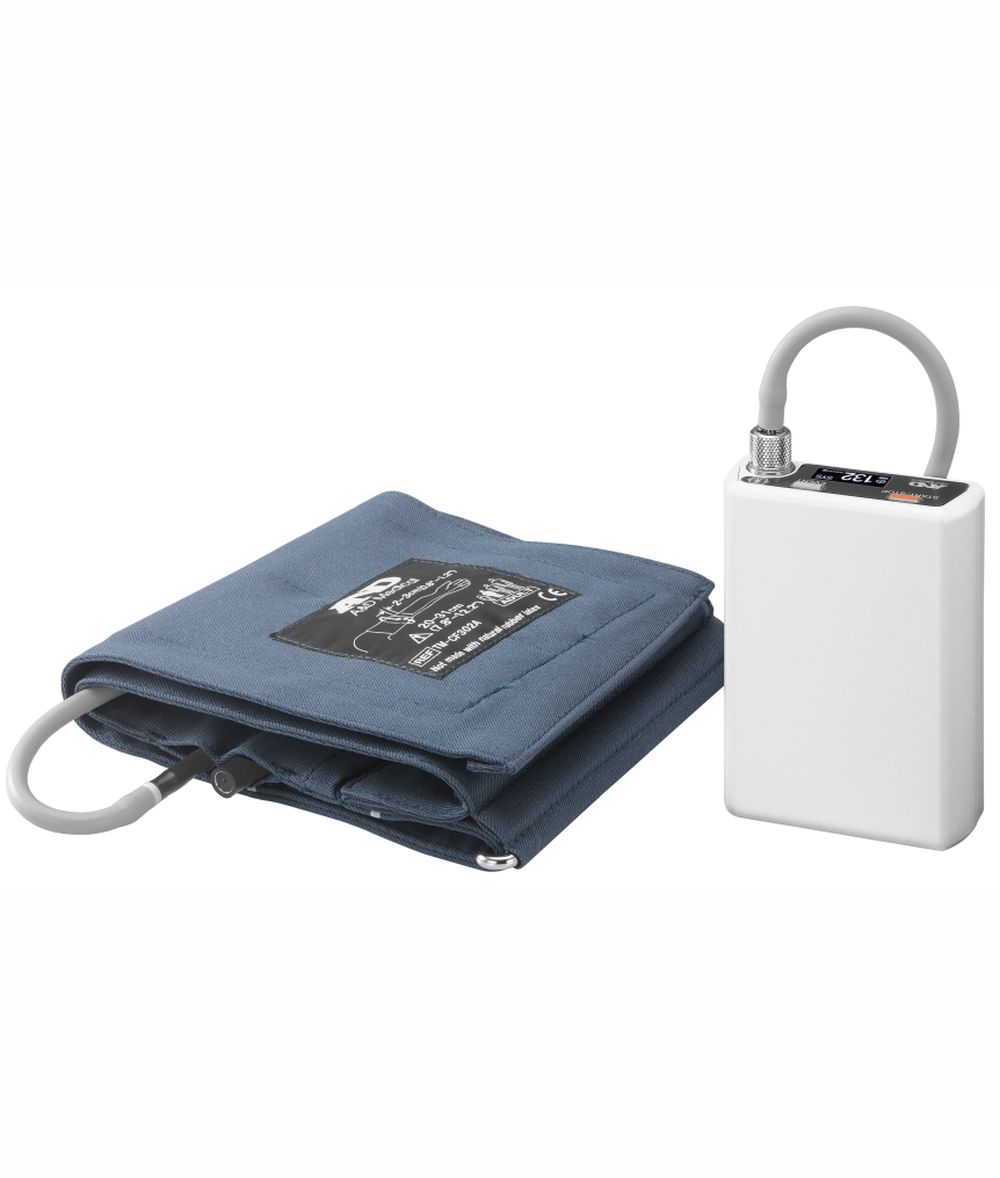

TM-2440 Ambulatory Blood Pressure Monitors
The TM-2440 is a compact, lightweight ambulatory blood pressure monitor with an algorithm that can detect and record irregular heart rhythms (IHB mode). Effectiveness has been demonstrated through verification of screening for arrhythmia1. The software that comes with the TM-2440 can analyze waveforms produced during measurement and easily determine blood pressure values.
Highlights
Features
Downloads
- 24 hour ambulatory blood pressure monitoring
- Lightweight and compact
- Oscillometric measuring method
- Automatically adjustment of proper cuff pressure, deflation speed and end of measurement
- New pulse correction algorithm for faster measurement & noise rejection
- Automatic or manual measurement
- Battery Power (2 alkaline or Ni-MH “AA”)
- Configurable measurement intervals to adapt to a specific patient requirements
- Easily output data to analysis software (included with device)
- USB Connectivity
Highlights
- 24 hour ambulatory blood pressure monitoring
- Lightweight and compact
- Oscillometric measuring method
- Automatically adjustment of proper cuff pressure, deflation speed and end of measurement
- New pulse correction algorithm for faster measurement & noise rejection
- Automatic or manual measurement
- Battery Power (2 alkaline or Ni-MH “AA”)
- Configurable measurement intervals to adapt to a specific patient requirements
- Easily output data to analysis software (included with device)
- USB Connectivity
Features
| Blood Pressure Measurement | ||
| Measurement Method | Oscillometric | |
| Measuring Range | Blood Pressure | SYS: 60~280 mmHg DIA: 30~160 mmHg |
| Pulse | 30 ~ 200 bpm | |
| Accuracy | Blood Pressure | +/- 3 mmHg |
| Pulse | +/-5% | |
| Pressurization | Method | Micro pump |
| Maximum Pressure | 299 mmHg | |
| Depressurization | Method | Constant exhaust with controlled leakage valve for safety mechanism – Electromagnetic Valve |
| Interval Setting | OFF, 5, 10, 15, 20, 30, 60, 120 min. | |
| Clock | 24 hour clock, calendar | |
| Memory Data | Up to 600 sets of data | |
| Power Supply | Battery | 2x LR6 (AA) type batteries – alkaline or Nickel-hydrogen type |
| Battery Life | Approx. 200 measurements | |
| Interface | USB1.1 compliant Cable length: 1.5 m or shorter Micro-USB B type terminal can connect to dedicated peripheral (using standard driver software) | |
| Temperature & Humidity | Operating Temperature | 10°C ~ 40°C (50°F ~ 104°F), less than 85% RH (non-condensing) |
| Storage & Transportation | -20°C ~ 60°C (1°F ~ 140°F), less than 95% RH (non-condensing) | |
| External Dimensions | 66(W) x 24.5(H) x 95(D) mm/2.6(W) x 1.0(H) x 3.7(D) inches | |
| Weight | Approx. 120g (0.26lb) without cuff and batteries | |
