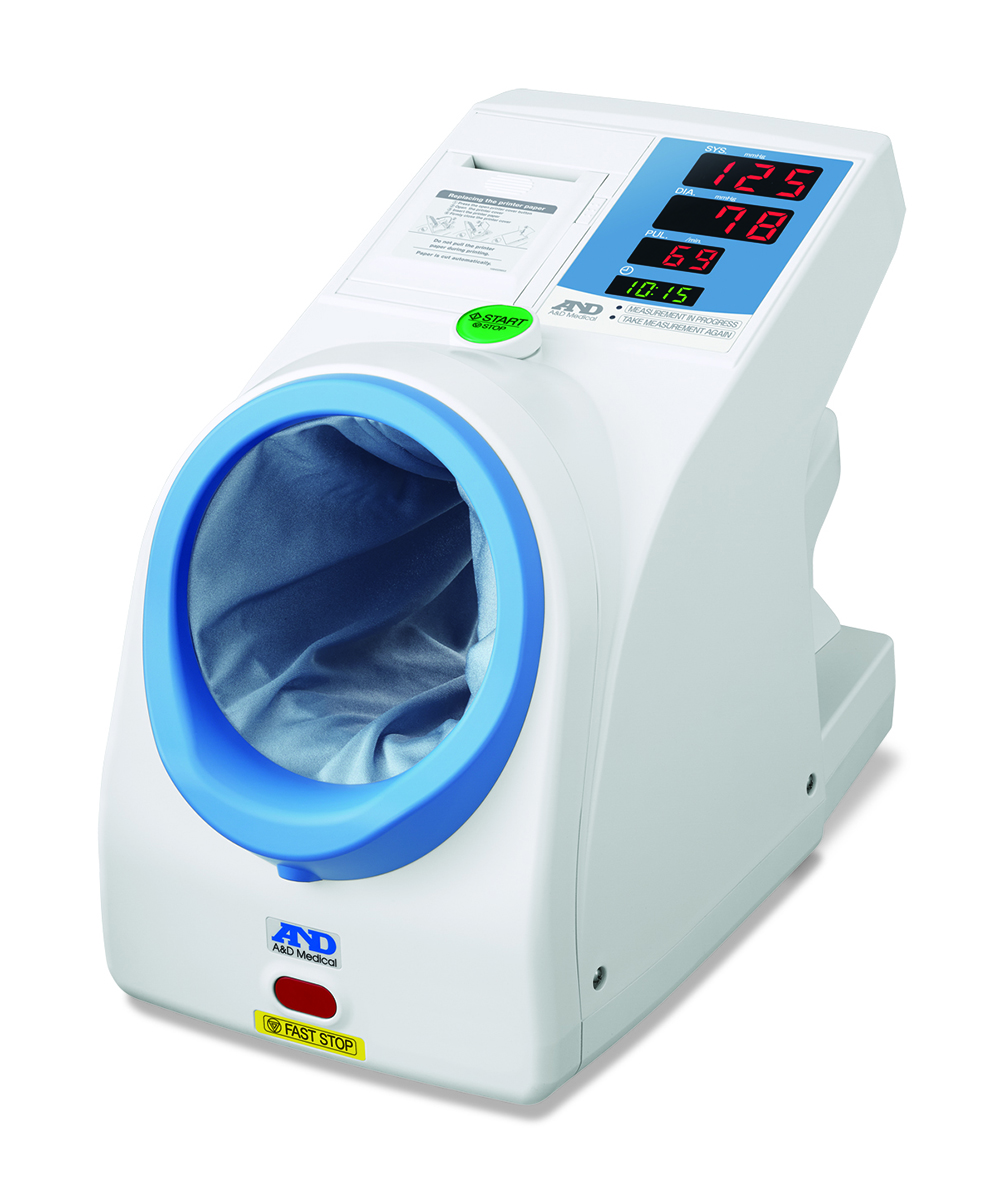

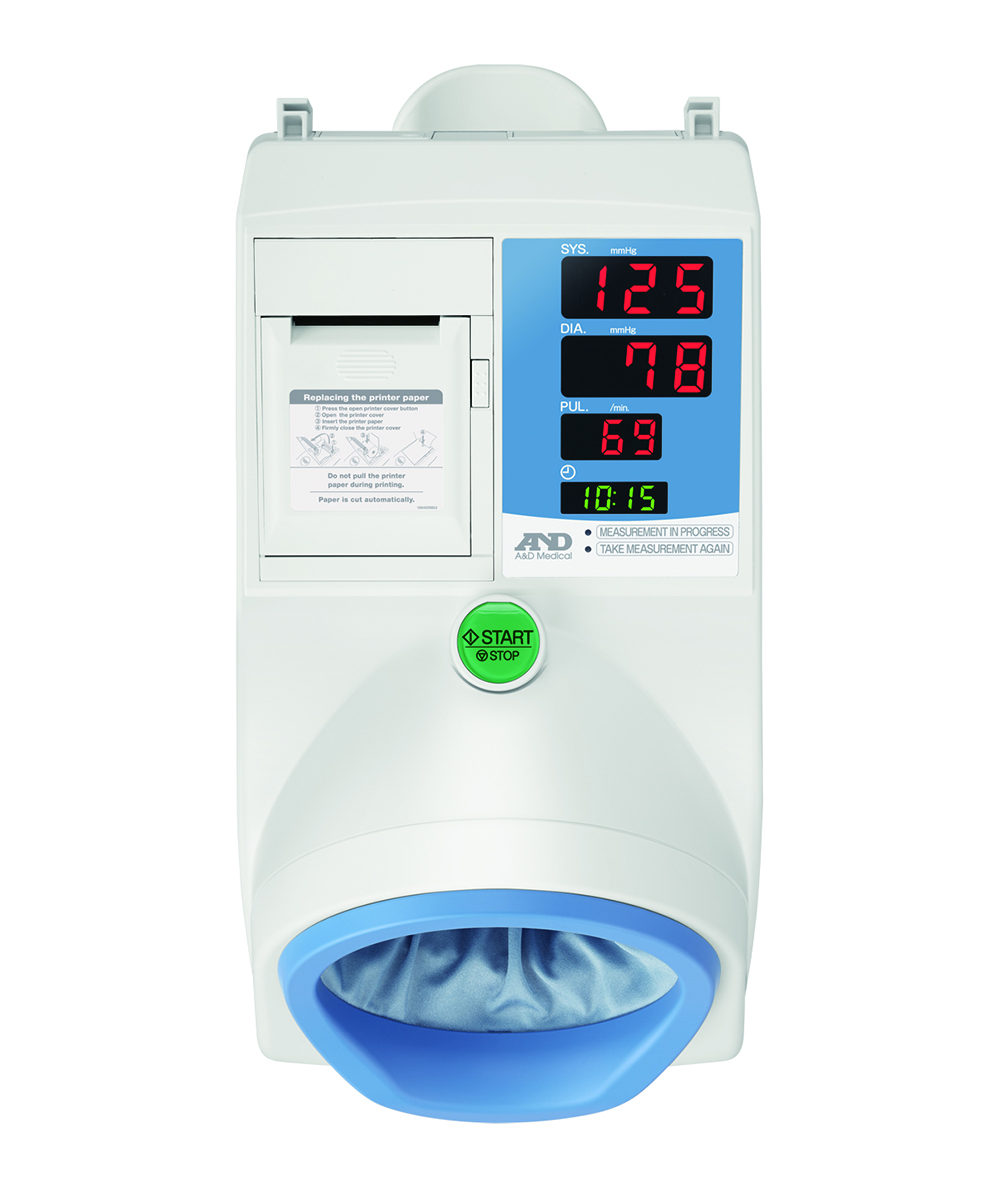

TM-2657P Fully Automatic Blood Pressure Monitors
The TM-2657P is the latest model in the range of freestanding fully automatic blood pressure monitors, whose ground-breaking designs have been well received and have created many new applications, places of use, and markets.
The main reasons for the high reputation of the previous models are their fast and accurate measurement, compact profile, ease-of-use, and durability.
The new TM-2657P has been superbly styled in Japan, having a slim and compact design with increased printout speed, and offers a diverse selection for connectivity.
The TM-2657P helps expand market potential in the various locations and areas in everyday life such as hospitals, medical clinics, health checkups, corporate wellness, pharmacy services, and fitness centers.
Highlights
Features
Downloads

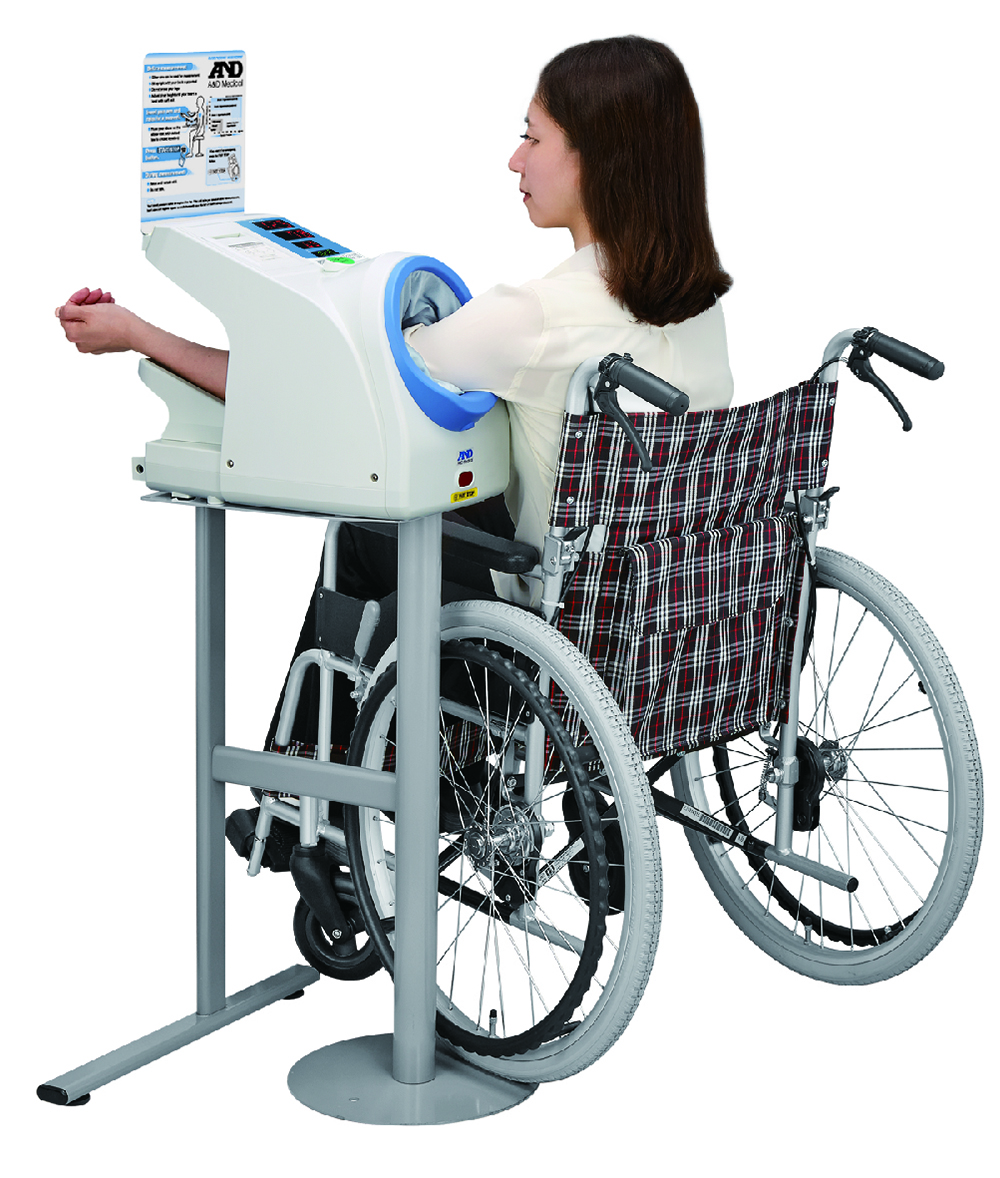

- User-friendly small footprint & barrier-free design
- One-touch measurement
- “Torque Controlled Belt drive Method” (TCBM), cuff fastening method with high accuracy and durability
- Optional extension communication board (RS-232C and/or Bluetooth)
- Reliable high speed printer with easy paper replacement
- Various print formats available upon user request
- Irregular Heart Beat (IHB) indicated on printout
Highlights
- User-friendly small footprint & barrier-free design
- One-touch measurement
- “Torque Controlled Belt drive Method” (TCBM), cuff fastening method with high accuracy and durability
- Optional extension communication board (RS-232C and/or Bluetooth)
- Reliable high speed printer with easy paper replacement
- Various print formats available upon user request
- Irregular Heart Beat (IHB) indicated on printout
Features
| Measurement Method | Oscillometric |
| AC power supply unit | Switching 100-240V AC 50-60Hz |
| Protection against electrical shock | Class I, Type B |
| Pressure display range | 0-299 mmHg |
| NIBP measurement range | SYS 40-270 mmHg, DIA 20-200 mmHg, Pulse 30-240 bpm |
| Measurement accuracy | Pressure: ±3 mmHg, Pulse: ±5% |
| NIBP clinical test | BS EN1060-4:2004, BHS:1993, +/-5mmHg SD:8mmHg |
| Cuff fastening method | Torque Controlled Belt drive Method (TCBM) |
| External dimensions | 241(W) x 324(H) x 390(D) mm (9.5(W) x 13.0(H) x 15.4(D) inches) |
| Weight | Approx. 5.5 kg (12.1 lb) |
| Applicable arm circumference | 7 inches (18.0 cm) to 13.8 inches (35.0 cm) |
| Cuff size | 125 x 300 mm (4.9 x 11.8 inches) |
| Display Type Systolic (SYS), Diastolic (DIA), Pulse rate (PUL) |
3-digit display by LED |
| Counting function | Display of number of measurements to date: up to 999,999 times |
| Applied pressure | Automatic inflation by air pump |
| Pressure detection method | Capacitance type pressure transducer |
| Operating conditions | Temperature: 10-40 °C, humidity: 30-85% RH, no condensing |
| Transport/Storage conditions | Temperature: -20-60 °C, humidity: 10-95% RH, no condensing |
| Safety device (Electrical) | Quick release when START/STOP button is pressed Quick release when FAST STOP button is pressed |
| Clock Function | Clock Display, Date & Time (2015-2050) |
