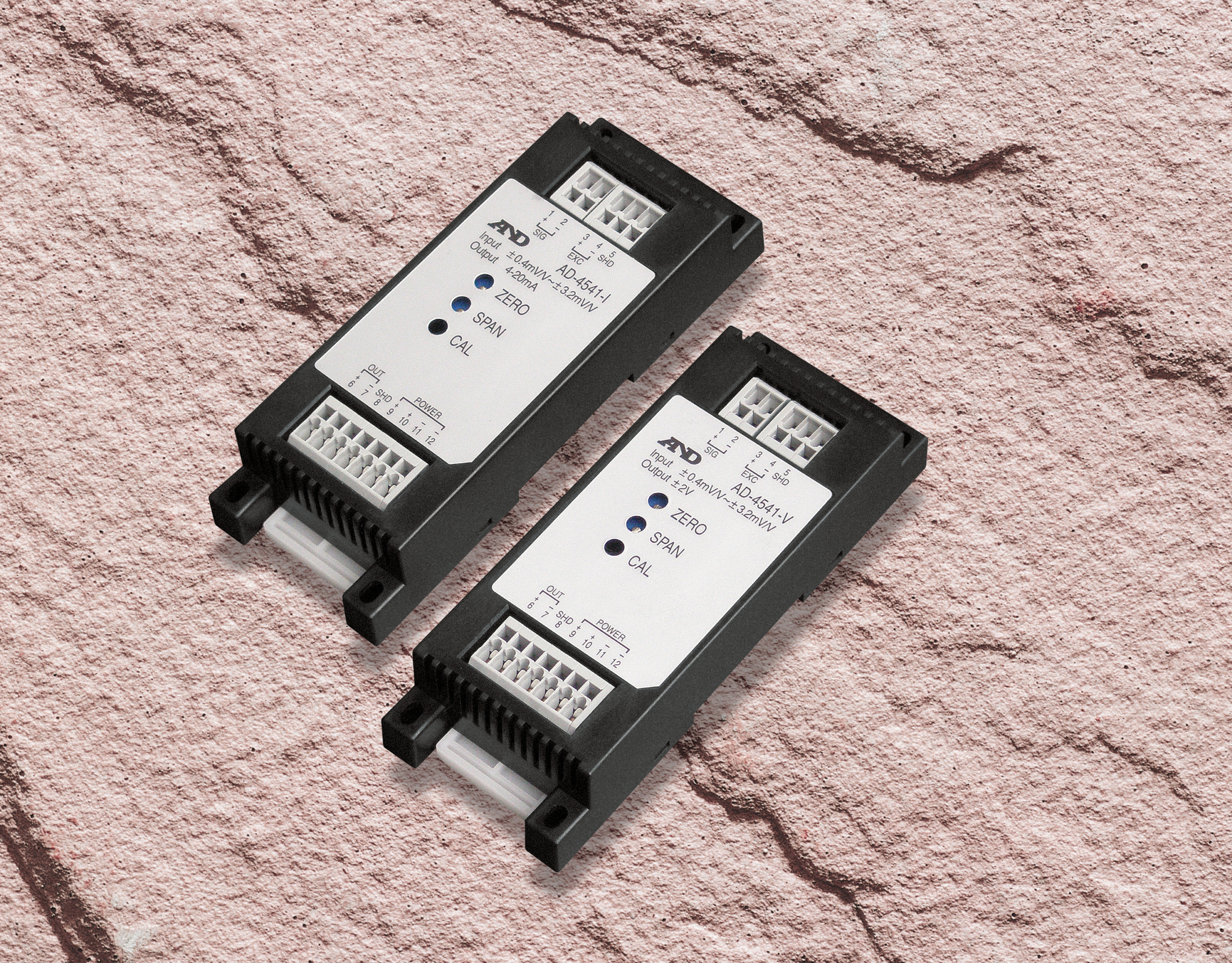

AD-4541-V/I Ultra-slim analog signal conditioners
The AD-4541-V and AD-4541-I analog signal conditioners can convert the signal received from a bridge type sensor such as a load cell, pressure sensor, strain gauge, etc. to a voltage output (AD-4541-V / -2V to +2V) or a current output (AD-4541-I / 4-20mA).
Highlights
Features
Downloads
- Ultra-slim, lightweight and easy-to-install
- Calibration can be performed with the ZERO / SPAN volume controls or the CAL switch
- Provides a wide-range zero adjustment (±1.6mV/V) / span adjustment (0.4~3.2mV/V) for use with various bridge type sensors
- No crimping terminal is necessary because a spring clamp terminal block is used for easy wiring.
Highlights
- Ultra-slim, lightweight and easy-to-install
- Calibration can be performed with the ZERO / SPAN volume controls or the CAL switch
- Provides a wide-range zero adjustment (±1.6mV/V) / span adjustment (0.4~3.2mV/V) for use with various bridge type sensors
- No crimping terminal is necessary because a spring clamp terminal block is used for easy wiring.
Features
| Measurement points | 1 |
| Sensor type | Strain gauge sensor |
| Sensor power supply | 5 V, up to 3 sensors of 350 Ω or 1 sensor of 120 Ω |
| Calibration method | Actual load calibration Digital span (actual load not required) |
| Measurement range | Zero adjustment range : -35 to +35 mV (-7 to 7 mV/V) Span adjustment range : -35 to +35 mV (-7 to 7 mV/V) Minimum guaranteed input sensitivity : 0.15 µ V/d Minimum display input sensitivity : No limit |
| Maximum display | ±999999 |
| Linearity | 0.005% F.S. within ±1 digit |
| A/D conversion | 100 times/sec. |
| Temperature coefficient | Zero : ±0.1 µ V/°C (Typ.) Span : ±8 ppm/°C (Typ.) |
| Panel area | Measurement display area: Red 7-segment 6-digit LED and minus display, Character height 9.2mm, 5 status indicators |
