LCB03 (Aluminum) Compact design for bench scale, single point compact load cells

LCB03 (Aluminum) Compact design for bench scale, single point compact load cells

Enquiry



  • Ultra compact design –Just 13 cm in length
  • Adjusted for 4 corner loads
  • Moisture proof
  • Wide model selection -8 models

Highlights

  • Ultra compact design –Just 13 cm in length
  • Adjusted for 4 corner loads
  • Moisture proof
  • Wide model selection -8 models

Features

Rated capacities 3 kgf, 6 kgf, 10 kgf, 15 kfg, 20 kfg, 25 kgf, 30 kgf, 35 kgf
Rated output 2 mV/V±10%
Safe overload 150% of R.C.
Maximum overload 200% of R.C.
Combined error 0.02% of R.O.
Repeatability 0.02% of R.O.
Creep 0.02% of R.O.(30 min)
Maximum excitation voltage DC15 V
Zero balance ±5% of R.O.
Input terminal resistance 420 ± 30 Ω
Output terminal resistance 350 ± 5 Ω
Insulation resistance Greater than 2000 MΩ
Operating temperature -10 °C to 40 °C
Temperature effect Zero 0.023% of R.O./10 °C
Span 0.014% of Load/10 °C Typ.
Cable diameter/Length φ3.5/0.4 m

Downloads

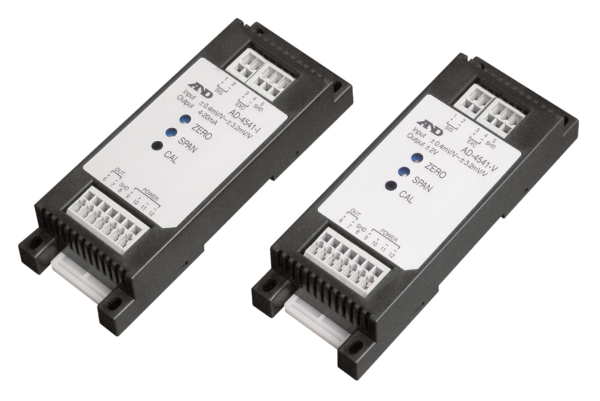

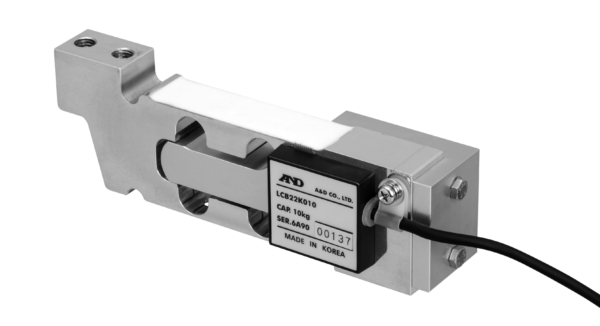

AD-4541-V/I Ultra-slim analog signal conditionersLCB22 Single-point Aluminum Load Cell with Built-in Overload Stopper
