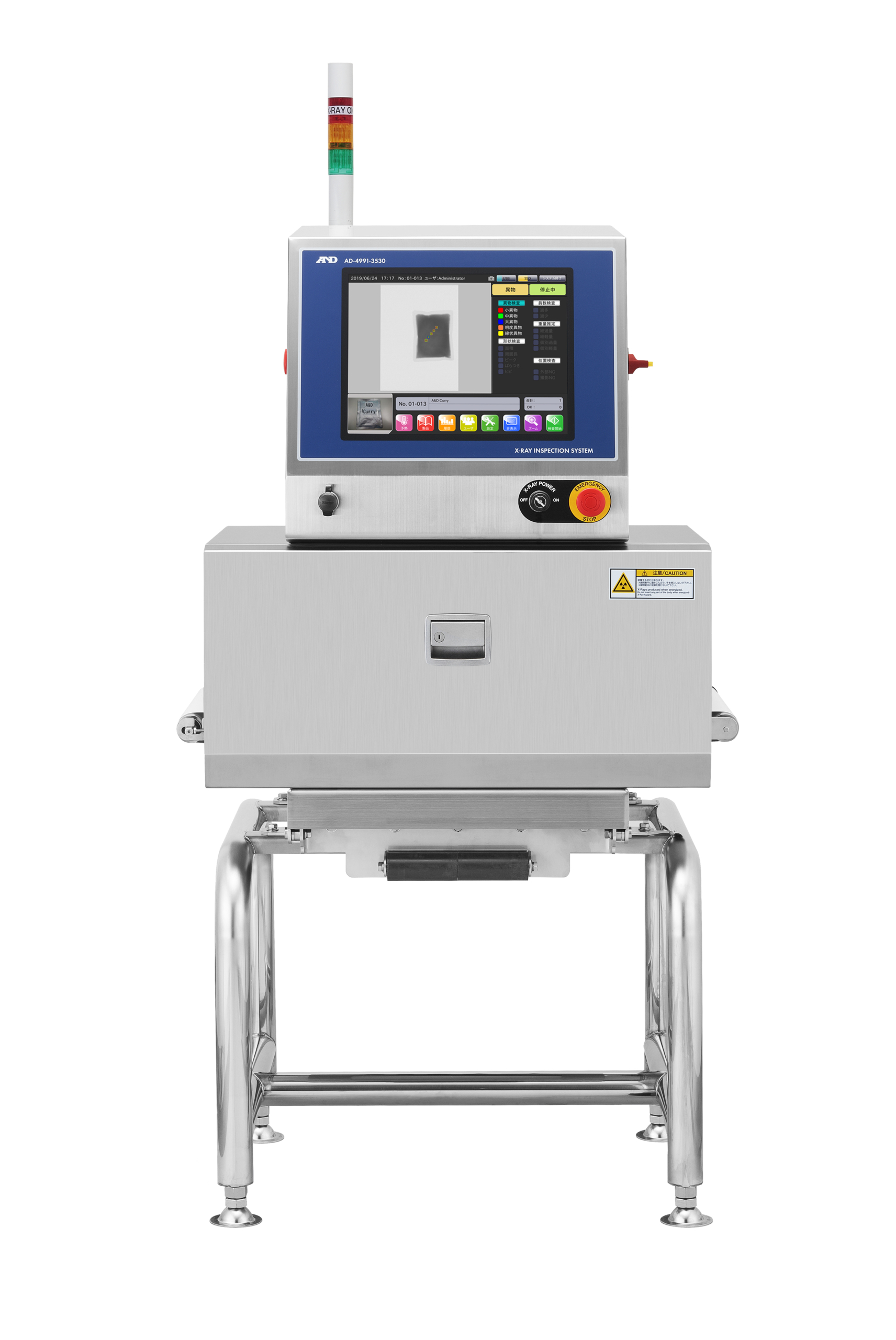

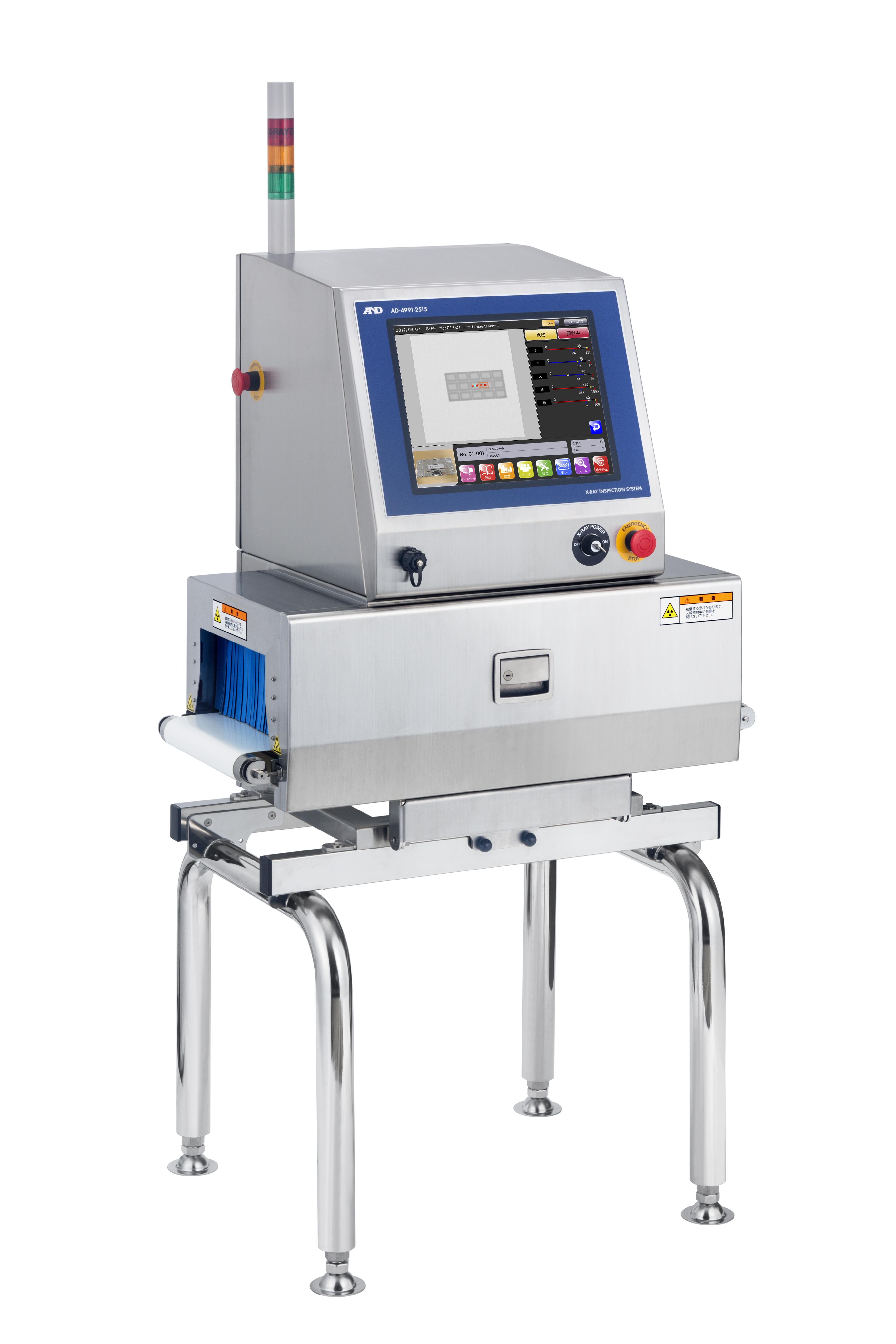

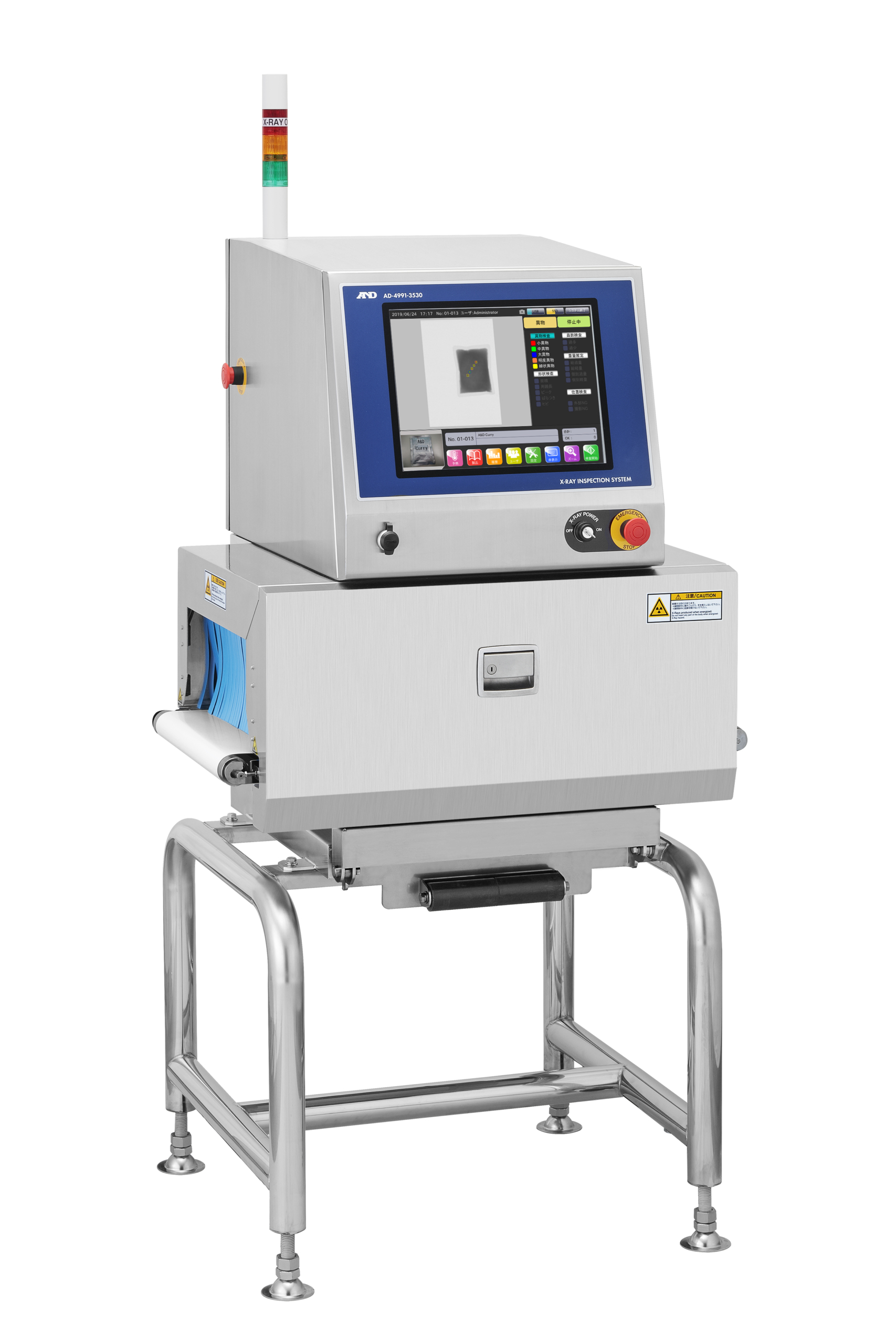

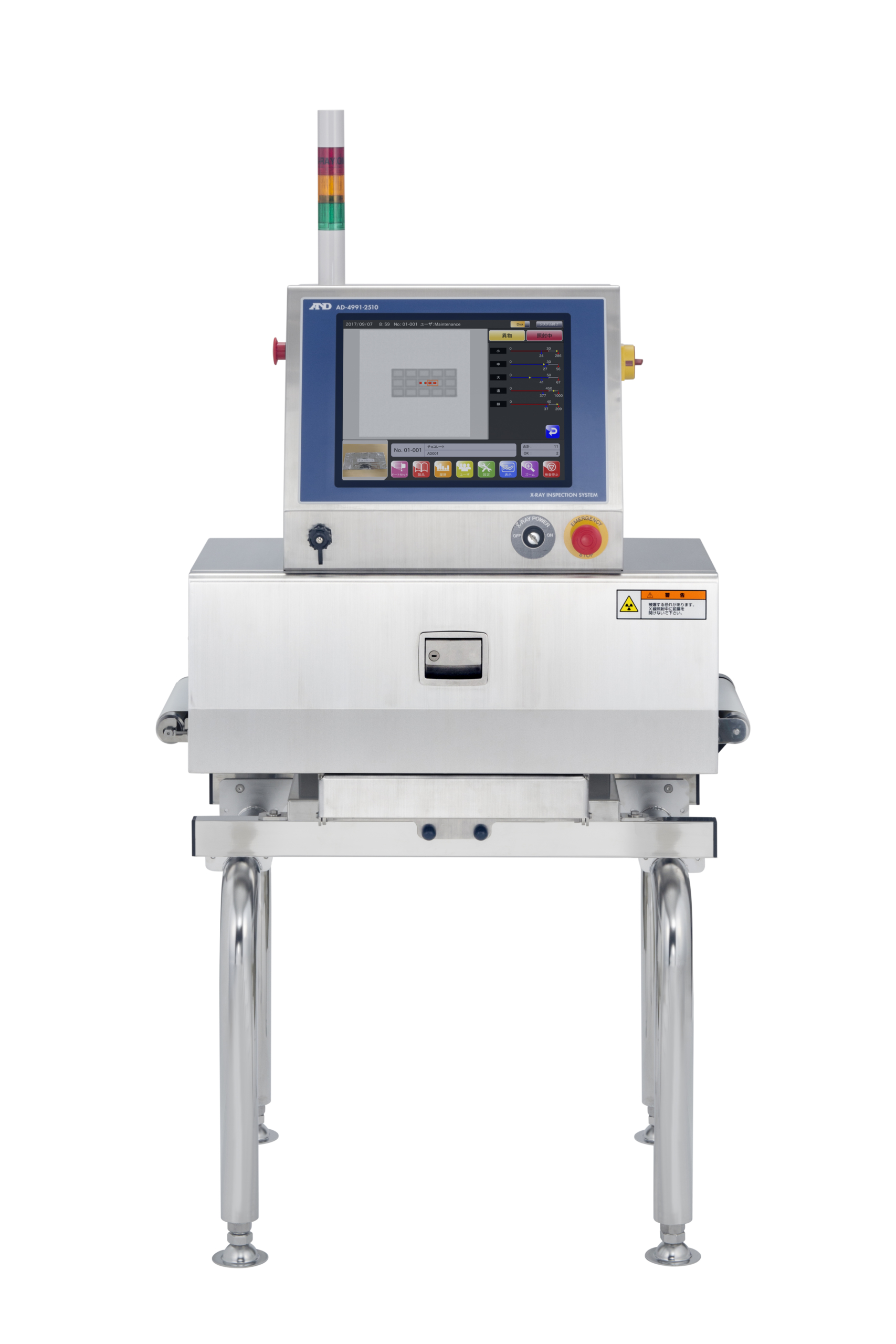

AD-4991 Series X-ray Inspection Systems
With its compact design, and cutting-edge X-ray technology, the ProteX Series X-ray inspection system provides next level quality assurance.
Highlights
Features
Downloads
- Most compact system on the market.
- Simple GUI with a 15” color touchscreen provides for easy operation
- Quick and stable product setup
- Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
- Suitable for use in HACCP program
- Easy cleaning and replacment with quick release belt and curtains
- Stainless and sloped surfaces minimize water collection and maximize cleanability.
- Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure.
Highlights
- Most compact system on the market.
- Simple GUI with a 15” color touchscreen provides for easy operation
- Quick and stable product setup
- Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
- Suitable for use in HACCP program
- Easy cleaning and replacment with quick release belt and curtains
- Stainless and sloped surfaces minimize water collection and maximize cleanability.
- Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure.
Features
| Model | AD-4991-2510 | AD-4991-2515 | AD-4991-3530 |
| Conveyor width | 250mm | 350mm | |
| System length | 800mm | ||
| Conveyor height | 720-860mm | ||
| X-ray output | 100W (50kV_2mA) | 150W (50kV_3mA) | 300W (75kV_4mA) |
| Conveyor speed | 10 to 45m/min | 10 to 70m/min | 10 to 45m/min |
| Maximum conveying capacity | 5kg (depends on speed for AD-4991-2515) | ||
| Operation temperature / humidity | 0 to 35℃ / humidity below 85% (with no condensation) | ||
| Dust / water resistance specifications | IP66 for inspection room | ||
| Power supply | Single phase AC100 to 240V(±10%), 50/60Hz, D class grounding ※1 | ||
| The maximum power consumption | About 570VA ※2 | About 670VA ※2 | About 900VA ※2 |
| Weight | About 90kg | About 105kg | About 165kg |
| Display | 15 inch touch panel color display | ||
| Casing material | SUS304 | ||
| Belt | Antifungal/antibacterial Polyurethane compounds | ||
| Shilding curtain | Tungsten | ||
| X-ray safety | Leakage less than 1μSv/h | ||
| Communication functions | Modbus TCP / Modbus RTU / RS232C/485 (selectable) / TCP/IP / USB (for PostScript printer, USB memory, data storage, image import use) | ||
| External input | Non – voltage contact input 8 points ※3 | ||
| External output | Relay output 8 points ※3 | ||
| Number of recorded items | 1000 items (10 groups x 100 items) | ||
| Beam diagram (mm) |  |
 |
 |
※1 The cable doesn’t come as standard.
※2 The maximum power consumption when a rejector is connected.
※3 8points can be added with an option.
