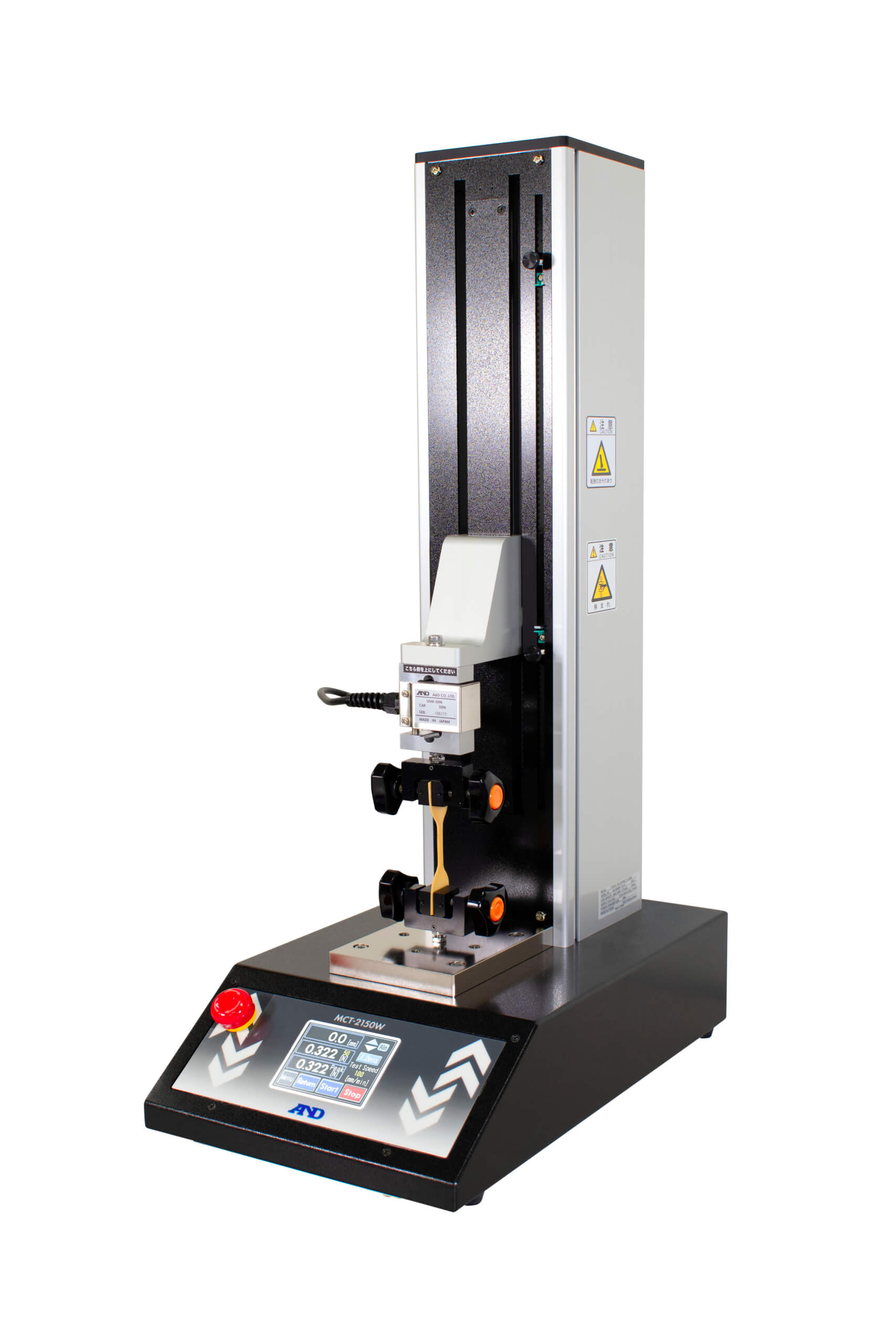

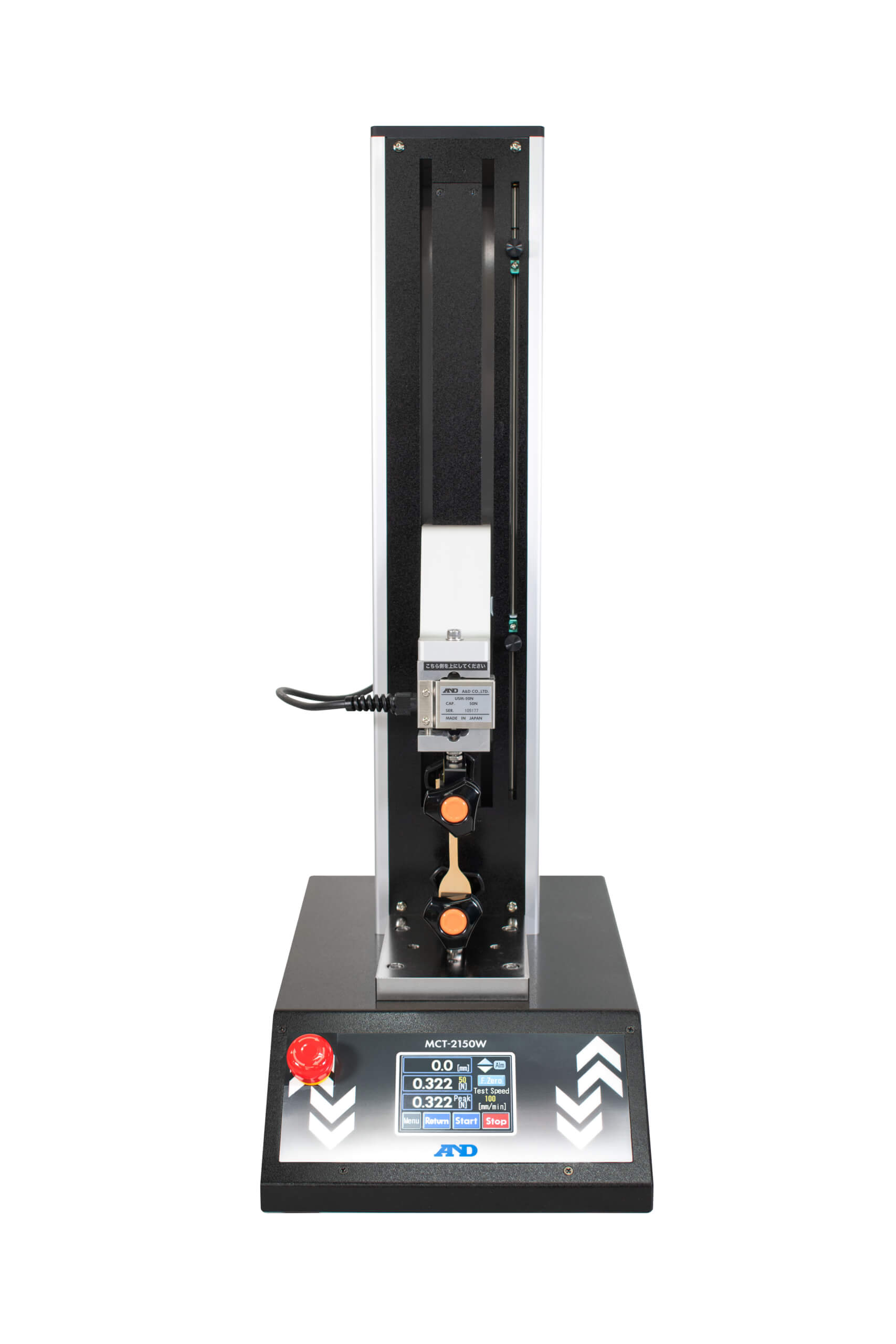

Table Top Universal Testing Machine MCT Series (Force Tester)
Strength you can see!
Table top universal testing machines.
Great alternatives to force and push pull gauges.
Color touch panel – Precise and easy to use
Three models and plenty of jigs available for various application
- Color touch panel for clear visibility and simple operation
- High-precision load cell included; just plug in for quick use
- Easy-to-use digital testing-speed settings
- Displacement display included standard
- Includes data capture software for PCs
Highlights
Features
Downloads
- Lineup includes the general purpose MCT-1150, the rigid and durable MCT-2150 and advanced MCT-2150W with high precision ball screw and thicker crosshead
- Space-saving design for use on a table.
- Precision load cell ready for immediate use. Automatic calibration on start up lets you jump straight into testing. No need to manually calibrate the load cell.
- Various jig options fit your applications
- Standard data capture software (MSAT-Lite).
Highlights
- Lineup includes the general purpose MCT-1150, the rigid and durable MCT-2150 and advanced MCT-2150W with high precision ball screw and thicker crosshead
- Space-saving design for use on a table.
- Precision load cell ready for immediate use. Automatic calibration on start up lets you jump straight into testing. No need to manually calibrate the load cell.
- Various jig options fit your applications
- Standard data capture software (MSAT-Lite).
Features
| Model | MCT-1150 (General purpose model) |
MCT-2150 (High performance model) |
| Table / floor model | Table model | |
| Maximum capacity | 500N | |
| Crosshead stroke | 400mm | 370mm |
| Effective stroke*1 | 315mm | 285mm |
| Crosshead speed | 10-300mm/min: Within 5% of the set value*2 | |
| Crosshead speed setting | Digital setting: 1mm/min increments within the above range | |
| Crosshead speed and load capacity | Full speed range at maximum capacity | |
| Crosshead return speed | Three speed settings: 10, 100, 300mm/min | |
| Load measurement accuracy | ±0.2% F.S | 500N to 50N: ±0.2% F.S 50N to 5N: Within 2% of indicator value 5N and lower: Within 0.1N |
| Load display resolution | 0.1N | 0.01N (0.1N will display for values over 100N) |
| Load calibration | Auto-zero function (calibration unnecessary) | |
| Displacement display | 000.0mm (Min. 0.1mm) | 00.00mm (Min 0.01mm: 0.1mm will display for values over 100mm) |
| Included software | MSAT-Lite, MCT-Logger | |
| Safety mechanisms | 1. Upper and lower displacement stroke limits 2. Overload limit (automatic shutdown when load cell passes 105% of rated capacity) 3. Emergency stop switch |
|
| Dimensions (W × D × H) | 250 × 405 × 711mm | |
| Weight | 17kg | 18kg |
| Power supply | AC90 to 240V 1Ø 50/60Hz | |
| Power consumption | 90W | |
| Operating ambient condition | Temperature: 5 to 40°C Humidity: 20 to 80%RH | |
| Recommended ambient conditions | Temperature: 23 ±2°C Humidity: 50 ±10%RH | |
| Standard equipment | Instruction manual, 500N capacity load cell, computer software (CD-ROM), USB cable | |
*1 When using standard screw action jaws
*2 Unladen
