LCB04 (Aluminum) Adjusted for 4 corners, useful for platform scale, single point compact load cells
LCB04 (Aluminum) Adjusted for 4 corners, useful for platform scale, single point compact load cells - Image 2
LCB04 (Aluminum) Adjusted for 4 corners, useful for platform scale, single point compact load cells - Image 3

LCB04 (Aluminum) Adjusted for 4 corners, useful for platform scale, single point compact load cells

Enquiry



  • Ultra compact design -Just 15cm in length
  • Calibrated for 4 corner loads
  • Moisture proof
  • 4 models to choose from

Highlights

  • Ultra compact design -Just 15cm in length
  • Calibrated for 4 corner loads
  • Moisture proof
  • 4 models to choose from

Features

Rated capacities 60 kgf, 100 kgf, 150 kgf, 250 kgf
Rated output 2 mV/V±10%
Safe overload 150% of R.C.
Maximum overload 200% of R.C.
Combined error 0.02% of R.O.
Repeatability 0.02% of R.O.
Creep 0.02% of R.O. (30 min)
Maximum excitation voltage DC15 V
Zero balance ±5% of R.O.
Input terminal resistance 420 ± 30 Ω
Output terminal resistance 350 ± 5 Ω
Insulation resistance 2000 MΩ (B/E DC50 V)
Operating temperature -10 °C to 40 °C
Temperature effect Zero 0.023% of R.O./10 °C
Span 0.014% of Load/10 °C
Cable diameter/Length φ3.5/1.5 m
Maximum platform size 400 mm × 400 mm

Downloads

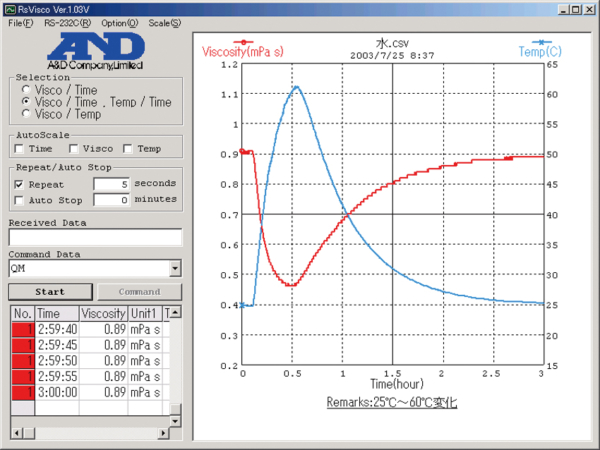

WinST for AD4402 (Freeware)WinCT-Viscosity
