- Suitable for load distribution and press pressure measurement
- Rated capacities: 100N (10.20kg) to 1kN (102.0kg)

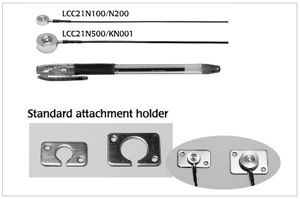

- Standard attachment holder
Highlights
- Suitable for load distribution and press pressure measurement
- Rated capacities: 100N (10.20kg) to 1kN (102.0kg)
- Standard attachment holder
Features
| Rated output | 1mV/V or more | |
| Safe load limit | 150% of R.C. | |
| Combined error | 0.5% of R.O. | |
| Recommended excitation voltage | DC5 V | |
| Maximum excitation voltage | DC5 V | |
| Zero balance | ±100% of R.O. | |
| Input terminal resistance | 1 kΩ ± 0.1 kΩ | |
| Output terminal resistance | 1 kΩ ± 0.01 kΩ | |
| Insulation resistance | 500 MΩ / DC50 V | |
| Compensated temperature range | 0 °C to 70 °C | |
| Permissible temperature range | -10 °C to 80 °C | |
| Temperature effect | Zero | 0.5% of R.O. / 10 °C Typ. |
| Span | 0.5% of Load / 10 °C Typ. | |
| Cable diameter/Length | φ2 mm / 2 m | |
| Dustproof/Waterproof | IP64 | |
| Standard attachment holder | 1 piece | |
