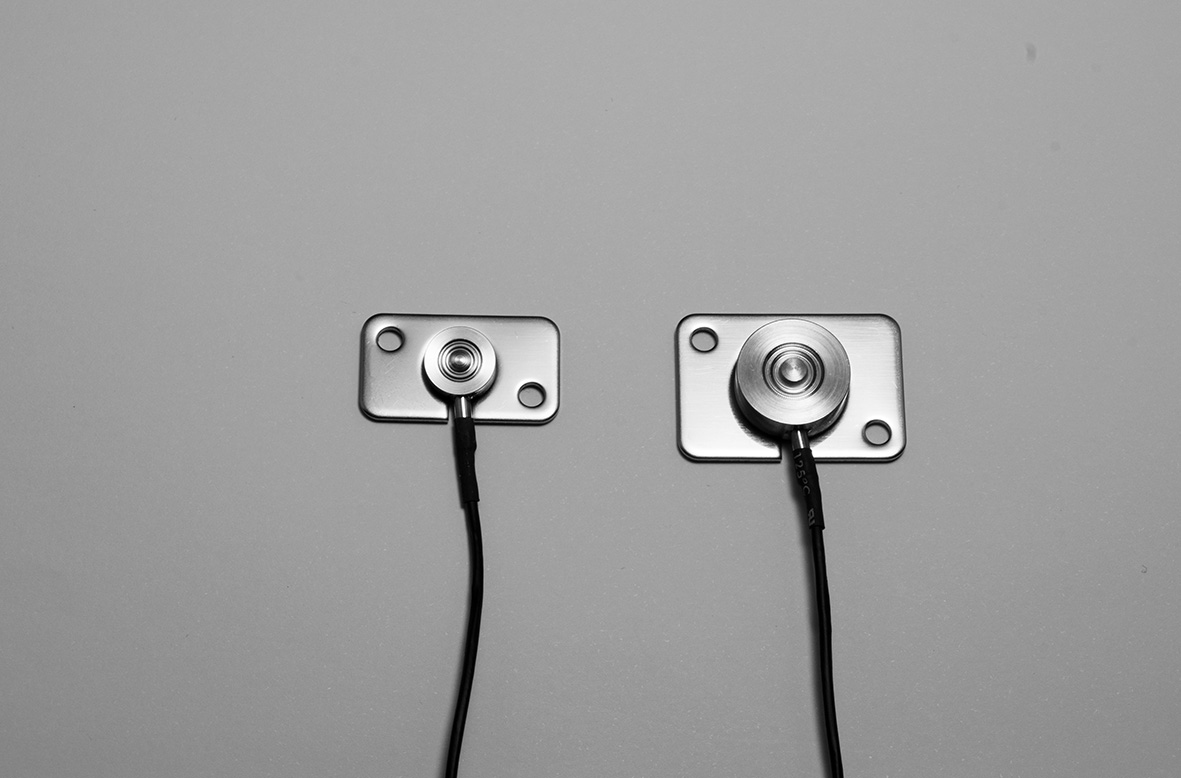

- Suitable for load distribution and press pressure measurement
- Rated capacities: 100N (10.20kg) to 1kN (102.0kg)

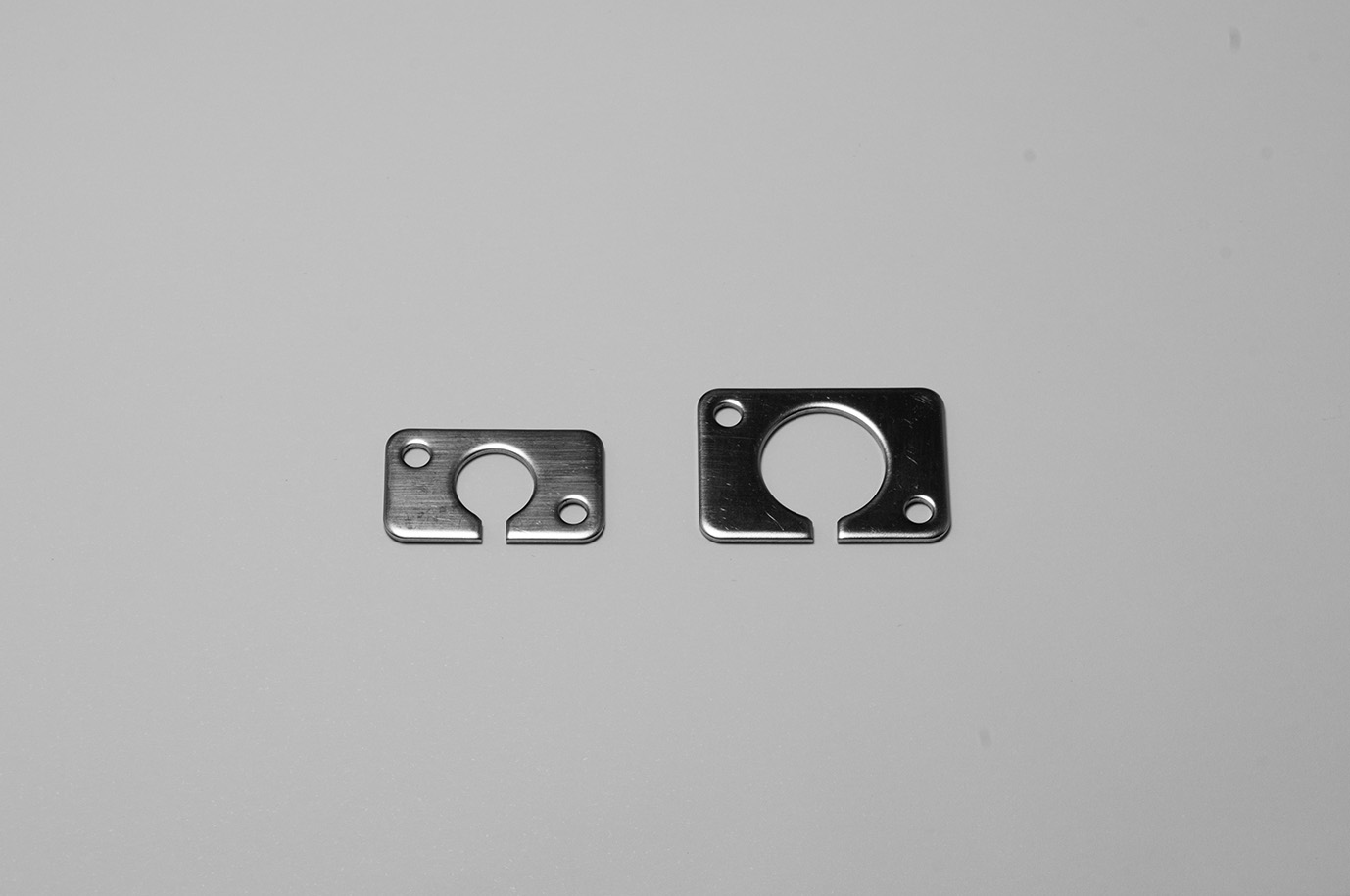

- Include standard attachment holder 1 piece and amplifier case holder 1 set
Highlights
- Suitable for load distribution and press pressure measurement
- Rated capacities: 100N (10.20kg) to 1kN (102.0kg)
- Include standard attachment holder 1 piece and amplifier case holder 1 set
Features
| Safe load limit | 150% of R.C. | |
| Combined error | 0.5% of R.O. | |
| Supply voltage | DC5 V ± 0.25 V less than 16mA | |
| Load resistance | More than 5 kΩ | |
| Output voltage *1 | 1 V to 4 V | |
| Zero voltage | 1 V ± 0.04 V | |
| Span voltage | 2 V ± 0.01 V (1 V to 3 V) | |
| Insulation resistance | 500 MΩ / DC50 V between signal wires and load cell | |
| Compensated temperature range | 0 °C to 70 °C | |
| Permissible temperature range | -10 °C to 80 °C | |
| Temperature effect | Zero | 0.6% of R.O. / 10 °C Typ. |
| Span | 0.6% of Load / 10 °C Typ. | |
| Frequency characteristics | 100Hz (–3dB) | |
| Cable diameter/length | From load cell to amplifier | φ2 mm / 2 m |
| From amplifier | φ6 mm / 0.5 m | |
| Dustproof/Waterproof | Load cell IP64 | |
| Standard attachment holder | 1 piece | |
| Standard amplifier case holder | 1 set | |
| Load [% of R.C.] | 0% | 100% | 150% |
| *1 Output voltage | 1V | 3V | 4V |
