STB Series
Tabletop Material Testing Instruments

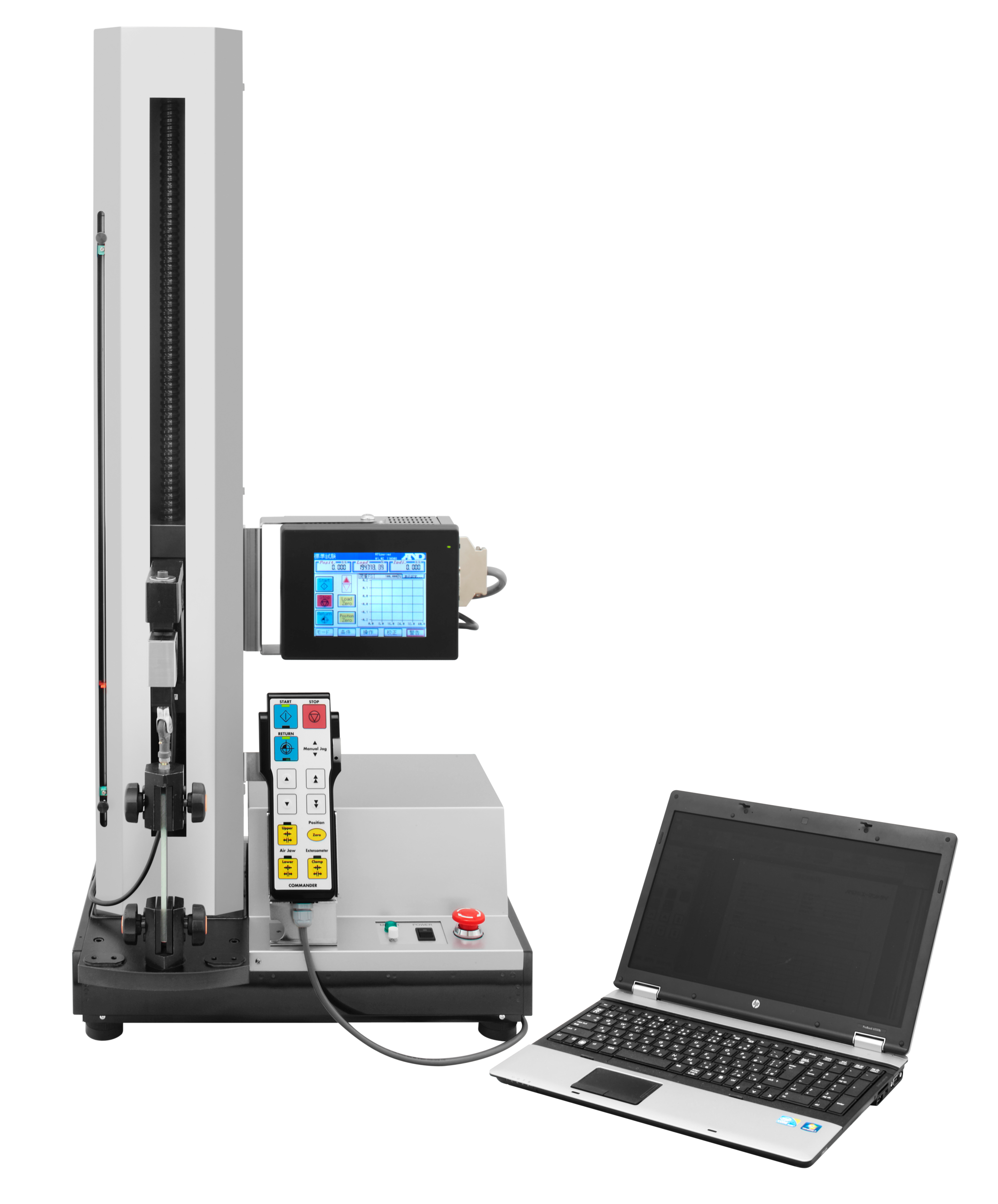

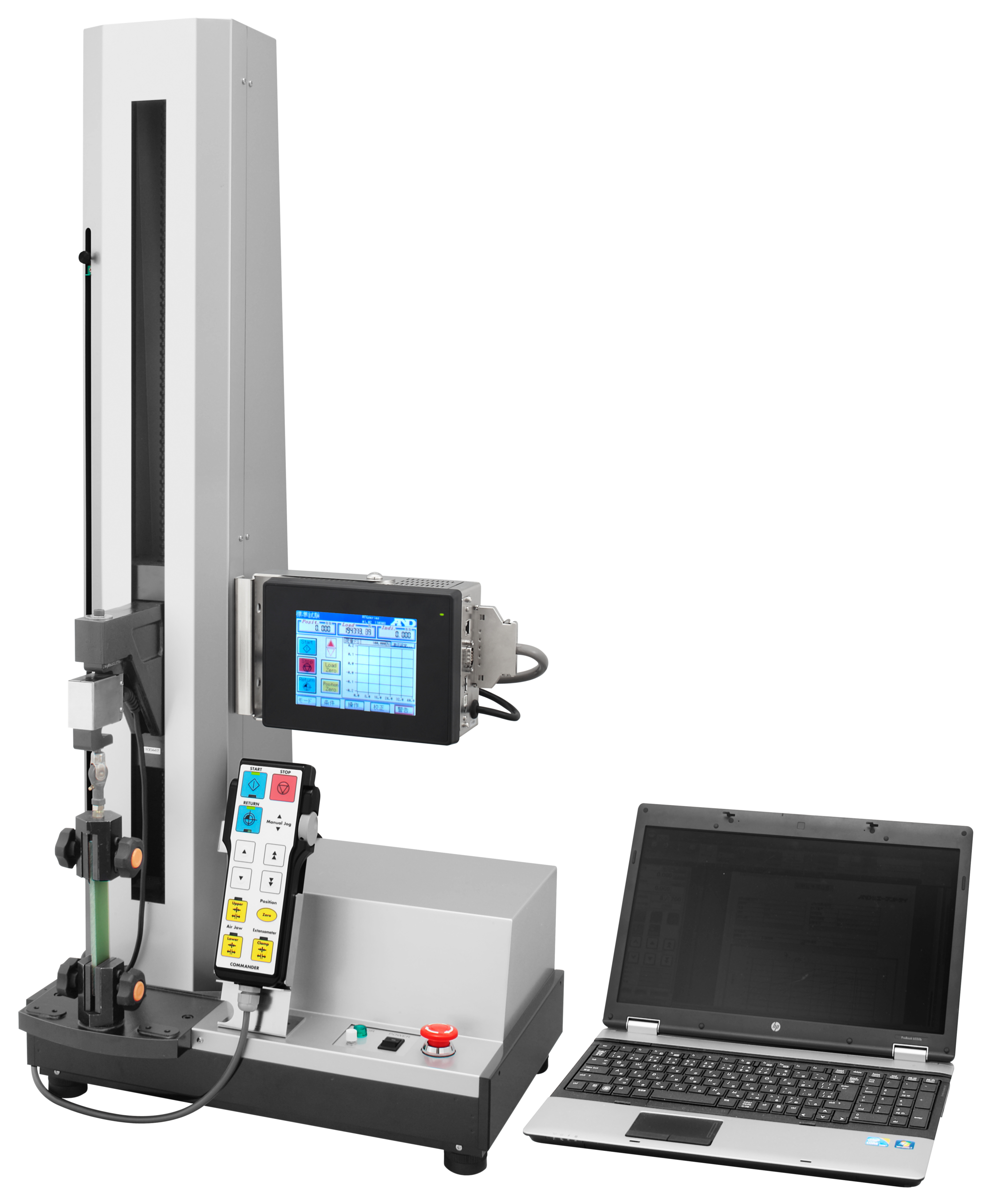

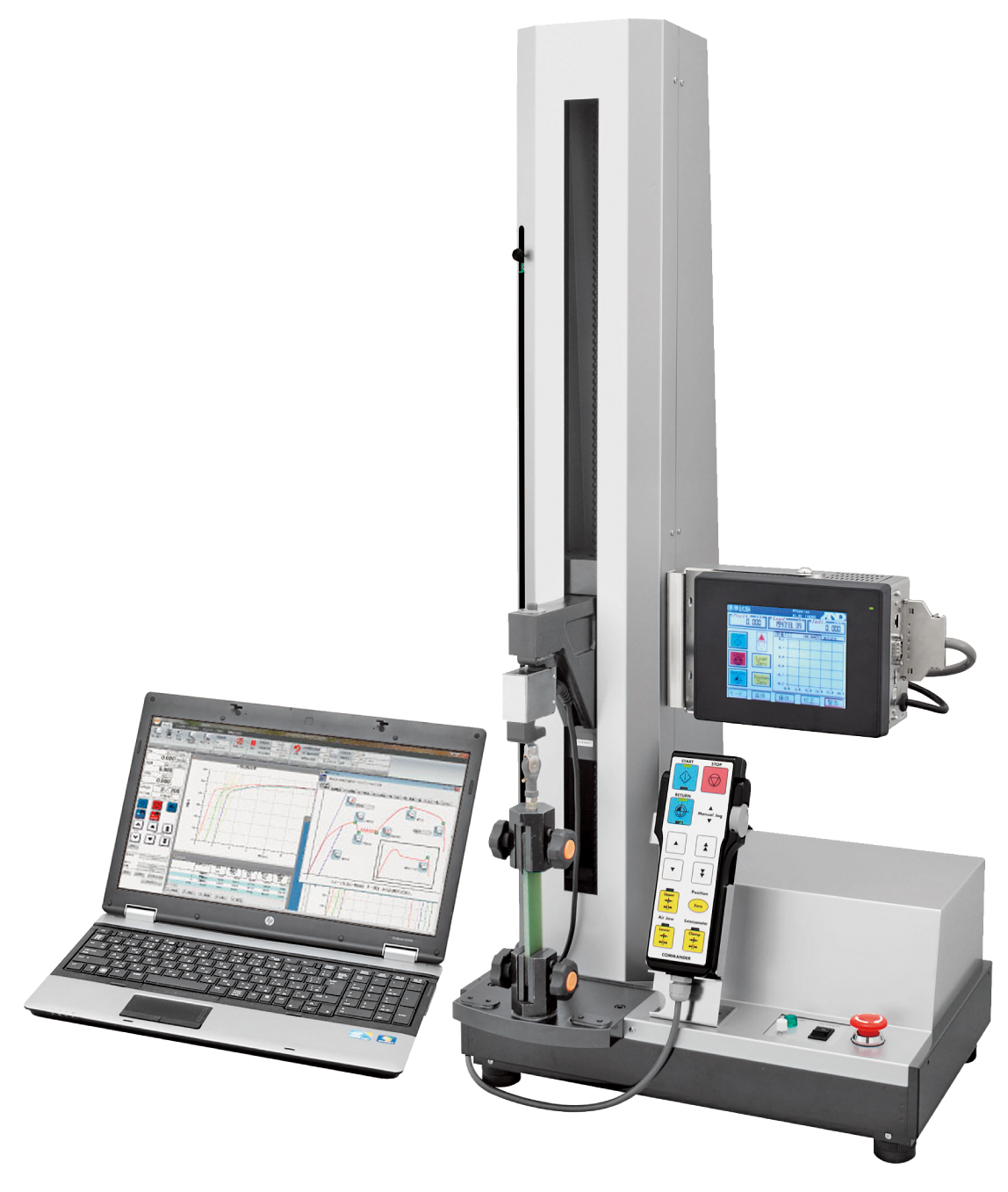

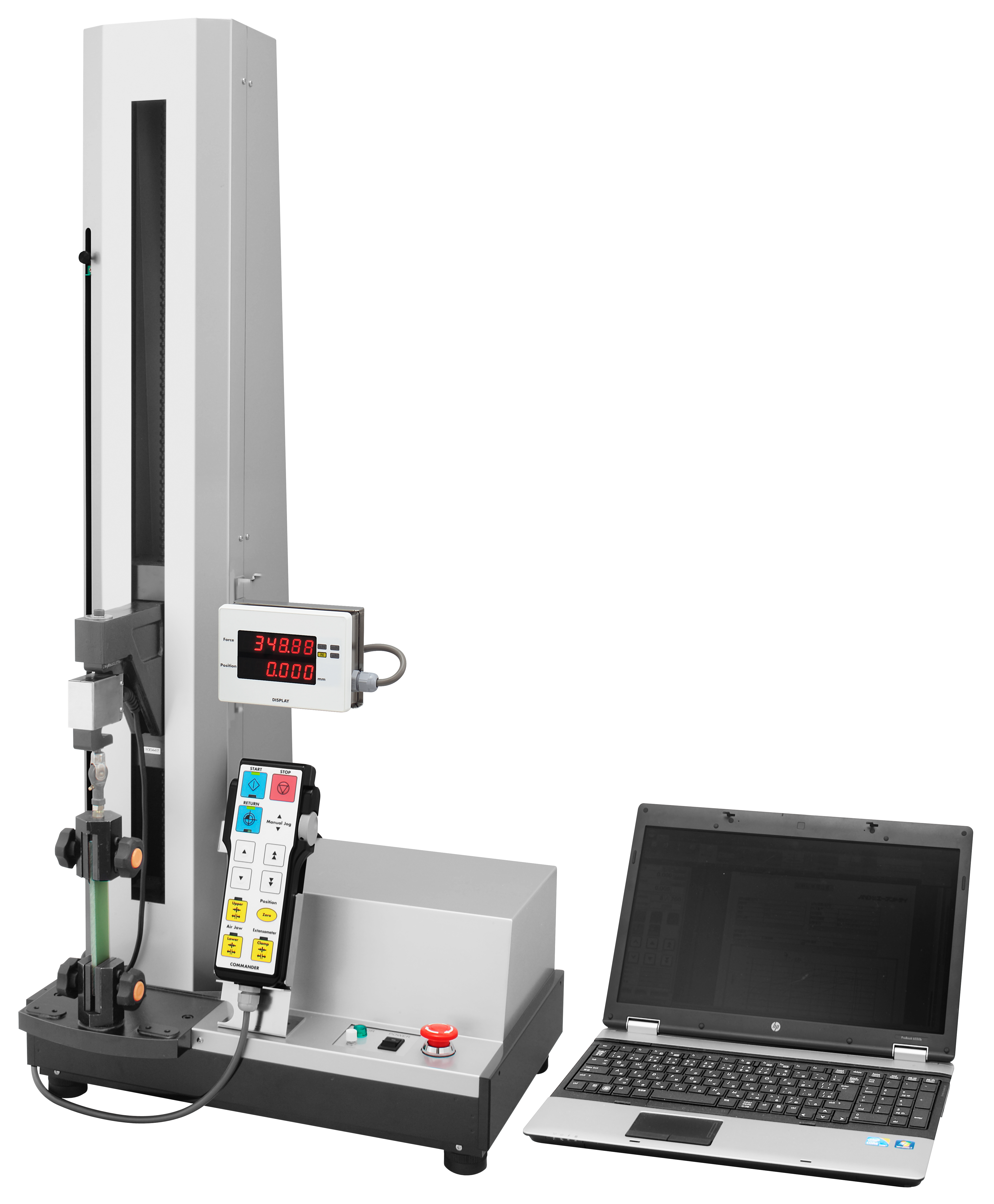

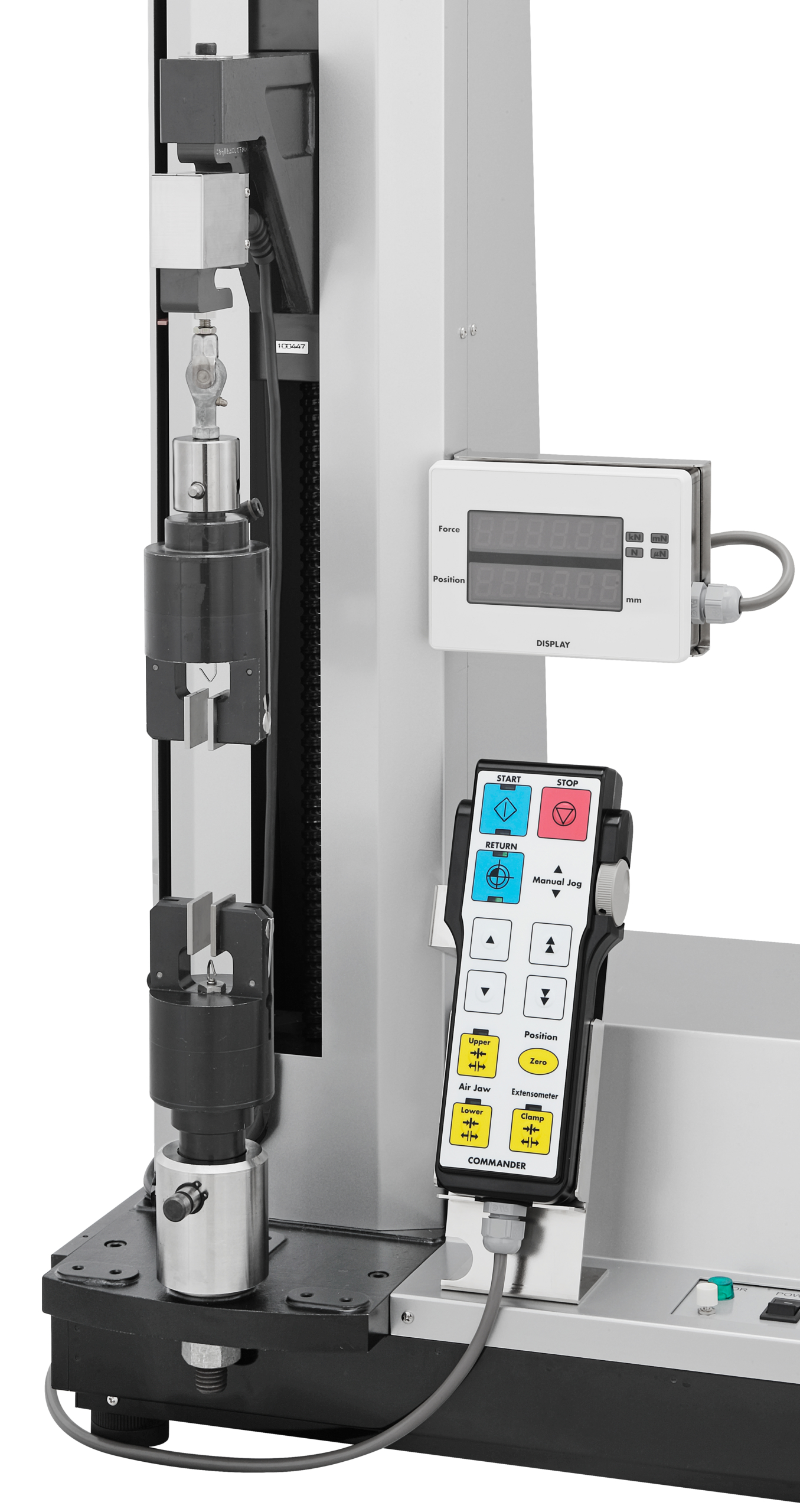

The STB Series is a lightweight and compact tension/compression testing device for tabletop use which employs a single column design.
Highlights
Features
Downloads
- High speed sampling rate of 0.2 msec meeting top international standards (when using TACT)
- All condition settings can be set from PC
- Manual range settings are not required with a fully automatic adjusting range
- Comes with Grade 1 high level accuracy as a load measurement testing machine
- Input signals for a maximum of 11 channels
- Frame of main unit has increased rigidity up to 30% higher than competitors’ models
- Color display touch panel – Visibility and ease of use have been vastly improved with the color display of test machine data and operating conditions
Highlights
- High speed sampling rate of 0.2 msec meeting top international standards (when using TACT)
- All condition settings can be set from PC
- Manual range settings are not required with a fully automatic adjusting range
- Comes with Grade 1 high level accuracy as a load measurement testing machine
- Input signals for a maximum of 11 channels
- Frame of main unit has increased rigidity up to 30% higher than competitors’ models
- Color display touch panel – Visibility and ease of use have been vastly improved with the color display of test machine data and operating conditions
Features
Constant Temperature Testing Device
Loading System: Closed loop micro-computer controlled digital servo

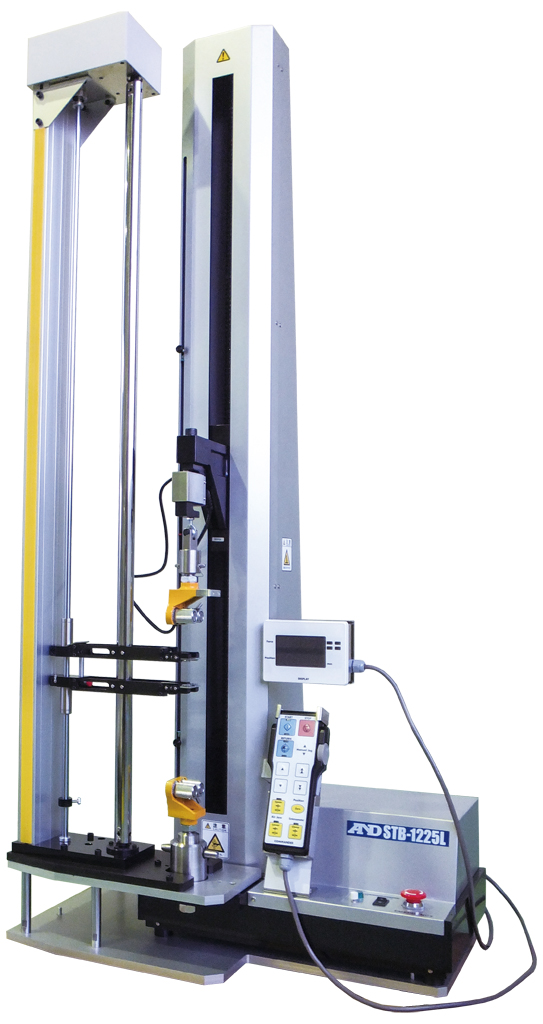

| Model | STB-1225L | STB-1225S |
| Max. loading capacity | 2.5kN (250kgf) | |
| Effective stroke | 850mm | 550mm |
| Crosshead speed | 0.05-1000mm/min. (0.01mm/min.) | |
| Crosshead random speed | Set with 0.01 mm/min. step | |
| Crosshead speed accuracy | +/-0.5% | |
| Return speed | 1000mm/min. or 500mm/min. | |
| Crosshead manual operation | Position the crosshead first using UP/DOWN switches & use manual button to adjust fine position. | |
| Dimensions | 470 x 335 x 1450 mm | 470 x 335 x 1050 mm |
| Weight | 56kg | 43kg |
