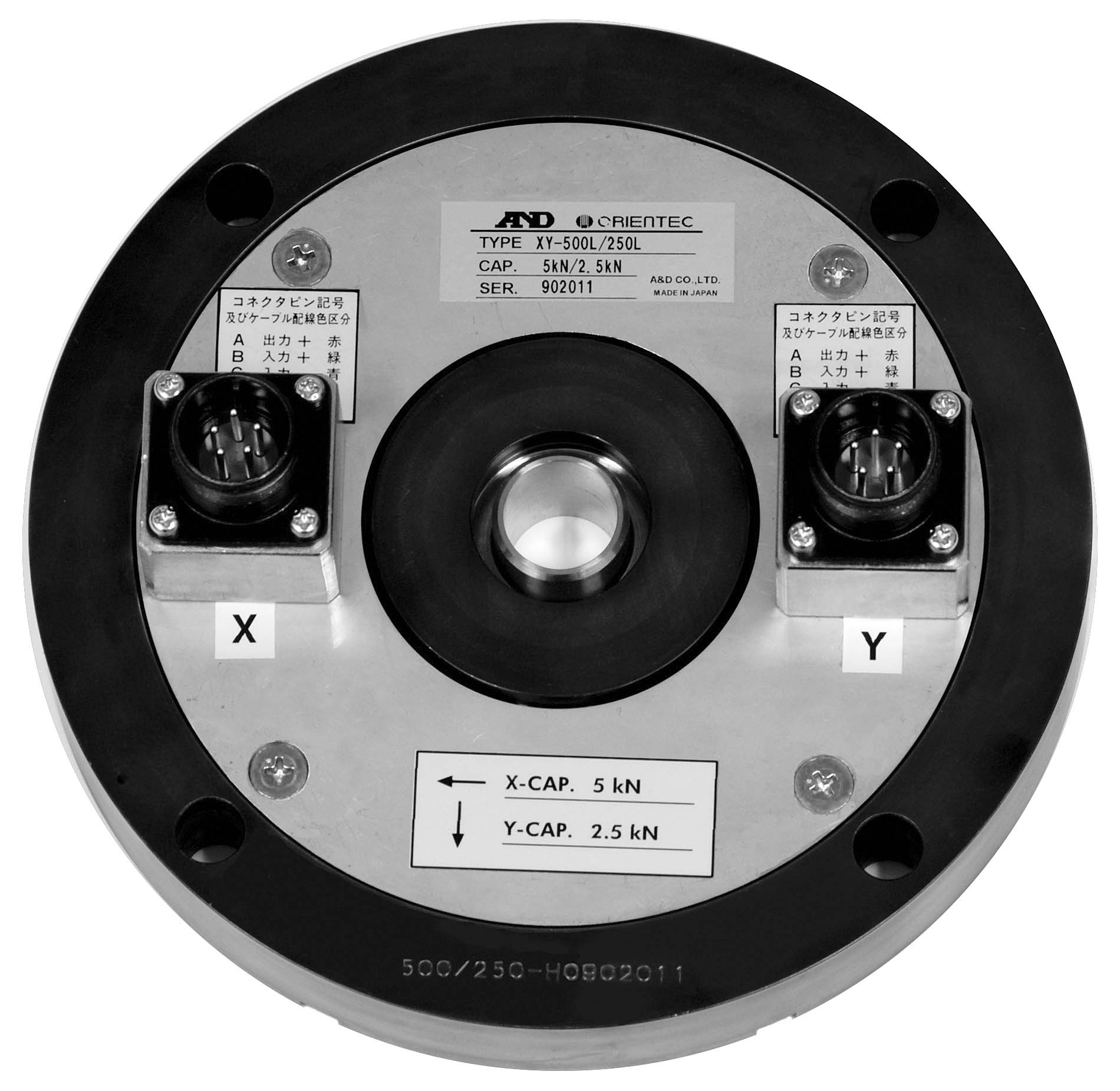

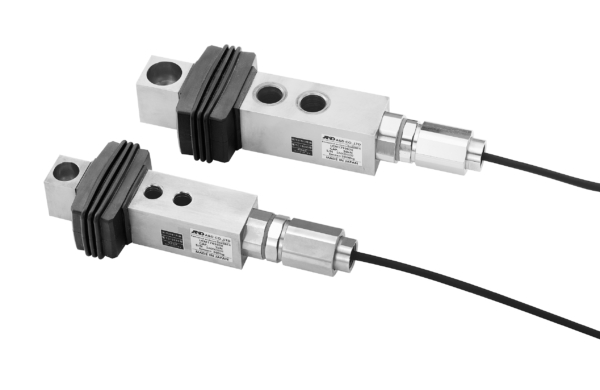

- Ideal for tire uniformity measurement, etc.
- Simultaneous measurement in the X and Y directions with one unit
- Structure designed for excellent toughness and durability
- Minimal mutual interference with simultaneous loading on the X and Y axes
Highlights
- Ideal for tire uniformity measurement, etc.
- Simultaneous measurement in the X and Y directions with one unit
- Structure designed for excellent toughness and durability
- Minimal mutual interference with simultaneous loading on the X and Y axes
Features
| Rated capacity (R.C.) | X-500 kg Y-250 kg (X:5 kN, Y:2.5 kN) X-750 kg Y-250 kg (X:7.5 kN, Y:2.5 kN) X-1000 kg Y-500 kg (X:10 kN, Y:5 kN) |
|
| Rated output (R.O.) | 2 mV/V ±1% (for X, Y) | |
| Non linearity | 0.1% R.O. | |
| Hysteresis | 0.05% R.O. | |
| Repeatability | 0.05% R.O. | |
| Recommended excitation voltage | 5 V to 10 V AC/DC | |
| Max. excitation voltage | 20 V AC/DC | |
| Zero balance | ± 1% R.O. | |
| Input terminals bridge resistance | 350 Ω ± 3.5 Ω | |
| Output terminals bridge resistance | 350 Ω ± 3.5 Ω | |
| Insulation resistance | 2000 MΩ (B/E DC 50 V) | |
| Cable diameter/length | φ7, 4-core shielded cable, 10 m, connector end | |
| Zero point temperature effect | 0.05% R.O./10 °C | |
| Temperature effect on output | 0.05% Load/10 °C | |
| Temperature compensated range | –10 °C to +70 °C | |
| Temperature usable range | –10 °C to +70 °C | |
| Safe overload | 150% R.L. | |
| Limited overload | 200% R.L. | |
| Dustproof/Waterproof | IP54 | |
| Natural frequency | More than 1 kHz | |
| Crosstalk | 2.5 N or less (5 kN / 2.5 kN) 5.0 N or less (7.5 kN /5 kN, 10 kN, / 2.5 kN, 5 kN / 5 kN) |
|
